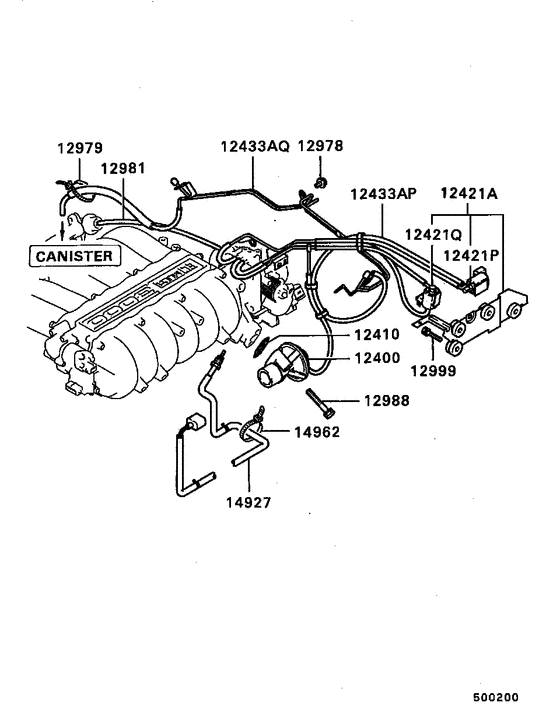

Emission control (-9505.3 DOHC) Diagram Mitsubishi 3000GT
- Year
- 1990 - 1996
- Sales region
- MMNA
- Note
- PREMIUM LINE(DOHC),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD153340
VALVE,EGR
|
MD153340 |
— | ||
|
12400
|
12400
MD169266
VALVE,EGR
|
MD169266 |
— | ||
|
12410
|
12410
MD153341
GASKET,EGR VALVE
|
MD153341 |
— | ||
|
12421A
|
12421A
MB925903
VALVE ASSY,EMISSION SOLENOID
|
MB925903 |
— | ||
|
12421A
|
12421A
MD147882
VALVE,EMISSION SOLENOID
|
MD147882 |
— | ||
|
12421A
|
12421A
MR224678
VALVE ASSY,EMISSION SOLENOID
|
MR224678 |
— | ||
|
12421A
|
12421A
MR266837
VALVE ASSY,EMISSION SOLENOID
|
MR266837 |
— | ||
|
12421P
|
12421P
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12421P
|
12421P
MR188756 VALVE, EMISSION SOLENOID |
MR188756 |
from US $68.68 |
||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421P
|
12421P
MR323103
VALVE,EMISSION SOLENOID
|
MR323103 |
— | ||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12421Q
|
12421Q
MR127520 VALVE, EMISSION SOLENOID |
MR127520 |
from US $54.29 |
||
|
12421Q
|
12421Q
MR161746
VALVE,EMISSION SOLENOID
|
MR161746 |
— | ||
|
12433AP
|
12433AP
MD157825
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD157825 |
— | ||
|
12433AP
|
12433AP
MD192075
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD192075 |
— | ||
|
12433AP
|
12433AP
MR224166
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR224166 |
— | ||
|
12433AQ
|
12433AQ
MD157815 HOSE & PIPE ASSY, EMISSION CONTROL |
MD157815 |
US $73.26 |
||
|
12433AQ
|
12433AQ
MD192076
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD192076 |
— | ||
|
12433AQ
|
12433AQ
MR160257
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR160257 |
— | ||
|
12978
|
12978
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
12978
|
12978
MF140641 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140641 |
US $2.22 |
||
|
12978
|
12978
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
12978
|
12978
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
12999
|
12999
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $0.90 |
||
|
12999
|
12999
MS240287 BOLT, EMISSION SOLENOID VALVEWasher assembled,6x35 |
MS240287 |
US $2.07 |
||
|
14927
|
14927
MD163534
SENSOR,EXHAUST HIGH TEMPERATURE
|
MD163534 |
— | ||
|
14927
|
14927
MD305556
SENSOR,EXHAUST HIGH TEMPERATURE
|
MD305556 |
— | ||
|
14962
|
14962
MB084080 BAND, HOIST CONTROL LINKL=129.5 |
MB084080 |
US $2.96 |
