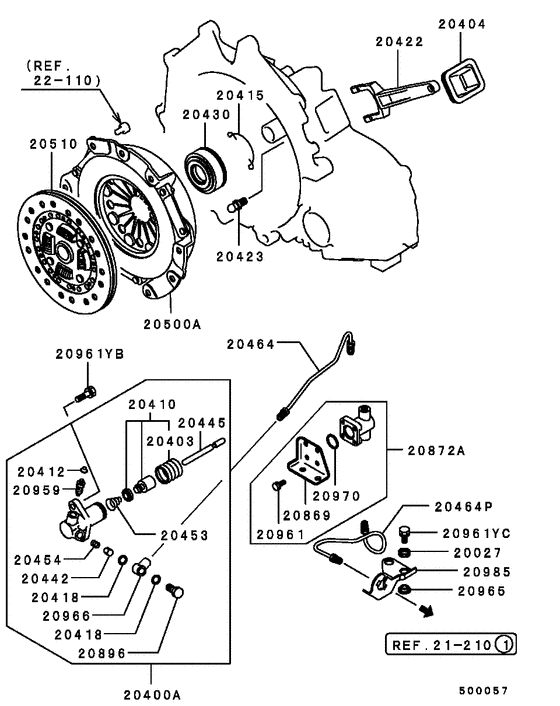

Clutch & clutch release (ALL) Diagram Mitsubishi 3000GT
- Year
- 1990 - 1999
- Sales region
- MMNA
- Note
- SPORTS LINE(DOHC),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- SPORTS LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20027
|
20027
MD724003 INSULATOR, CLUTCH FLUID TUBE BRACKET |
MD724003 |
US $5.06 |
||
|
20400A
|
20400A
MD728992 Cylinder Assy, Clutch Release |
MD728992 |
US $125.06 |
||
|
20400A
|
20400A
MD770482 Cylinder Assy, Clutch Release |
MD770482 |
US $119.88 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7.25 |
||
|
20404
|
20404
MD718077 BOOT, CLUTCH RELEASE FORK |
MD718077 |
from US $10.37 |
||
|
20410
|
20410
MD997786
CYLINDER KIT, CLUTCH RELEASE
|
MD997786 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.72 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $1.62 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.83 |
||
|
20422
|
20422
MD738709
FORK, CLUTCH RELEASE
|
MD738709 |
— | ||
| replacement | |||||
|
20422
|
20422
MD770511 FORK, CLUTCH RELEASE |
MD770511 |
US $146.38 |
||
|
20422
|
20422
MD770511 FORK, CLUTCH RELEASE |
MD770511 |
US $146.38 |
||
|
20423
|
20423
MD719602 FULCRUM, CLUTCH RELEASE FORK |
MD719602 |
from US $7.98 |
||
|
20430
|
20430
MD706180
BEARING, CLUTCH RELEASE
|
MD706180 |
— | ||
| replacement | |||||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20442
|
20442
MD621020 PLATE, CLUTCH RELEASE CYLINDER VALVE |
MD621020 |
US $6.22 |
||
|
20445
|
20445
MD620228 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD620228 |
US $12.28 |
||
|
20453
|
20453
MD603467 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD603467 |
US $3.28 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20454
|
20454
MD621022 SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE |
MD621022 |
from US $1.46 |
||
|
20464
|
20464
MD740916 TUBE,CLUTCH RELEASE CYLINDER |
MD740916 |
US $11.40 |
||
|
20464P
|
20464P
MD740917 TUBE,CLUTCH RELEASE CYLINDER |
MD740917 |
US $11.10 |
||
|
20500A
|
20500A
MD735195 COVER ASSY, CLUTCH |
MD735195 |
US $223.48 |
||
|
20500A
|
20500A
MD739223 COVER ASSY, CLUTCH |
MD739223 |
US $253.08 |
||
|
20510
|
20510
MD735647 DISC, CLUTCH225 |
MD735647 |
US $211.64 |
||
|
20510
|
20510
MD741289 DISC, CLUTCH225 |
MD741289 |
US $177.60 |
||
|
20510
|
20510
MD745934 DISC, CLUTCH225 |
MD745934 |
US $224.96 |
||
|
20869
|
20869
MD740918
BRACKET,CLUTCH CONTROL FLUID DAMPER
|
MD740918 |
— | ||
|
20872A
|
20872A
MD741416 DAMPER ASSY,CLUTCH CONTROL FLUID LINE |
MD741416 |
US $123.58 |
||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961
|
20961
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
20961YC
|
20961YC
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
20965
|
20965
MD724004 WASHER, M/T CLUTCH CONTROL EQUIP8.4 |
MD724004 |
US $3.56 |
||
|
20966
|
20966
MD621013
UNION, M/T CLUTCH CONTROL EQUIP
|
MD621013 |
— | ||
| replacement | |||||
|
20966
|
20966
2324A057 UNION, M/T CLUTCH CONTROL EQUIP |
2324A057 |
US $7.25 |
||
|
20970
|
20970
MD740778 O-RING, M/T CLUTCH CONTROL EQUIP19.80 |
MD740778 |
US $4.59 |
||
|
20985
|
20985
MD734719 BRACKET, M/T CLUTCH CONTROL EQUIP |
MD734719 |
US $22.94 |
||
|
