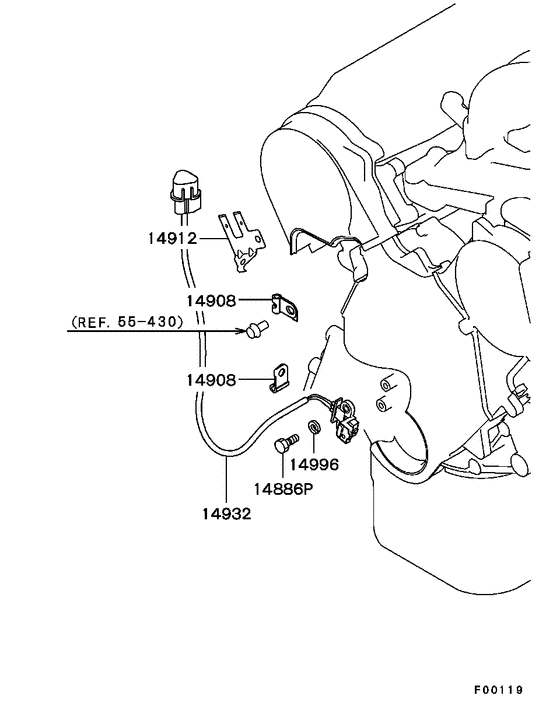

Electrical control (9610.2- SOHC (CRANK ANGLE SENSOR ETC.)) Diagram Mitsubishi 3000GT
- Year
- 1996 - 1999
- Sales region
- MMNA
- Note
- HIGH LINE(SOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14886P
|
14886P
MD182842
BOLT, CRANK ANGLE SENSOR
|
MD182842 |
— | ||
| replacement | |||||
|
14886P
|
14886P
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14908
|
14908
MD187189 CLAMP, CRANK ANGLE SENSOR |
MD187189 |
US $5.18 |
||
|
14912
|
14912
MD187068 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD187068 |
US $7.11 |
||
|
14912
|
14912
MD305151
BRACKET,OXYGEN SENSOR CONNECTOR
|
MD305151 |
— | ||
|
14932
|
14932
MD153464 SENSOR, ENG CRANK ANGLE |
MD153464 |
US $827.01 |
||
|
14932
|
14932
MD187066 SENSOR, ENG CRANK ANGLE |
MD187066 |
US $140.90 |
||
|
14932
|
14932
MD323484
SENSOR,ENG CRANK ANGLE
|
MD323484 |
— | ||
|
14996
|
14996
MD102178 WASHER, DISTRIBUTORPlain,8.5 |
MD102178 |
US $2.81 |
||
|
14996
|
14996
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
55 430
|
A/c condenser, piping
55 430
|
||||
|
55 430
|
A/c condenser, piping
55 430
|
||||
|
55 430
|
A/c condenser, piping
55 430
|
||||
|
55 430
|
A/c condenser, piping
55 430
|
||||
|
55 430
|
A/c condenser, piping
55 430
|
||||
