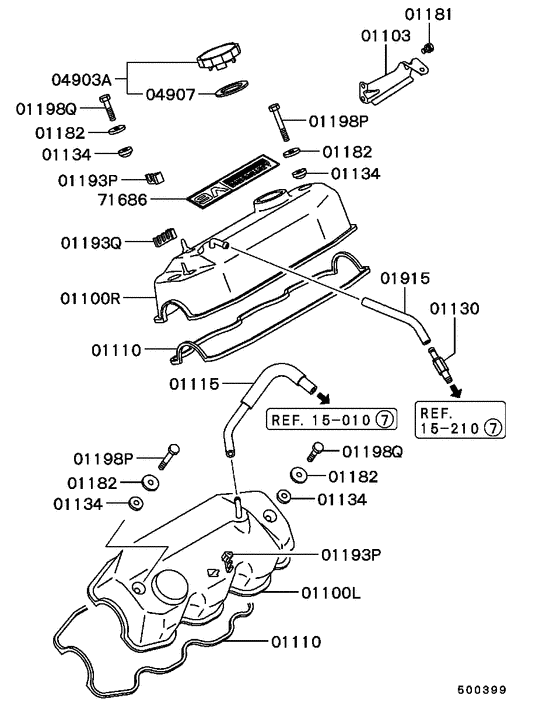

Rocker cover (SOHC) Diagram Mitsubishi 3000GT
- Year
- 1996 - 1999
- Sales region
- MMNA
- Note
- HIGH LINE(SOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01100L
|
01100L
MD156540 COVER, ROCKER, LH |
MD156540 |
US $198.32 |
||
|
01100L
|
01100L
MD347323
COVER,ROCKER,LH
|
MD347323 |
— | ||
|
01100R
|
01100R
MD323346 COVER, ROCKER, RH |
MD323346 |
US $198.32 |
||
|
01103
|
01103
MD154024 BRACKET, ROCKER COVER ACCEL CABLE |
MD154024 |
US $13.02 |
||
|
01103
|
01103
MD162182
BRACKET,ROCKER COVER FUEL HOSE
|
MD162182 |
— | ||
|
01110
|
01110
MD120091
GASKET, ROCKER COVER
|
MD120091 |
— | ||
| replacement | |||||
|
01110
|
01110
MD330989 GASKET, ROCKER COVER |
MD330989 |
from US $21.18 |
||
|
01110
|
01110
MD137051
GASKET, ROCKER COVER
|
MD137051 |
— | ||
| replacement | |||||
|
01110
|
01110
MD186786 GASKET, ROCKER COVER |
MD186786 |
from US $26.29 |
||
|
01110
|
01110
MD186786 GASKET, ROCKER COVER |
MD186786 |
from US $26.29 |
||
|
01110
|
01110
MD330989 GASKET, ROCKER COVER |
MD330989 |
from US $21.18 |
||
|
01115
|
01115
MD153061 HOSE, ROCKER COVER BREATHER |
MD153061 |
US $12.28 |
||
|
01115
|
01115
MD160244 HOSE, ROCKER COVER BREATHER |
MD160244 |
US $12.28 |
||
|
01115
|
01115
MD347324
HOSE,ROCKER COVER BREATHER
|
MD347324 |
— | ||
|
01130
|
01130
MD147679 VALVE, PCV |
MD147679 |
US $59.51 |
||
|
01130
|
01130
MD152772 VALVE, PCV |
MD152772 |
from US $44.99 |
||
|
01134
|
01134
MD000523 SEAL, ROCKER COVER BOLT |
MD000523 |
from US $1.01 |
||
|
01181
|
01181
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
01181
|
01181
MF241222 BOLT, ROCKER COVERWasher assembled,6x10 |
MF241222 |
from US $1.40 |
||
|
01182
|
01182
MD085089 WASHER, ROCKER COVER8.5 |
MD085089 |
from US $1.42 |
||
|
01193P
|
01193P
MD097072 CLAMP, ROCKER COVER |
MD097072 |
US $13.27 |
||
|
01193Q
|
01193Q
MD017652 CLAMP, ROCKER COVER |
MD017652 |
US $2.05 |
||
|
01198P
|
01198P
MF103966
BOLT, ROCKER COVER
|
MF103966 |
— | ||
|
01198Q
|
01198Q
MF103961 BOLT, ROCKER COVER8x35 |
MF103961 |
US $3.83 |
||
|
01915
|
01915
MD147562 HOSE, ROCKER COVER PCV |
MD147562 |
US $7.80 |
||
|
01915
|
01915
MD151892 HOSE, ROCKER COVER PCV |
MD151892 |
US $13.13 |
||
|
04903A
|
04903A
MD132260
CAP ASSY, ENG OIL FILLER
|
MD132260 |
— | ||
| replacement | |||||
|
04903A
|
04903A
1250A015 CAP ASSY, ENG OIL FILLER |
1250A015 |
from US $12.13 |
||
|
04907
|
04907
MD103148
GASKET, ENG OIL FILLER CAP
|
MD103148 |
— | ||
| replacement | |||||
|
04907
|
04907
MD311638 GASKET, ENG OIL FILLER CAP |
MD311638 |
from US $1.50 |
||
|
71686
|
71686
MD309058 LABEL, ROCKER COVER MARK |
MD309058 |
US $4.88 |
||
|
