Component List 3000GT
A/t case (ALL (EQUIPMENT PARTS OF T/M CASE))

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
26117	26117 MD734939 COVER, A/T CASE END CLUTCH	MD734939	US $107.30
26117	26117 MD736902 COVER, A/T CASE END CLUTCH	MD736902	US $116.92
26123	26123 MD738062 TUBE, A/T OIL FILLER...	MD738062	US $48.84
26123	26123 MD754303 TUBE, A/T OIL FILLER...	MD754303	US $40.70
26147	26147 MD733426 ROD, A/T CASE ANCHOR	MD733426	US $13.62
26151	26151 MD737058 ROD, A/T PARKING PAWL	MD737058	US $30.34
26163	26163 MD735117 SUPPORT, A/T PARKING PAWL ROD	MD735117	US $51.80
26210	26210 MD707198 PLUG KIT, A/T CASE	MD707198	US $5.48
26232A	26232A MD740843 RETAINER ASSY, A/T CASE DIFF BEARING	MD740843	US $232.36
26232A	26232A MD752794 RETAINER ASSY, A/T CASE DIFF BEARING	MD752794	US $230.88
26234	26234 MD750527 BRACKET, A/T CASE MOUNTING, UPR	MD750527	US $125.06
26234	26234 MD755576 BRACKET, A/T CASE MOUNTING, UPR	MD755576	US $140.60
26234	26234 MD757415 BRACKET, A/T CASE MOUNTING, UPR	MD757415	US $145.78
26235	26235 MD739454 BRACKET, A/T CASE MOUNTING, LWR	MD739454	US $75.48
26236	26236 MD740732 COVER, A/T CASE DIFF DRIVE GEAR	MD740732	US $106.56
26237	26237 MD733751 COVER, A/T CASE IDLER GEAR	MD733751	US $24.42
26239	26239 MD733752 GASKET, A/T CASE IDLER GEAR COVER	MD733752	US $6.81
26239	26239 MD739242 GASKET, A/T CASE IDLER GEAR COVER	MD739242	US $10.95
26241	26241 MD733740 PLUG KIT, A/T CASE AIR EXHAUST	MD733740	US $36.26
26244	26244 MD740841 RETAINER, A/T OUTPUT SHAFT BEARING	MD740841	US $94.72
26286PC	26286PC MD707200 O-RING, OIL FILTER	MD707200	—
	replacement
26286PC	26286PC MR486844 O-RING, A/T CASE 9.8	MR486844	from US $1.25
26286PD	26286PD MD707187 O-RING, A/T CASE	MD707187	—
	replacement
26286PD	26286PD 2502A002 PLUG KIT, A/T CASE	2502A002	US $2.46
26286PE	26286PE MD733676 O-RING, A/T CASE 13.5	MD733676	US $4.24
26286ZB	26286ZB MD733218 O-RING, A/T CASE 146	MD733218	US $12.28
26286ZC	26286ZC MD731179 O-RING, A/T CASE 100.4	MD731179	US $6.07
26286ZD	26286ZD MD733483 O-RING, A/T CASE 109.6	MD733483	US $7.84
26286ZE	26286ZE MD740733 O-RING, A/T CASE	MD740733	US $13.47
26289	26289 MD000312 GASKET, PLUG D=18.2	MD000312	from US $1.31
26291	26291 MD707199 JOINT, A/T CASE	MD707199	US $10.21
	replacement
26291	26291 2502A007 JOINT, A/T CASE	2502A007	US $6.66
26292	26292 MD733589 CLAMP, A/T CASE	MD733589	US $5.62
26292	26292 MD755036 CLAMP, A/T CASE	MD755036	US $5.62
26297SB	26297SB MF140206 BOLT, CYLINDER HEAD Flange,6x18	MF140206	from US $0.78
26297SC	26297SC MF241824 BOLT, ROCKER COVER Washer assembled,6x14	MF241824	US $2.22
26297YC	26297YC MD734702 BOLT, A/T CASE	MD734702	—
26297YF	26297YF MF140225 BOLT, ENG WATER COOLER Flange,8x20	MF140225	from US $0.98
26297YG	26297YG MF140202 BOLT, FLANGE (6x10) Flange,6x10	MF140202	from US $1.66
26297ZB	26297ZB MF241308 BOLT, A/T CASE Washer assembled,12x28	MF241308	from US $2.55
26297ZC	26297ZC MF140259 BOLT, SECONDARY AIR SUPPLY Flange,10x22	MF140259	from US $1.11
26299PC	26299PC MB001293 PLUG, M/T CASE	MB001293	—
	replacement
26299PC	26299PC MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
26299PD	26299PD MD733766 PLUG, A/T CASE 20.5	MD733766	US $5.77
26299PE	26299PE MD736481 PLUG, A/T CASE Taper	MD736481	US $9.18
26303	26303 MD739443 GAUGE,A/T OIL LEVEL	MD739443	US $39.22
26303	26303 MD751370 GAUGE,A/T OIL LEVEL	MD751370	—
26303	26303 MD754304 GAUGE,A/T OIL LEVEL	MD754304	—
26397	26397 MS660158 CLIP, FUEL TANK D=6.8	MS660158	US $2.60
26398	26398 MD955612 O-RING, T/M CONNECTING 12	MD955612	US $6.02
26399	26399 MF140223 BOLT, CYLINDER HEAD Flange,8x16	MF140223	from US $1.01
26400	26400 MD734149 LEVER, A/T MANUAL CONTROL	MD734149	US $22.94
26417	26417 MD737720 DETENT, A/T MANUAL CONTROL SHAFT	MD737720	US $16.28
26422	26422 MD738825 PULSE GENERATOR, A/T	MD738825	—
	replacement
26422	26422 MD751032 PULSE GENERATOR, A/T	MD751032	US $121.75
26422	26422 MD751032 PULSE GENERATOR, A/T	MD751032	US $121.75
26427	26427 MD737722 SHAFT, A/T MANUAL CONTROL LEVER	MD737722	US $73.26
26434	26434 MD728372 SWITCH, A/T CASE INHIBITOR	MD728372	—
26434	26434 MD753985 SWITCH, A/T CASE INHIBITOR	MD753985	—
26901	26901 MD740759 BRACKET, A/T CONTROL CABLE SUPPORT	MD740759	US $95.46
26901	26901 MD751559 BRACKET, A/T CONTROL CABLE SUPPORT	MD751559	US $62.16
26903	26903 MD731108 HOSE, A/T BREATHER	MD731108	US $6.51
26903	26903 MD738561 HOSE, A/T BREATHER	MD738561	US $4.59
26962	26962 MD707601 SET SCREW, A/T CONTROL EQUIP 8x11.3	MD707601	US $3.55
26963	26963 MF450406 WASHER Spring,10	MF450406	from US $0.41
26963P	26963P MF450006 WASHER, CYLINDER HEAD Plain,10	MF450006	from US $1.01
26969PC	26969PC MD726966 O-RING, A/T CONTROL EQUIP 8.2	MD726966	from US $1.29
26969PD	26969PD MD707200 O-RING, OIL FILTER	MD707200	—
	replacement
26969PD	26969PD MR486844 O-RING, A/T CASE 9.8	MR486844	from US $1.25
26971	26971 MF430006 NUT 10	MF430006	from US $1.35
26972	26972 MF660032 GASKET, ENG OIL LINE 8	MF660032	from US $1.29
26974PD	26974PD MD733499 CLAMP, A/T CONTROL EQUIP	MD733499	—
26975	26975 MS470361 CLIP, FUEL VAPOR CONTROL LINE 11	MS470361	US $2.07
26976SB	26976SB MF140205 BOLT, CYLINDER BLOCK Flange,6x16	MF140205	from US $0.82
26976SB	26976SB MF140206 BOLT, CYLINDER HEAD Flange,6x18	MF140206	from US $0.78
26976SC	26976SC MF140204 BOLT, ACCEL CABLE SUPPORT Flange,6x14	MF140204	from US $0.80
26976YB	26976YB MF140226 BOLT, ENG OIL PAN Flange,8x22	MF140226	from US $1.23
26976YC	26976YC MF140223 BOLT, CYLINDER HEAD Flange,8x16	MF140223	from US $1.01
27618	27618 MD730062 BEARING, A/T INPUT SHAFT, RR Ball,30	MD730062	US $22.20
27618	27618 MD736846 BEARING, A/T INPUT SHAFT, RR Ball,31	MD736846	US $76.22
27676	27676 MD734102 RETAINER, A/T T/F DRIVE SHAFT BEARING	MD734102	US $108.04
32268	32268 MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH	MD707184	from US $4.78
32268	32268 MD742053 OIL SEAL, T/M FR DIFF CASE	MD742053	—

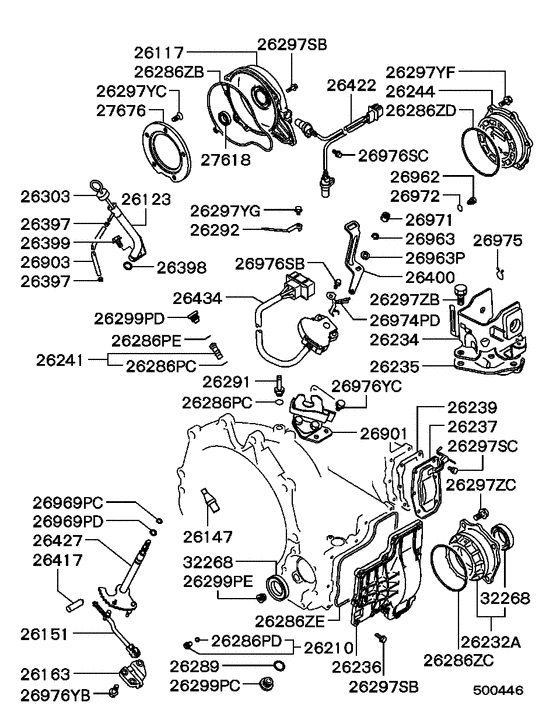

A/t case (ALL (EQUIPMENT PARTS OF T/M CASE)) Diagram Mitsubishi 3000GT EUR 1891759-166142

A/t case (ALL (EQUIPMENT PARTS OF T/M CASE)) Diagram Mitsubishi 3000GT EUR 1891759-166142
