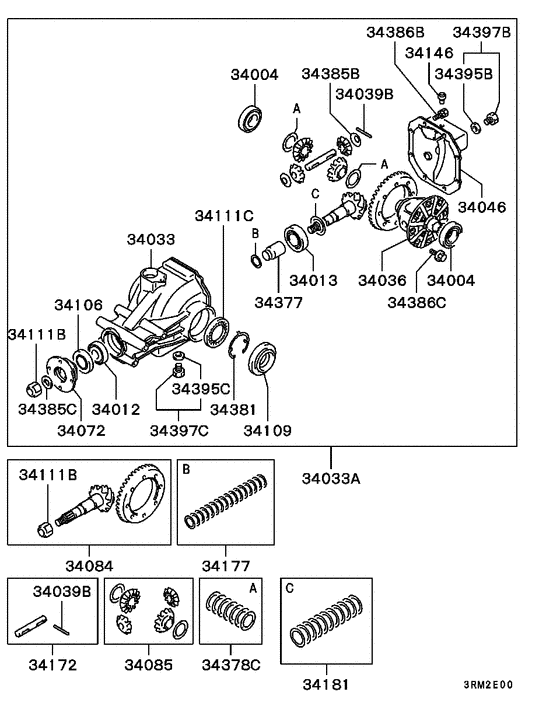

Rear axle differential (STD) Diagram Mitsubishi 3000GT
- Year
- -
- Sales region
- MMNA
- Note
- VR-4(DOHC-T,4WD),6FM/T FED
- drive
- 4WD/4WD
- transmission
- 6FM/T
- grade
- VR-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34004
|
34004
MB569926 BEARING, RR DIFF CASETaper roller,82.50x23.50-45.24 |
MB569926 |
US $28.80 |
||
|
34012
|
34012
MB290961 BEARING, FR DIFF DRIVE PINION, RRTaper roller |
MB290961 |
US $38.88 |
||
| replacement | |||||
|
34012
|
34012
MR377343 BEARING, FR DIFF DRIVE PINION, FRTaper rollar |
MR377343 |
from US $28.67 |
||
|
34013
|
34013
MB290960
BEARING, FR DIFF DRIVE PINION, FR
|
MB290960 |
— | ||
| replacement | |||||
|
34013
|
34013
MR430475 BEARING, FR DIFF DRIVE PINION, RRTaper rollar,76.20x28.57-36.51 |
MR430475 |
from US $36.67 |
||
|
34033
|
34033
MB569919 CARRIER, RR DIFF |
MB569919 |
US $613.44 |
||
|
34033A
|
34033A
MR179435
CARRIER ASSY,RR DIFF
|
MR179435 |
— | ||
|
34046
|
34046
MB569935
COVER, RR DIFF CARRIER
|
MB569935 |
— | ||
|
34072
|
34072
MB664296 FLANGE, RR DIFF COMPANION |
MB664296 |
US $123.12 |
||
|
34084
|
34084
MB185450 GEAR KIT,RR DIFF FINAL DRIVE |
MB185450 |
US $960.48 |
||
|
34106
|
34106
MB569924 OIL SEAL, RR DIFF DRIVE PINION |
MB569924 |
US $19.14 |
||
|
34109
|
34109
MB569925 OIL SEAL, RR DIFF SIDE BEARING |
MB569925 |
US $19.14 |
||
|
34111B
|
34111B
MA143517 NUT, PROPELLER SHAFTLock,18 |
MA143517 |
from US $4.69 |
||
|
34111C
|
34111C
MB569922 NUT, RR DIFF50 |
MB569922 |
US $10.66 |
||
|
34146
|
34146
MB393530 PLUG, RR DIFF |
MB393530 |
US $9.24 |
||
|
34177
|
34177
MB569391 SHIM SET, FR DIFF DRIVE PINION, FR |
MB569391 |
from US $35.59 |
||
|
34181
|
34181
MB185351 SHIM SET, FR DIFF DRIVE PINION, FR |
MB185351 |
US $37.62 |
||
|
34377
|
34377
MB092143 SPACER SET, FR DIFF46.67 |
MB092143 |
US $8.18 |
||
|
34377
|
34377
MB092144 SPACER SET, FR DIFF47.01 |
MB092144 |
US $8.32 |
||
|
34381
|
34381
MB569923 SNAP RING, RR DIFF |
MB569923 |
US $14.26 |
||
|
34385C
|
34385C
MT203641 WASHER, PROPELLER SHAFTPlain,18.5 |
MT203641 |
from US $4.71 |
||
|
34386B
|
34386B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.37 |
||
|
34386C
|
34386C
MB092221 BOLT, FR DIFFFlange,10x23.5 |
MB092221 |
US $2.77 |
||
|
34395B
|
34395B
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $1.29 |
||
|
34395C
|
34395C
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.22 |
||
|
34397B
|
34397B
MB001261 PLUG KIT, FR AXLE HOUSING |
MB001261 |
from US $3.38 |
||
|
34397C
|
34397C
MB569390 PLUG KIT, FR DIFF |
MB569390 |
from US $7.24 |
||
