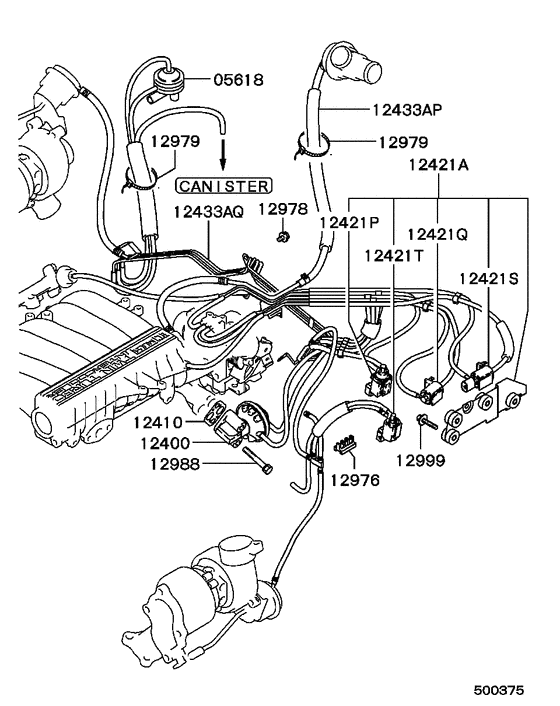

Emission control (ALL) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD011227
VALVE, PURGE CONTROL
|
MD011227 |
— | ||
|
12400
|
12400
MD164128
VALVE,EGR
|
MD164128 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.42 |
||
|
12421A
|
12421A
MB925904
VALVE ASSY,EMISSION SOLENOID
|
MB925904 |
— | ||
|
12421A
|
12421A
MR187935
VALVE ASSY,EMISSION SOLENOID
|
MR187935 |
— | ||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12421S
|
12421S
MD113721 VALVE, EMISSION SOLENOID |
MD113721 |
US $78.66 |
||
|
12421T
|
12421T
MD145201 VALVE, EMISSION SOLENOID |
MD145201 |
US $82.76 |
||
|
12433AP
|
12433AP
MD190665
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD190665 |
— | ||
|
12433AQ
|
12433AQ
MD189750
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD189750 |
— | ||
|
12976
|
12976
MD124899
CLAMP, SPARK PLUG CABLE
|
MD124899 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978
|
12978
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
12979
|
12979
MD129688 BAND, AIR CLEANER275 |
MD129688 |
US $7.25 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
