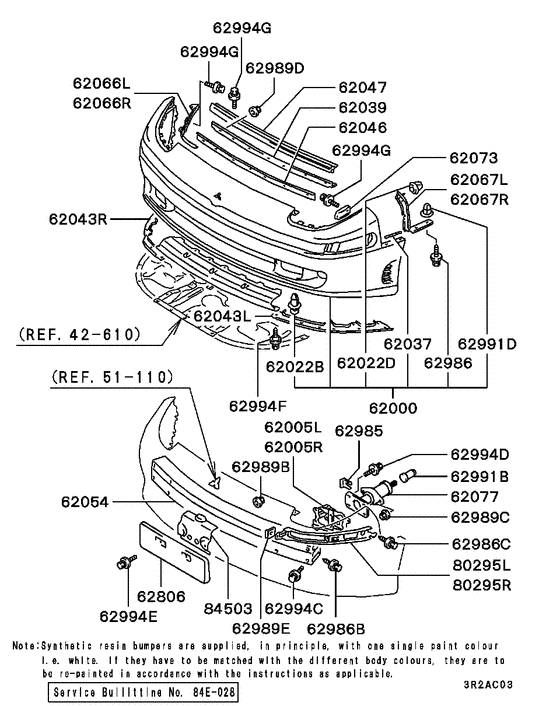

Front bumper & support (-'94MODEL) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MB912656
FACE KIT,FR BUMPER
|
MB912656 |
— | ||
|
62000
|
62000
MB912657
FACE KIT,FR BUMPER
|
MB912657 |
— | ||
|
62000
|
62000
MB959625
FACE KIT,FR BUMPER
|
MB959625 |
— | ||
|
62000
|
62000
MB959626
FACE KIT,FR BUMPER
|
MB959626 |
— | ||
|
62000
|
62000
MB959627
FACE KIT,FR BUMPER
|
MB959627 |
— | ||
|
62000
|
62000
MR124488
FACE KIT,FR BUMPER
|
MR124488 |
— | ||
|
62000
|
62000
MR162031
FACE KIT,FR BUMPER
|
MR162031 |
— | ||
|
62000
|
62000
MR162032
FACE KIT,FR BUMPER
|
MR162032 |
— | ||
|
62000
|
62000
MR162940
FACE KIT,FR BUMPER
|
MR162940 |
— | ||
|
62000
|
62000
MR162943
FACE KIT,FR BUMPER
|
MR162943 |
— | ||
|
62000
|
62000
MR162944
FACE KIT,FR BUMPER
|
MR162944 |
— | ||
|
62000
|
62000
MR162945
FACE KIT,FR BUMPER
|
MR162945 |
— | ||
|
62000
|
62000
MR179129
FACE KIT,FR BUMPER
|
MR179129 |
— | ||
|
62000
|
62000
MR179130
FACE KIT,FR BUMPER
|
MR179130 |
— | ||
|
62000
|
62000
MR208429
FACE KIT,FR BUMPER
|
MR208429 |
— | ||
|
62000
|
62000
MR208430
FACE KIT,FR BUMPER
|
MR208430 |
— | ||
|
62000
|
62000
MR273120
FACE KIT,FR BUMPER
|
MR273120 |
— | ||
|
62000
|
62000
MR296896
FACE KIT,FR BUMPER
|
MR296896 |
— | ||
|
62000
|
62000
MR376347
FACE KIT,FR BUMPER
|
MR376347 |
— | ||
|
62005L
|
62005L
MB640571 BRACKET, FR BUMPER STAY, LH |
MB640571 |
US $113.54 |
||
|
62005R
|
62005R
MB640572 BRACKET, FR BUMPER STAY, RH |
MB640572 |
US $102.12 |
||
|
62022B
|
62022B
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.48 |
||
|
62022D
|
62022D
MB153448 CLIP, HOOD AIR GARNISH4.6 |
MB153448 |
from US $1.21 |
||
|
62037
|
62037
MB344629
PAD, FR BUMPER FACE
|
MB344629 |
— | ||
|
62039
|
62039
MB640479
PLATE, FR BUMPER, CTR UPR
|
MB640479 |
— | ||
|
62039
|
62039
MB935107
PLATE, FR BUMPER, CTR UPR
|
MB935107 |
— | ||
|
62043L
|
62043L
MB641015
PLATE, FR BUMPER SIDE, LWR LH
|
MB641015 |
— | ||
|
62043L
|
62043L
MB935463 PLATE, FR BUMPER SIDE, LWR LH |
MB935463 |
US $32.15 |
||
|
62043R
|
62043R
MB641016
PLATE, FR BUMPER SIDE, LWR RH
|
MB641016 |
— | ||
|
62043R
|
62043R
MB935464 PLATE, FR BUMPER SIDE, LWR RH |
MB935464 |
US $32.15 |
||
|
62046
|
62046
MB640971
PLATE, FR BUMPER, UPR
|
MB640971 |
— | ||
|
62046
|
62046
MR153903
PLATE,FR BUMPER,UPR
|
MR153903 |
— | ||
|
62047
|
62047
MB640983
PROTECTOR, FR BUMPER
|
MB640983 |
— | ||
|
62047
|
62047
MB935458
PROTECTOR, FR BUMPER
|
MB935458 |
— | ||
|
62054
|
62054
MB640570 REINFORCEMENT, FR BUMPER |
MB640570 |
US $768.77 |
||
|
62054
|
62054
MR153900 REINFORCEMENT,FR BUMPER |
MR153900 |
US $768.77 |
||
|
62066L
|
62066L
MB640879
PLATE, FR BUMPER CORNER, LH
|
MB640879 |
— | ||
|
62066L
|
62066L
MR153901
PLATE,FR BUMPER CORNER,LH
|
MR153901 |
— | ||
|
62066R
|
62066R
MB640880
PLATE, FR BUMPER CORNER, RH
|
MB640880 |
— | ||
|
62066R
|
62066R
MR153902
PLATE,FR BUMPER CORNER,RH
|
MR153902 |
— | ||
|
62067L
|
62067L
MB640491 PLATE, FR BUMPER SIDE, LH |
MB640491 |
US $44.46 |
||
|
62067R
|
62067R
MB640492
PLATE, FR BUMPER SIDE, RH
|
MB640492 |
— | ||
|
62073
|
62073
MB866806 SUPPORT, FR BUMPER SIDE |
MB866806 |
US $8.34 |
||
|
62077
|
62077
MB574120 ABSORBER, FR BUMPER |
MB574120 |
US $253.08 |
||
|
62806
|
62806
MB888779
BRACKET,FR LICENSE PLATE
|
MB888779 |
— | ||
|
62985
|
62985
MB574119 SPACER, FR BUMPER1.0 |
MB574119 |
US $7.55 |
||
|
62986
|
62986
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62986B
|
62986B
MS450154 SCREW, STEERING WHEELTapping,4x16 |
MS450154 |
from US $2.81 |
||
|
62986C
|
62986C
MS200307 SCREW, ASSIST GRIPMachine flange,5x16 |
MS200307 |
US $2.60 |
||
|
62989B
|
62989B
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
62989C
|
62989C
MS440524 NUT, FUEL TANKWasher assembled,10 |
MS440524 |
US $2.46 |
||
|
62989D
|
62989D
MS440512 NUT, AIR SPOILERWasher assembled,6 |
MS440512 |
US $2.46 |
||
|
62989E
|
62989E
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
62991B
|
62991B
MB552833
GROMMET, FR BUMPER
|
MB552833 |
— | ||
|
62991D
|
62991D
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
62994C
|
62994C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
62994D
|
62994D
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
62994E
|
62994E
MS240601 BOLT, AIR CLEANERWasher assembled,6x16 |
MS240601 |
from US $1.38 |
||
|
62994F
|
62994F
MU140009 BOLT, FR BUMPERFlange,6x20 |
MU140009 |
from US $1.23 |
||
|
62994G
|
62994G
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
80295L
|
80295L
MB935827
BRACKET,FR COMBINATION LAMP,LH
|
MB935827 |
— | ||
|
80295R
|
80295R
MB935828
BRACKET,FR COMBINATION LAMP,RH
|
MB935828 |
— | ||
|
84503
|
84503
MB888781
BRACKET,HEADLAMP WASHER TANK,LWR
|
MB888781 |
— | ||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
51 110
|
Ornament,mark & emblem
51 110
|
||||
