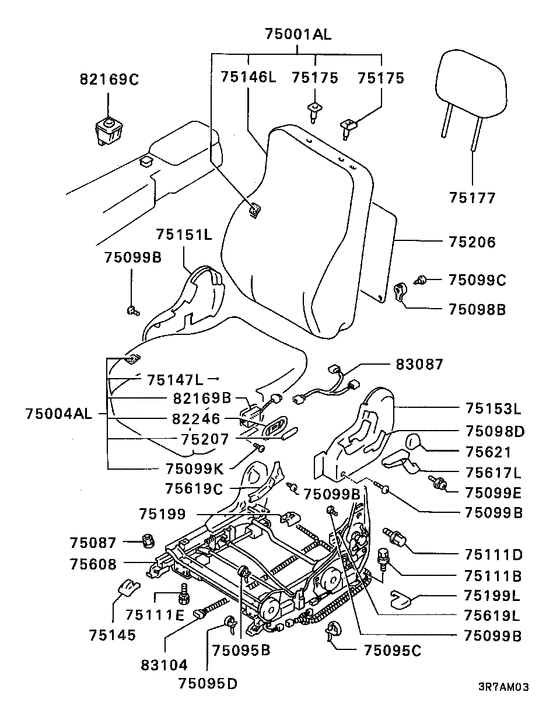

Front seat (LH..POWER) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MR615449
BACK ASSY,FR SEAT,LH
|
MR615449 |
— | ||
|
75001AL
|
75001AL
MR615453
BACK ASSY,FR SEAT,LH
|
MR615453 |
— | ||
|
75001AL
|
75001AL
MR705872
BACK ASSY,FR SEAT,LH
|
MR705872 |
— | ||
|
75001AL
|
75001AL
MR726583
BACK ASSY,FR SEAT,LH
|
MR726583 |
— | ||
|
75001AL
|
75001AL
MR740131
BACK ASSY,FR SEAT,LH
|
MR740131 |
— | ||
|
75001AL
|
75001AL
MR759257
BACK ASSY,FR SEAT,LH
|
MR759257 |
— | ||
|
75001AL
|
75001AL
MR759261
BACK ASSY,FR SEAT,LH
|
MR759261 |
— | ||
|
75001AL
|
75001AL
MR759265
BACK ASSY,FR SEAT,LH
|
MR759265 |
— | ||
|
75001AL
|
75001AL
MR760844
BACK ASSY,FR SEAT,LH
|
MR760844 |
— | ||
|
75004AL
|
75004AL
MR615441
CUSHION ASSY,FR SEAT,LH
|
MR615441 |
— | ||
|
75004AL
|
75004AL
MR615445
CUSHION ASSY,FR SEAT,LH
|
MR615445 |
— | ||
|
75004AL
|
75004AL
MR705864
CUSHION ASSY,FR SEAT,LH
|
MR705864 |
— | ||
|
75004AL
|
75004AL
MR726581
CUSHION ASSY,FR SEAT,LH
|
MR726581 |
— | ||
|
75004AL
|
75004AL
MR740127
CUSHION ASSY,FR SEAT,LH
|
MR740127 |
— | ||
|
75004AL
|
75004AL
MR752073
CUSHION ASSY,FR SEAT,LH
|
MR752073 |
— | ||
|
75004AL
|
75004AL
MR752075
CUSHION ASSY,FR SEAT,LH
|
MR752075 |
— | ||
|
75004AL
|
75004AL
MR759253
CUSHION ASSY,FR SEAT,LH
|
MR759253 |
— | ||
|
75004AL
|
75004AL
MR760841
CUSHION ASSY,FR SEAT,LH
|
MR760841 |
— | ||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75095B
|
75095B
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
75095C
|
75095C
MB824668 BAND, FR SEAT |
MB824668 |
US $2.81 |
||
|
75095D
|
75095D
MB196675 BAND, GEARSHIFT LINKL=150 |
MB196675 |
US $2.37 |
||
|
75098B
|
75098B
MB225969 CAP, RR SEAT |
MB225969 |
US $2.87 |
||
|
75098B
|
75098B
MB766468 CAP, FR SEAT |
MB766468 |
US $1.78 |
||
|
75098B
|
75098B
MR758832
CAP,FR SEAT
|
MR758832 |
— | ||
|
75098D
|
75098D
MB786048
PLUG,FR SEAT
|
MB786048 |
— | ||
|
75098D
|
75098D
MR750038
PLUG,FR SEAT
|
MR750038 |
— | ||
|
75098D
|
75098D
MR750039
PLUG,FR SEAT
|
MR750039 |
— | ||
|
75099B
|
75099B
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $1.79 |
||
|
75099C
|
75099C
MF453737 SCREW, FR SEATTapping,4x25 |
MF453737 |
US $1.92 |
||
|
75099E
|
75099E
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
US $2.60 |
||
|
75099K
|
75099K
MF455375 SCREW, STEERING COLUMN COVERTapping,4x8 |
MF455375 |
US $2.60 |
||
|
75111B
|
75111B
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111D
|
75111D
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.86 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75145
|
75145
MB726461
COVER, FR SEAT ANCHOR
|
MB726461 |
— | ||
|
75145
|
75145
MB770102 COVER, FR SEAT ANCHOR |
MB770102 |
US $2.81 |
||
|
75146L
|
75146L
MR615471
COVER,FR SEAT BACK,LH
|
MR615471 |
— | ||
|
75146L
|
75146L
MR615475
COVER,FR SEAT BACK,LH
|
MR615475 |
— | ||
|
75146L
|
75146L
MR705880
COVER,FR SEAT BACK,LH
|
MR705880 |
— | ||
|
75146L
|
75146L
MR726589
COVER,FR SEAT BACK,LH
|
MR726589 |
— | ||
|
75146L
|
75146L
MR740139
COVER,FR SEAT BACK,LH
|
MR740139 |
— | ||
|
75146L
|
75146L
MR759273
COVER,FR SEAT BACK,LH
|
MR759273 |
— | ||
|
75146L
|
75146L
MR759277
COVER,FR SEAT BACK,LH
|
MR759277 |
— | ||
|
75146L
|
75146L
MR759281
COVER,FR SEAT BACK,LH
|
MR759281 |
— | ||
|
75146L
|
75146L
MR760852
COVER,FR SEAT BACK,LH
|
MR760852 |
— | ||
|
75147L
|
75147L
MB967931
COVER,FR SEAT CUSHION,LH
|
MB967931 |
— | ||
|
75147L
|
75147L
MR615467
COVER,FR SEAT CUSHION,LH
|
MR615467 |
— | ||
|
75147L
|
75147L
MR724719
COVER,FR SEAT CUSHION,LH
|
MR724719 |
— | ||
|
75147L
|
75147L
MR740135
COVER,FR SEAT CUSHION,LH
|
MR740135 |
— | ||
|
75147L
|
75147L
MR750085
COVER,FR SEAT CUSHION,LH
|
MR750085 |
— | ||
|
75147L
|
75147L
MR750093
COVER,FR SEAT CUSHION,LH
|
MR750093 |
— | ||
|
75147L
|
75147L
MR750094
COVER,FR SEAT CUSHION,LH
|
MR750094 |
— | ||
|
75147L
|
75147L
MR759269
COVER,FR SEAT CUSHION,LH
|
MR759269 |
— | ||
|
75147L
|
75147L
MR779419
COVER,FR SEAT CUSHION,LH
|
MR779419 |
— | ||
|
75151L
|
75151L
MB786046 COVER, FR SEAT RECLINING ADJUSTER, LH |
MB786046 |
US $34.04 |
||
|
75151L
|
75151L
MR750034 COVER, FR SEAT RECLINING ADJUSTER, LH |
MR750034 |
US $31.08 |
||
|
75151L
|
75151L
MR750035
COVER,FR SEAT RECLINING ADJUSTER,LH
|
MR750035 |
— | ||
|
75153L
|
75153L
MB967925
COVER,FR SEAT SIDE SHIELD,LH
|
MB967925 |
— | ||
|
75153L
|
75153L
MR750048
COVER,FR SEAT SIDE SHIELD,LH
|
MR750048 |
— | ||
|
75153L
|
75153L
MR750049
COVER,FR SEAT SIDE SHIELD,LH
|
MR750049 |
— | ||
|
75175
|
75175
MB785957
GUIDE, FR SEAT HEADREST
|
MB785957 |
— | ||
|
75175
|
75175
MB785958
GUIDE, FR SEAT HEADREST
|
MB785958 |
— | ||
|
75175
|
75175
MR741320 GUIDE, FR SEAT HEADRESTW/lock |
MR741320 |
US $11.40 |
||
|
75175
|
75175
MR741321 GUIDE, FR SEAT HEADRESTW/o lock |
MR741321 |
US $11.40 |
||
|
75175
|
75175
MR749960 GUIDE, FR SEAT HEADRESTW/lock |
MR749960 |
US $11.40 |
||
|
75175
|
75175
MR749961 GUIDE, FR SEAT HEADRESTW/o lock |
MR749961 |
US $11.40 |
||
|
75177
|
75177
MB785721 HEADREST, FR SEATLea/lea |
MB785721 |
US $688.69 |
||
|
75177
|
75177
MR724664 HEADREST, FR SEATClo |
MR724664 |
US $722.18 |
||
|
75177
|
75177
MR750200 HEADREST, FR SEATClo |
MR750200 |
US $269.36 |
||
|
75177
|
75177
MR750204
HEADREST,FR SEAT
|
MR750204 |
— | ||
|
75177
|
75177
MR750205 HEADREST, FR SEAT |
MR750205 |
US $524.16 |
||
|
75199
|
75199
MB726462
COVER, FR SEAT ANCHOR, RR
|
MB726462 |
— | ||
|
75199
|
75199
MB770103 COVER, FR SEAT ANCHOR, RR |
MB770103 |
US $2.81 |
||
|
75199L
|
75199L
MB770115 COVER, FR SEAT ANCHOR, RR LH |
MB770115 |
US $5.03 |
||
|
75199L
|
75199L
MR750196
COVER, FR SEAT ANCHOR, RR LH
|
MR750196 |
— | ||
|
75206
|
75206
MB786050 PANEL, FR SEAT BACKVnl |
MB786050 |
US $198.32 |
||
|
75206
|
75206
MR724703 PANEL, FR SEAT BACKClo |
MR724703 |
US $144.30 |
||
|
75206
|
75206
MR750050 PANEL, FR SEAT BACK |
MR750050 |
US $139.12 |
||
|
75206
|
75206
MR750051
PANEL,FR SEAT BACK
|
MR750051 |
— | ||
|
75206
|
75206
MR750052 PANEL, FR SEAT BACK |
MR750052 |
US $139.12 |
||
|
75207
|
75207
MB915782 LEVER, FR SEAT |
MB915782 |
US $12.58 |
||
|
75207
|
75207
MR750128 LEVER, FR SEAT |
MR750128 |
US $12.58 |
||
|
75207
|
75207
MR755851
LEVER,FR SEAT
|
MR755851 |
— | ||
|
75608
|
75608
MB940000
ADJUSTER,FR SEAT SLIDE
|
MB940000 |
— | ||
|
75608
|
75608
MR279011
ADJUSTER,FR POWER SEAT
|
MR279011 |
— | ||
|
75608
|
75608
MR615465
ADJUSTER,FR POWER SEAT
|
MR615465 |
— | ||
|
75617L
|
75617L
MB725069
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MB725069 |
— | ||
|
75617L
|
75617L
MB785948
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MB785948 |
— | ||
|
75617L
|
75617L
MR769094
KNOB,FR SEAT RECLINING ADJUSTER,LH
|
MR769094 |
— | ||
|
75619C
|
75619C
MB967923 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MB967923 |
US $14.06 |
||
|
75619C
|
75619C
MR750044 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR750044 |
US $14.80 |
||
|
75619C
|
75619C
MR750045
COVER,FR SEAT RECLINING ADJUSTER,LWR
|
MR750045 |
— | ||
|
75619L
|
75619L
MB786042
COVER,FR SEAT RECLINING ADJUSTER,LWR LH
|
MB786042 |
— | ||
|
75619L
|
75619L
MR750028
COVER,FR SEAT RECLINING ADJUSTER,LWR LH
|
MR750028 |
— | ||
|
75619L
|
75619L
MR750029
COVER,FR SEAT RECLINING ADJUSTER,LWR LH
|
MR750029 |
— | ||
|
75621
|
75621
MB786059
KNOB,FR SEAT RECLINING ADJUSTER MEMORY
|
MB786059 |
— | ||
|
75621
|
75621
MR601698
KNOB,FR SEAT RECLINING ADJUSTER MEMORY
|
MR601698 |
— | ||
|
75621
|
75621
MR750060
KNOB, FR SEAT RECLINING ADJUSTER MEMORY
|
MR750060 |
— | ||
|
82169B
|
82169B
MB850202 SWITCH, FR POWER SEAT |
MB850202 |
US $129.50 |
||
|
82169C
|
82169C
MB695060
SWITCH, FR POWER SEAT
|
MB695060 |
— | ||
|
82246
|
82246
MB915783 GARNISH, FR POWER SEAT SWITCH |
MB915783 |
US $13.02 |
||
|
82246
|
82246
MR750129 GARNISH, FR POWER SEAT SWITCH |
MR750129 |
US $13.02 |
||
|
82246
|
82246
MR755852
GARNISH,FR POWER SEAT SWITCH
|
MR755852 |
— | ||
|
83087
|
83087
MR177007
HARNESS,SEAT HEATER
|
MR177007 |
— | ||
|
83104
|
83104
MB850188
HARNESS,FR POWER SEAT
|
MB850188 |
— |
