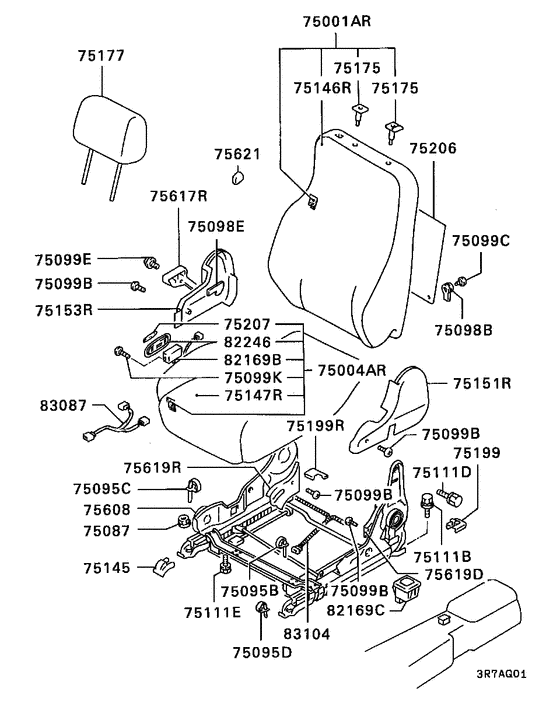

Front seat (RH..POWER) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR615450
BACK ASSY,FR SEAT,RH
|
MR615450 |
— | ||
|
75001AR
|
75001AR
MR615454
BACK ASSY,FR SEAT,RH
|
MR615454 |
— | ||
|
75001AR
|
75001AR
MR705873
BACK ASSY,FR SEAT,RH
|
MR705873 |
— | ||
|
75001AR
|
75001AR
MR726584
BACK ASSY,FR SEAT,RH
|
MR726584 |
— | ||
|
75001AR
|
75001AR
MR740132
BACK ASSY,FR SEAT,RH
|
MR740132 |
— | ||
|
75001AR
|
75001AR
MR759258
BACK ASSY,FR SEAT,RH
|
MR759258 |
— | ||
|
75001AR
|
75001AR
MR759262
BACK ASSY,FR SEAT,RH
|
MR759262 |
— | ||
|
75001AR
|
75001AR
MR759266
BACK ASSY,FR SEAT,RH
|
MR759266 |
— | ||
|
75001AR
|
75001AR
MR760845
BACK ASSY,FR SEAT,RH
|
MR760845 |
— | ||
|
75004AR
|
75004AR
MR615442
CUSHION ASSY,FR SEAT,RH
|
MR615442 |
— | ||
|
75004AR
|
75004AR
MR615446
CUSHION ASSY,FR SEAT,RH
|
MR615446 |
— | ||
|
75004AR
|
75004AR
MR705865
CUSHION ASSY,FR SEAT,RH
|
MR705865 |
— | ||
|
75004AR
|
75004AR
MR726582
CUSHION ASSY,FR SEAT,RH
|
MR726582 |
— | ||
|
75004AR
|
75004AR
MR740128
CUSHION ASSY,FR SEAT,RH
|
MR740128 |
— | ||
|
75004AR
|
75004AR
MR752074
CUSHION ASSY,FR SEAT,RH
|
MR752074 |
— | ||
|
75004AR
|
75004AR
MR752076
CUSHION ASSY,FR SEAT,RH
|
MR752076 |
— | ||
|
75004AR
|
75004AR
MR759254
CUSHION ASSY,FR SEAT,RH
|
MR759254 |
— | ||
|
75004AR
|
75004AR
MR760842
CUSHION ASSY,FR SEAT,RH
|
MR760842 |
— | ||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75095B
|
75095B
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
75095C
|
75095C
MB824668 BAND, FR SEAT |
MB824668 |
US $2.81 |
||
|
75095D
|
75095D
MB196675 BAND, GEARSHIFT LINKL=150 |
MB196675 |
US $2.37 |
||
|
75098B
|
75098B
MB225969 CAP, RR SEAT |
MB225969 |
US $2.87 |
||
|
75098B
|
75098B
MB766468 CAP, FR SEAT |
MB766468 |
US $1.78 |
||
|
75098B
|
75098B
MR758832
CAP,FR SEAT
|
MR758832 |
— | ||
|
75098E
|
75098E
MB786049
PLUG,FR SEAT
|
MB786049 |
— | ||
|
75098E
|
75098E
MR750040
PLUG,FR SEAT
|
MR750040 |
— | ||
|
75098E
|
75098E
MR750041
PLUG,FR SEAT
|
MR750041 |
— | ||
|
75099B
|
75099B
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $1.79 |
||
|
75099C
|
75099C
MF453737 SCREW, FR SEATTapping,4x25 |
MF453737 |
US $1.92 |
||
|
75099E
|
75099E
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
US $2.60 |
||
|
75099K
|
75099K
MF455375 SCREW, STEERING COLUMN COVERTapping,4x8 |
MF455375 |
US $2.60 |
||
|
75111B
|
75111B
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111D
|
75111D
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.86 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75145
|
75145
MB726461
COVER, FR SEAT ANCHOR
|
MB726461 |
— | ||
|
75145
|
75145
MB770102 COVER, FR SEAT ANCHOR |
MB770102 |
US $2.81 |
||
|
75146R
|
75146R
MR615472
COVER,FR SEAT BACK,RH
|
MR615472 |
— | ||
|
75146R
|
75146R
MR615476
COVER,FR SEAT BACK,RH
|
MR615476 |
— | ||
|
75146R
|
75146R
MR705881
COVER,FR SEAT BACK,LH
|
MR705881 |
— | ||
|
75146R
|
75146R
MR726590
COVER,FR SEAT BACK,RH
|
MR726590 |
— | ||
|
75146R
|
75146R
MR740140
COVER,FR SEAT BACK,RH
|
MR740140 |
— | ||
|
75146R
|
75146R
MR759274
COVER,FR SEAT BACK,RH
|
MR759274 |
— | ||
|
75146R
|
75146R
MR759278
COVER,FR SEAT BACK,RH
|
MR759278 |
— | ||
|
75146R
|
75146R
MR759282
COVER,FR SEAT BACK,RH
|
MR759282 |
— | ||
|
75146R
|
75146R
MR760853
COVER,FR SEAT BACK,RH
|
MR760853 |
— | ||
|
75147R
|
75147R
MB786086
COVER,FR SEAT CUSHION,RH
|
MB786086 |
— | ||
|
75147R
|
75147R
MR615468
COVER,FR SEAT CUSHION,RH
|
MR615468 |
— | ||
|
75147R
|
75147R
MR724714
COVER,FR SEAT CUSHION,RH
|
MR724714 |
— | ||
|
75147R
|
75147R
MR740136
COVER,FR SEAT CUSHION,RH
|
MR740136 |
— | ||
|
75147R
|
75147R
MR750069
COVER,FR SEAT CUSHION,RH
|
MR750069 |
— | ||
|
75147R
|
75147R
MR750081
COVER,FR SEAT CUSHION,RH
|
MR750081 |
— | ||
|
75147R
|
75147R
MR750082
COVER,FR SEAT CUSHION,RH
|
MR750082 |
— | ||
|
75147R
|
75147R
MR759270
COVER,FR SEAT CUSHION,RH
|
MR759270 |
— | ||
|
75147R
|
75147R
MR779418
COVER,FR SEAT CUSHION,RH
|
MR779418 |
— | ||
|
75151R
|
75151R
MB786047 COVER, FR SEAT RECLINING ADJUSTER, RH |
MB786047 |
US $34.04 |
||
|
75151R
|
75151R
MR750036 COVER, FR SEAT RECLINING ADJUSTER, RH |
MR750036 |
US $31.08 |
||
|
75151R
|
75151R
MR750037
COVER,FR SEAT RECLINING ADJUSTER,RH
|
MR750037 |
— | ||
|
75153R
|
75153R
MB786044
COVER,FR SEAT SIDE SHIELD,RH
|
MB786044 |
— | ||
|
75153R
|
75153R
MR750032
COVER,FR SEAT SIDE SHIELD,RH
|
MR750032 |
— | ||
|
75153R
|
75153R
MR750033
COVER,FR SEAT SIDE SHIELD,RH
|
MR750033 |
— | ||
|
75175
|
75175
MB785957
GUIDE, FR SEAT HEADREST
|
MB785957 |
— | ||
|
75175
|
75175
MB785958
GUIDE, FR SEAT HEADREST
|
MB785958 |
— | ||
|
75175
|
75175
MR741320 GUIDE, FR SEAT HEADRESTW/lock |
MR741320 |
US $11.40 |
||
|
75175
|
75175
MR741321 GUIDE, FR SEAT HEADRESTW/o lock |
MR741321 |
US $11.40 |
||
|
75175
|
75175
MR749960 GUIDE, FR SEAT HEADRESTW/lock |
MR749960 |
US $11.40 |
||
|
75175
|
75175
MR749961 GUIDE, FR SEAT HEADRESTW/o lock |
MR749961 |
US $11.40 |
||
|
75177
|
75177
MB785721 HEADREST, FR SEATLea/lea |
MB785721 |
US $688.69 |
||
|
75177
|
75177
MR724664 HEADREST, FR SEATClo |
MR724664 |
US $722.18 |
||
|
75177
|
75177
MR750200 HEADREST, FR SEATClo |
MR750200 |
US $269.36 |
||
|
75177
|
75177
MR750204
HEADREST,FR SEAT
|
MR750204 |
— | ||
|
75177
|
75177
MR750205 HEADREST, FR SEAT |
MR750205 |
US $524.16 |
||
|
75199
|
75199
MB726462
COVER, FR SEAT ANCHOR, RR
|
MB726462 |
— | ||
|
75199
|
75199
MB770103 COVER, FR SEAT ANCHOR, RR |
MB770103 |
US $2.81 |
||
|
75199R
|
75199R
MB770116 COVER, FR SEAT ANCHOR, RR RH |
MB770116 |
US $5.03 |
||
|
75199R
|
75199R
MR750197
COVER, FR SEAT ANCHOR, RR RH
|
MR750197 |
— | ||
|
75206
|
75206
MB786050 PANEL, FR SEAT BACKVnl |
MB786050 |
US $198.32 |
||
|
75206
|
75206
MR724703 PANEL, FR SEAT BACKClo |
MR724703 |
US $144.30 |
||
|
75206
|
75206
MR750050 PANEL, FR SEAT BACK |
MR750050 |
US $139.12 |
||
|
75206
|
75206
MR750051
PANEL,FR SEAT BACK
|
MR750051 |
— | ||
|
75206
|
75206
MR750052 PANEL, FR SEAT BACK |
MR750052 |
US $139.12 |
||
|
75207
|
75207
MB915782 LEVER, FR SEAT |
MB915782 |
US $12.58 |
||
|
75207
|
75207
MR750128 LEVER, FR SEAT |
MR750128 |
US $12.58 |
||
|
75207
|
75207
MR755851
LEVER,FR SEAT
|
MR755851 |
— | ||
|
75608
|
75608
MB940000
ADJUSTER,FR SEAT SLIDE
|
MB940000 |
— | ||
|
75608
|
75608
MR279011
ADJUSTER,FR POWER SEAT
|
MR279011 |
— | ||
|
75608
|
75608
MR615465
ADJUSTER,FR POWER SEAT
|
MR615465 |
— | ||
|
75617R
|
75617R
MB725072 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB725072 |
US $9.58 |
||
|
75617R
|
75617R
MB785949 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB785949 |
US $8.44 |
||
|
75617R
|
75617R
MR769095
KNOB,FR SEAT RECLINING ADJUSTER,RH
|
MR769095 |
— | ||
|
75619D
|
75619D
MB967924 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MB967924 |
US $14.06 |
||
|
75619D
|
75619D
MR750046 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR750046 |
US $14.80 |
||
|
75619D
|
75619D
MR750047
COVER,FR SEAT RECLINING ADJUSTER,LWR
|
MR750047 |
— | ||
|
75621
|
75621
MB786059
KNOB,FR SEAT RECLINING ADJUSTER MEMORY
|
MB786059 |
— | ||
|
75621
|
75621
MR601698
KNOB,FR SEAT RECLINING ADJUSTER MEMORY
|
MR601698 |
— | ||
|
75621
|
75621
MR750060
KNOB, FR SEAT RECLINING ADJUSTER MEMORY
|
MR750060 |
— | ||
|
82169B
|
82169B
MB850202 SWITCH, FR POWER SEAT |
MB850202 |
US $129.50 |
||
|
82169C
|
82169C
MB695060
SWITCH, FR POWER SEAT
|
MB695060 |
— | ||
|
82246
|
82246
MB915783 GARNISH, FR POWER SEAT SWITCH |
MB915783 |
US $13.02 |
||
|
82246
|
82246
MR750129 GARNISH, FR POWER SEAT SWITCH |
MR750129 |
US $13.02 |
||
|
82246
|
82246
MR755852
GARNISH,FR POWER SEAT SWITCH
|
MR755852 |
— | ||
|
83087
|
83087
MR177007
HARNESS,SEAT HEATER
|
MR177007 |
— | ||
|
83104
|
83104
MB850188
HARNESS,FR POWER SEAT
|
MB850188 |
— |
