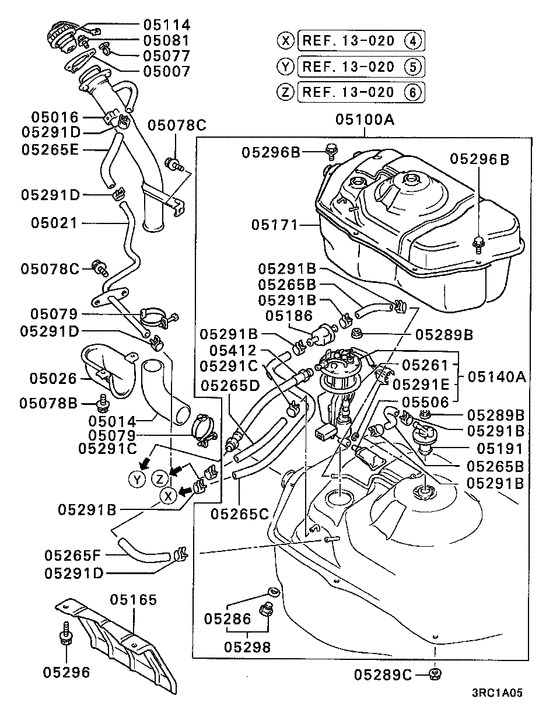

Fuel tank Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MB621813
HOSE, FUEL FILLER
|
MB621813 |
— | ||
|
05016
|
05016
MB621810
NECK,FUEL FILLER
|
MB621810 |
— | ||
|
05021
|
05021
MB621815
PIPE, FUEL FILLER
|
MB621815 |
— | ||
|
05026
|
05026
MB621817
PROTECTOR, FUEL FILLER HOSE
|
MB621817 |
— | ||
|
05078B
|
05078B
MS240038 BOLT, FUEL LINEWasher assembled,6x16 |
MS240038 |
US $2.46 |
||
|
05078C
|
05078C
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
05078C
|
05078C
MS240108
BOLT, STEERING COLUMN
|
MS240108 |
— | ||
|
05079
|
05079
MF661023 CLAMP, ENG BREATHERD=48 |
MF661023 |
from US $2.60 |
||
|
05081
|
05081
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05081
|
05081
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
US $4.51 |
||
|
05081
|
05081
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05100A
|
05100A
MB621791
FUEL TANK ASSY
|
MB621791 |
— | ||
|
05114
|
05114
MB825327 CAP, FUEL TANK |
MB825327 |
US $31.46 |
||
|
05114
|
05114
MR342330
CAP, FUEL TANK
|
MR342330 |
— | ||
| replacement | |||||
|
05114
|
05114
MN106160 CAP, FUEL TANK |
MN106160 |
from US $23.48 |
||
|
05140A
|
05140A
MB698858
PUMP & GAUGE ASSY, FUEL TANK
|
MB698858 |
— | ||
|
05165
|
05165
MB825330
PROTECTOR, FUEL TANK
|
MB825330 |
— | ||
|
05171
|
05171
MB621941
PROTECTOR, FUEL TANK, LWR
|
MB621941 |
— | ||
|
05186
|
05186
MB504075 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504075 |
US $36.25 |
||
|
05191
|
05191
MB595490
VALVE, FUEL TANK SAFETY
|
MB595490 |
— | ||
| replacement | |||||
|
05191
|
05191
MR526922 VALVE, FUEL TANK SAFETY |
MR526922 |
from US $51.05 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.77 |
||
|
05265B
|
05265B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265C
|
05265C
MB678459 HOSE, FUEL TANK |
MB678459 |
US $12.73 |
||
|
05265D
|
05265D
MS605996
HOSE, FUEL TANK
|
MS605996 |
— | ||
| replacement | |||||
|
05265D
|
05265D
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05265D
|
05265D
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05265E
|
05265E
MB621814
HOSE, FUEL TANK
|
MB621814 |
— | ||
|
05265F
|
05265F
MB554399
HOSE, FUEL TANK
|
MB554399 |
— | ||
|
05286
|
05286
MB329078 GASKET, FUEL TANK8 |
MB329078 |
US $4.65 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
05291B
|
05291B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291C
|
05291C
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291D
|
05291D
MS660168 CLIP, ROCKER COVERD=17.8 |
MS660168 |
from US $1.74 |
||
|
05291E
|
05291E
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05296
|
05296
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
05296B
|
05296B
MF247249 BOLTWasher assembled,8x16 |
MF247249 |
from US $1.72 |
||
|
05298
|
05298
MB527239 PLUG, FUEL TANK8 |
MB527239 |
from US $8.64 |
||
|
05412
|
05412
MB433988
HOSE, FUEL FILTER HIGH PRESSURE
|
MB433988 |
— | ||
| replacement | |||||
|
05412
|
05412
MR161794 HOSE, FUEL HIGH PRESSURE |
MR161794 |
US $84.82 |
||
|
05506
|
05506
MB400814 FILTER, FUEL PUMP |
MB400814 |
US $75.48 |
||
|
