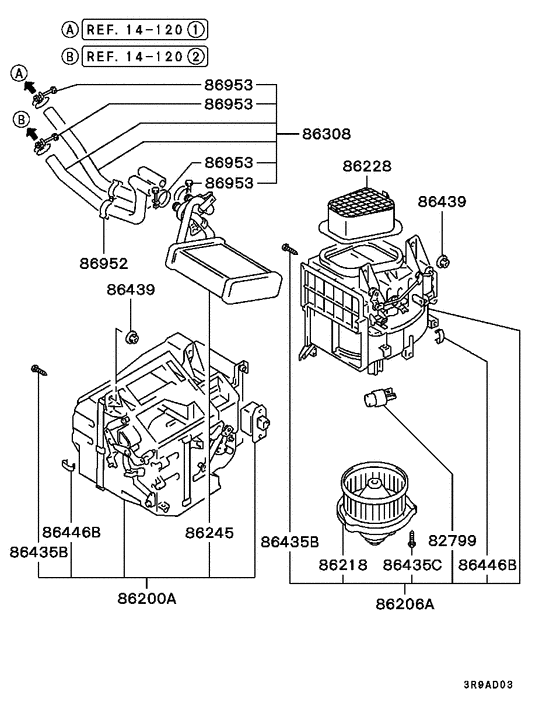

Heater unit & piping (HEATER UNIT & PIPING) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82799
|
82799
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
86200A
|
86200A
MB813154
HEATER ASSY
|
MB813154 |
— | ||
|
86206A
|
86206A
MB657836
BLOWER ASSY,HEATER
|
MB657836 |
— | ||
|
86206A
|
86206A
MR360394
BLOWER ASSY,HEATER
|
MR360394 |
— | ||
|
86218
|
86218
MB657230
FAN & MOTOR KIT, HEATER
|
MB657230 |
— | ||
|
86228
|
86228
MB813262 GUIDE, HEATER BLOWER AIR |
MB813262 |
US $17.76 |
||
|
86245
|
86245
MB657227
CORE,HEATER
|
MB657227 |
— | ||
|
86308
|
86308
MB698901 HOSE KIT, HEATER WATER |
MB698901 |
US $52.67 |
||
|
86435B
|
86435B
MF205026 SCREW, TAILGATE LOCKINGMachine cone point,5x16 |
MF205026 |
US $2.07 |
||
|
86435C
|
86435C
MF205004 SCREW, HEATERMachine cone point,4x16 |
MF205004 |
US $1.63 |
||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86446B
|
86446B
MB081308
CLIP, RR HEATER
|
MB081308 |
— | ||
|
86952
|
86952
MS470478 CLIP, HEATER PIPING22.5-22.5 |
MS470478 |
US $5.62 |
||
|
86953
|
86953
MA609047 CLIP, FUEL LINED=25 |
MA609047 |
from US $2.24 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
