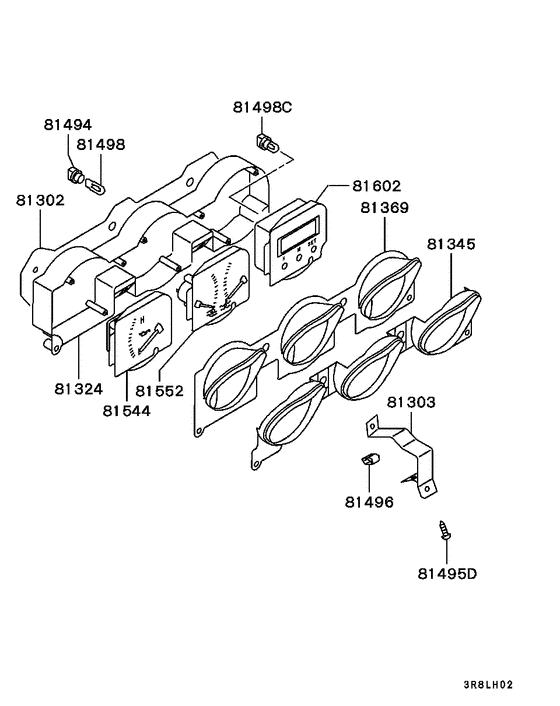

Meter,gauge & clock (COMBINATION GAUGE) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T LHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81302
|
81302
MR114437
BOARD,CONSOLE METER PRINTED CIRCUIT
|
MR114437 |
— | ||
|
81303
|
81303
MB604756
BRACKET,CONSOLE METER
|
MB604756 |
— | ||
|
81324
|
81324
MR114433
CASE,CONSOLE METER
|
MR114433 |
— | ||
|
81345
|
81345
MR114434
GLASS,CONSOLE METER
|
MR114434 |
— | ||
|
81369
|
81369
MR114435
PLATE,CONSOLE METER WINDOW
|
MR114435 |
— | ||
|
81494
|
81494
MB849559
SOCKET, INSTRUMENT PANEL METER
|
MB849559 |
— | ||
|
81495D
|
81495D
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81496
|
81496
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81498
|
81498
MB849558
BULB, INSTRUMENT PANEL METER
|
MB849558 |
— | ||
|
81498C
|
81498C
MR233666
BULB, CONSOLE METER
|
MR233666 |
— | ||
|
81544
|
81544
MR114436 GAUGE,OIL PRESSURE |
MR114436 |
US $44.40 |
||
|
81552
|
81552
MR114438
GAUGE,BOOST & WATER TEMPERATURE
|
MR114438 |
— | ||
|
81602
|
81602
MB849356 CLOCK, DIGITAL |
MB849356 |
US $391.66 |
