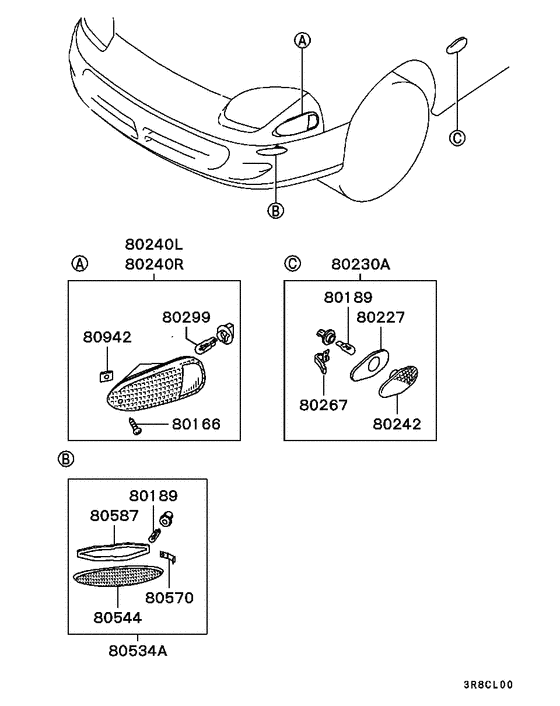

Front exterior lamp ('95MODEL-) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80166
|
80166
MR108264 SCREW,FR LAMP |
MR108264 |
US $1.78 |
||
|
80166
|
80166
MR154702 SCREW, FR LAMPTapping,4 |
MR154702 |
US $2.81 |
||
|
80189
|
80189
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80227
|
80227
MB623926 GASKET, SIDE TURN SIGNAL LAMP |
MB623926 |
US $2.96 |
||
|
80230A
|
80230A
MB617810 LAMP ASSY, SIDE TURN SIGNAL, FR12v-5w |
MB617810 |
US $30.34 |
||
|
80240L
|
80240L
MR162995
LAMP KIT,COMBINATION,FR LH
|
MR162995 |
— | ||
|
80240R
|
80240R
MR162996
LAMP KIT,COMBINATION,FR RH
|
MR162996 |
— | ||
|
80242
|
80242
MB623925 LAMP UNIT, SIDE TURN SIGNAL, FR |
MB623925 |
US $23.68 |
||
|
80267
|
80267
MB623927 ADAPTER, FR SIDE TURN SIGNAL LAMP |
MB623927 |
US $3.55 |
||
|
80299
|
80299
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80534A
|
80534A
MR154375
LAMP ASSY,CLEARANCE
|
MR154375 |
— | ||
|
80544
|
80544
MR155606
LAMP UNIT,CLEARANCE
|
MR155606 |
— | ||
|
80570
|
80570
MR155607
HOOK,CLEARANCE LAMP
|
MR155607 |
— | ||
|
80587
|
80587
MR155608
GASKET,CLEARANCE LAMP
|
MR155608 |
— | ||
|
80942
|
80942
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
