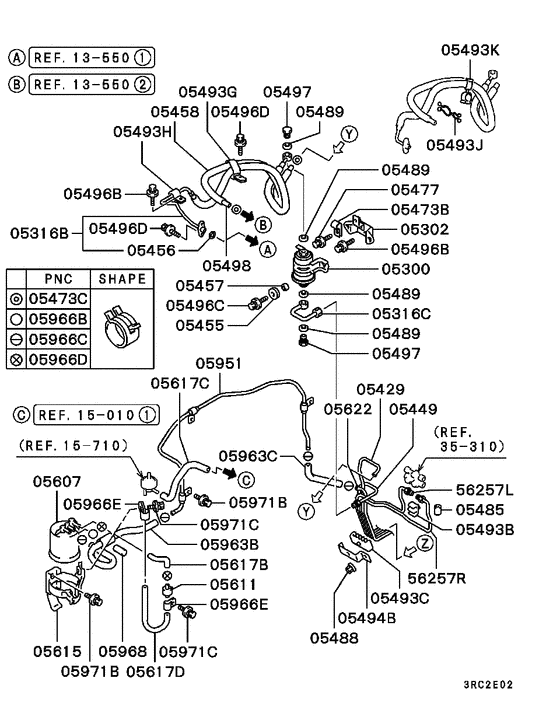

Fuel line & vapor gas control (FRONT) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05300
|
05300
MB658136 FUEL FILTER |
MB658136 |
US $153.22 |
||
|
05302
|
05302
MB621979 BRACKET, FUEL FILTER |
MB621979 |
US $12.28 |
||
|
05316B
|
05316B
MB658722 HOSE, FUEL FILTER HIGH PRESSURE |
MB658722 |
US $227.92 |
||
|
05316C
|
05316C
MB658137 HOSE, FUEL FILTER HIGH PRESSURE |
MB658137 |
US $81.40 |
||
|
05429
|
05429
MB658122
PIPE, FUEL RETURN
|
MB658122 |
— | ||
|
05449
|
05449
MB658121 PIPE, FUEL LINE |
MB658121 |
US $72.50 |
||
|
05455
|
05455
MB221305 CUSHION, FUEL LINE |
MB221305 |
US $4.51 |
||
|
05456
|
05456
MB554317 O-RING, FUEL LINE11.8 |
MB554317 |
from US $2.07 |
||
|
05457
|
05457
MB221304
COLLAR, FUEL LINE
|
MB221304 |
— | ||
|
05458
|
05458
MB044005
TUBE, FUEL TANK
|
MB044005 |
— | ||
| replacement | |||||
|
05458
|
05458
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05473B
|
05473B
MB165037 CLIP, FUEL RETURN LINE |
MB165037 |
US $2.74 |
||
|
05473C
|
05473C
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05477
|
05477
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05485
|
05485
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05488
|
05488
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
05489
|
05489
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
05493B
|
05493B
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05493C
|
05493C
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493G
|
05493G
MB658723 CLAMP, FUEL LINE |
MB658723 |
US $9.47 |
||
|
05493H
|
05493H
MB658622 CLIP, FUEL LINE |
MB658622 |
US $6.22 |
||
|
05493J
|
05493J
MS470364 CLIP, FUEL LINE8-16 |
MS470364 |
US $2.81 |
||
|
05493K
|
05493K
MS470504 CLIP, FUEL LINE |
MS470504 |
US $4.92 |
||
|
05494B
|
05494B
MB329987
CLAMP, FUEL LINE
|
MB329987 |
— | ||
|
05496B
|
05496B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05496B
|
05496B
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
05496C
|
05496C
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.64 |
||
|
05496D
|
05496D
MU240020 BOLT, FUEL LINEWasher assembled,6x20 |
MU240020 |
US $2.37 |
||
|
05497
|
05497
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
05498
|
05498
MS605996
HOSE, FUEL TANK
|
MS605996 |
— | ||
| replacement | |||||
|
05498
|
05498
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05498
|
05498
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05607
|
05607
MB925800
CANISTER,FUEL VAPOR
|
MB925800 |
— | ||
|
05611
|
05611
MB925871
CHECK VALVE,FUEL VAPOR CONTROL
|
MB925871 |
— | ||
|
05615
|
05615
MB925867
HOLDER,FUEL VAPOR CANISTER
|
MB925867 |
— | ||
|
05617B
|
05617B
MB925872
HOSE,FUEL VAPOR PURGE
|
MB925872 |
— | ||
|
05617C
|
05617C
MB658640
HOSE,FUEL VAPOR PURGE
|
MB658640 |
— | ||
|
05617D
|
05617D
MB925873
HOSE,FUEL VAPOR PURGE
|
MB925873 |
— | ||
|
05622
|
05622
MB658123
PIPE, FUEL VAPOR
|
MB658123 |
— | ||
|
05951
|
05951
MB658166 PIPE, FUEL VAPOR CONTROL LINE |
MB658166 |
US $37.74 |
||
|
05963B
|
05963B
MB658346 HOSE,FUEL VAPOR CONTROL LINE |
MB658346 |
US $6.81 |
||
|
05963C
|
05963C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05966B
|
05966B
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05966C
|
05966C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966D
|
05966D
MS660166 CLIP, ROCKER COVERD=15.5 |
MS660166 |
from US $1.62 |
||
|
05966E
|
05966E
MB658349
CLIP, FUEL VAPOR CONTROL LINE
|
MB658349 |
— | ||
|
05968
|
05968
MB129998 CAP, FUEL VAPOR CONTROL LINE |
MB129998 |
US $5.18 |
||
|
05971B
|
05971B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05971C
|
05971C
MF247249 BOLTWasher assembled,8x16 |
MF247249 |
from US $1.72 |
||
|
56257L
|
56257L
MB618948
TUBE, BRAKE MAIN
|
MB618948 |
— | ||
|
56257R
|
56257R
MB618949
TUBE, BRAKE MAIN
|
MB618949 |
— | ||
|
