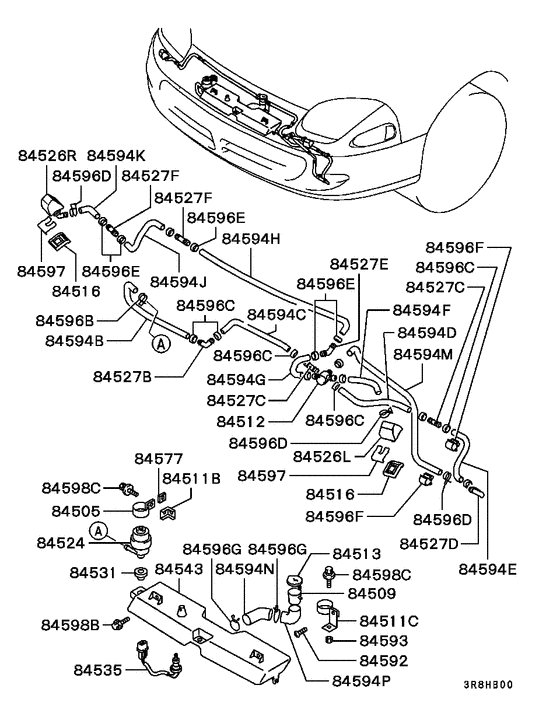

Headlamp wiper & washer ('95MODEL-) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84505
|
84505
MB623626 BRACKET, HEADLAMP WASHER MOTOR |
MB623626 |
US $9.32 |
||
|
84509
|
84509
MR108201
HOSE,HEADLAMP WASHER TANK FILLER
|
MR108201 |
— | ||
|
84511B
|
84511B
MR108205
BRACKET,HEADLAMP WASHER TANK
|
MR108205 |
— | ||
|
84511C
|
84511C
MR108202
BRACKET,HEADLAMP WASHER TANK
|
MR108202 |
— | ||
|
84512
|
84512
MB141872 CHECK VALVE, HEADLAMP WASHER |
MB141872 |
from US $20.90 |
||
|
84513
|
84513
MR108199
CAP,HEADLAMP WASHER TANK FILLER
|
MR108199 |
— | ||
|
84516
|
84516
MR155169
COLLAR,HEADLAMP WASHER
|
MR155169 |
— | ||
|
84524
|
84524
MB617961
MOTOR,HEADLAMP WASHER
|
MB617961 |
— | ||
|
84524
|
84524
MB683967
MOTOR,HEADLAMP WASHER
|
MB683967 |
— | ||
| replacement | |||||
|
84524
|
84524
MB952000
MOTOR, HEADLAMP WASHER
|
MB952000 |
— | ||
|
84526L
|
84526L
MR155199
NOZZLE,HEADLAMP WASHER,LH
|
MR155199 |
— | ||
|
84526L
|
84526L
MR155202
NOZZLE,HEADLAMP WASHER,LH
|
MR155202 |
— | ||
|
84526L
|
84526L
MR155203
NOZZLE,HEADLAMP WASHER,LH
|
MR155203 |
— | ||
|
84526L
|
84526L
MR155204
NOZZLE,HEADLAMP WASHER,LH
|
MR155204 |
— | ||
|
84526L
|
84526L
MR734970
NOZZLE,HEADLAMP WASHER,LH
|
MR734970 |
— | ||
|
84526L
|
84526L
MR734971
NOZZLE,HEADLAMP WASHER,LH
|
MR734971 |
— | ||
|
84526L
|
84526L
MR760098
NOZZLE,HEADLAMP WASHER,LH
|
MR760098 |
— | ||
|
84526L
|
84526L
MR766468
NOZZLE,HEADLAMP WASHER,LH
|
MR766468 |
— | ||
|
84526L
|
84526L
MR773928
NOZZLE,HEADLAMP WASHER,LH
|
MR773928 |
— | ||
|
84526R
|
84526R
MR155205
NOZZLE,HEADLAMP WASHER,RH
|
MR155205 |
— | ||
|
84526R
|
84526R
MR155208
NOZZLE,HEADLAMP WASHER,RH
|
MR155208 |
— | ||
|
84526R
|
84526R
MR155209
NOZZLE,HEADLAMP WASHER,RH
|
MR155209 |
— | ||
|
84526R
|
84526R
MR155210
NOZZLE,HEADLAMP WASHER,RH
|
MR155210 |
— | ||
|
84526R
|
84526R
MR734972
NOZZLE,HEADLAMP WASHER,RH
|
MR734972 |
— | ||
|
84526R
|
84526R
MR734973
NOZZLE,HEADLAMP WASHER,RH
|
MR734973 |
— | ||
|
84526R
|
84526R
MR760099
NOZZLE,HEADLAMP WASHER,RH
|
MR760099 |
— | ||
|
84526R
|
84526R
MR766469
NOZZLE,HEADLAMP WASHER,RH
|
MR766469 |
— | ||
|
84526R
|
84526R
MR773929
NOZZLE,HEADLAMP WASHER,RH
|
MR773929 |
— | ||
|
84527B
|
84527B
MB683914 JOINT, HEADLAMP WASHER |
MB683914 |
US $19.98 |
||
|
84527B
|
84527B
MR108543
JOINT,HEADLAMP WASHER
|
MR108543 |
— | ||
|
84527C
|
84527C
MB487972 JOINT, HEADLAMP WASHER |
MB487972 |
US $5.77 |
||
|
84527D
|
84527D
MB683914 JOINT, HEADLAMP WASHER |
MB683914 |
US $19.98 |
||
|
84527D
|
84527D
MR108543
JOINT,HEADLAMP WASHER
|
MR108543 |
— | ||
|
84527E
|
84527E
MR108543
JOINT,HEADLAMP WASHER
|
MR108543 |
— | ||
|
84527F
|
84527F
MB487972 JOINT, HEADLAMP WASHER |
MB487972 |
US $5.77 |
||
|
84531
|
84531
MB196832
GASKET, HEADLAMP WASHER MOTOR
|
MB196832 |
— | ||
| replacement | |||||
|
84531
|
84531
MB141876 GASKET, HEADLAMP WASHER MOTOR |
MB141876 |
from US $1.42 |
||
|
84535
|
84535
MB622875
SENSOR,HEADLAMP WASHER TANK LEVEL
|
MB622875 |
— | ||
|
84543
|
84543
MR108198
TANK,HEADLAMP WASHER
|
MR108198 |
— | ||
|
84577
|
84577
MR108542
SPACER,HEADLAMP WASHER
|
MR108542 |
— | ||
|
84592
|
84592
MF200026 SCREW, GENERATOR SETTINGMachine,4x10 |
MF200026 |
US $2.07 |
||
|
84593
|
84593
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
84594B
|
84594B
MR108550
HOSE,HEADLAMP WASHER
|
MR108550 |
— | ||
|
84594B
|
84594B
MR155913
HOSE,HEADLAMP WASHER
|
MR155913 |
— | ||
|
84594C
|
84594C
MR108549
HOSE,HEADLAMP WASHER
|
MR108549 |
— | ||
|
84594C
|
84594C
MR155914
HOSE,HEADLAMP WASHER
|
MR155914 |
— | ||
|
84594D
|
84594D
MR108547
HOSE,HEADLAMP WASHER
|
MR108547 |
— | ||
|
84594D
|
84594D
MR155911
HOSE,HEADLAMP WASHER
|
MR155911 |
— | ||
|
84594E
|
84594E
MR108546
HOSE,HEADLAMP WASHER
|
MR108546 |
— | ||
|
84594E
|
84594E
MR155912
HOSE,HEADLAMP WASHER
|
MR155912 |
— | ||
|
84594F
|
84594F
MR108544
HOSE,HEADLAMP WASHER
|
MR108544 |
— | ||
|
84594F
|
84594F
MR155910
HOSE,HEADLAMP WASHER
|
MR155910 |
— | ||
|
84594G
|
84594G
MR108545
HOSE,HEADLAMP WASHER
|
MR108545 |
— | ||
|
84594G
|
84594G
MR155907
HOSE,HEADLAMP WASHER
|
MR155907 |
— | ||
|
84594H
|
84594H
MR108548
HOSE,HEADLAMP WASHER
|
MR108548 |
— | ||
|
84594H
|
84594H
MR155906
HOSE,HEADLAMP WASHER
|
MR155906 |
— | ||
|
84594J
|
84594J
MR108203
HOSE,HEADLAMP WASHER
|
MR108203 |
— | ||
|
84594J
|
84594J
MR155905
HOSE,HEADLAMP WASHER
|
MR155905 |
— | ||
|
84594K
|
84594K
MR108200
HOSE,HEADLAMP WASHER
|
MR108200 |
— | ||
|
84594K
|
84594K
MR155904
HOSE,HEADLAMP WASHER
|
MR155904 |
— | ||
|
84594M
|
84594M
MR155909
HOSE,HEADLAMP WASHER
|
MR155909 |
— | ||
|
84594N
|
84594N
MR108203
HOSE,HEADLAMP WASHER
|
MR108203 |
— | ||
|
84594P
|
84594P
MR108200
HOSE,HEADLAMP WASHER
|
MR108200 |
— | ||
|
84596B
|
84596B
MB359976 CLIP, HEADLAMP WASHER12 |
MB359976 |
US $4.10 |
||
|
84596B
|
84596B
MB880022 CLIP, HEADLAMP WASHER |
MB880022 |
US $2.46 |
||
|
84596C
|
84596C
MB359976 CLIP, HEADLAMP WASHER12 |
MB359976 |
US $4.10 |
||
|
84596C
|
84596C
MB882374 CLIP, WINDSHIELD WASHER |
MB882374 |
from US $2.81 |
||
|
84596D
|
84596D
MB183629 CLIP, HEADLAMP WASHER3 |
MB183629 |
US $2.81 |
||
|
84596D
|
84596D
MB359976 CLIP, HEADLAMP WASHER12 |
MB359976 |
US $4.10 |
||
|
84596E
|
84596E
MB882374 CLIP, WINDSHIELD WASHER |
MB882374 |
from US $2.81 |
||
|
84596E
|
84596E
MR108204
CLIP,HEADLAMP WASHER
|
MR108204 |
— | ||
|
84596F
|
84596F
MB183629 CLIP, HEADLAMP WASHER3 |
MB183629 |
US $2.81 |
||
|
84596G
|
84596G
MR108204
CLIP,HEADLAMP WASHER
|
MR108204 |
— | ||
|
84597
|
84597
MB881671
CLAMP,HEADLAMP WASHER
|
MB881671 |
— | ||
|
84597
|
84597
MR154385
CLAMP,HEADLAMP WASHER
|
MR154385 |
— | ||
|
84598B
|
84598B
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
84598C
|
84598C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
