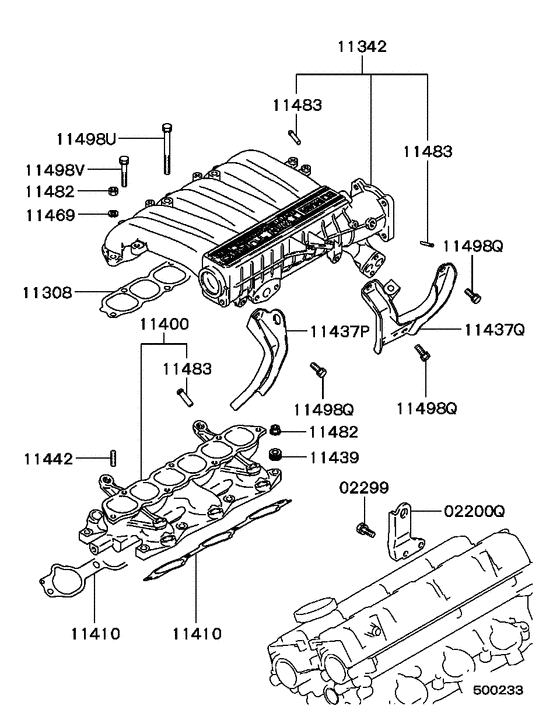

Inlet manifold (ALL) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MD155655 ENGINE HANGER |
MD155655 |
US $55.50 |
||
|
02299
|
02299
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
02299
|
02299
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11308
|
11308
MD143791
GASKET, ENG AIR INTAKE SURGE TANK
|
MD143791 |
— | ||
|
11342
|
11342
MD163401 TANK, ENG AIR INTAKE SURGE |
MD163401 |
US $1,118.21 |
||
|
11400
|
11400
MD162568 MANIFOLD, INLET |
MD162568 |
US $643.55 |
||
|
11410
|
11410
MD151707
GASKET, INLET MANIFOLD
|
MD151707 |
— | ||
| replacement | |||||
|
11410
|
11410
MD164701 GASKET, INLET MANIFOLD |
MD164701 |
US $25.99 |
||
|
11410
|
11410
MD164701 GASKET, INLET MANIFOLD |
MD164701 |
US $25.99 |
||
|
11437P
|
11437P
MD157021 STAY, INLET MANIFOLD |
MD157021 |
US $19.24 |
||
|
11437Q
|
11437Q
MD175540 STAY, INLET MANIFOLD |
MD175540 |
US $65.12 |
||
|
11439
|
11439
MD165858 SPRING, INLET MANIFOLD DISC |
MD165858 |
US $10.06 |
||
|
11439
|
11439
MD307210 SPRING, INLET MANIFOLD DISC |
MD307210 |
from US $3.33 |
||
|
11442
|
11442
MS401927 STUD, INLET MANIFOLD8x25 |
MS401927 |
US $2.52 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11482
|
11482
MD090676 NUT, TIMING BELT TRAINFlange,8 |
MD090676 |
US $3.97 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483
|
11483
MD098181 NIPPLE, INLET MANIFOLD4 |
MD098181 |
US $9.03 |
||
|
11483
|
11483
MD107333 NIPPLE, INLET MANIFOLD6.35 |
MD107333 |
US $10.21 |
||
|
11498Q
|
11498Q
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498Q
|
11498Q
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498U
|
11498U
MF241270 BOLT, THROTTLE BODYWasher assembled,8x85 |
MF241270 |
US $2.87 |
||
|
11498U
|
11498U
MF241870
BOLT, INLET MANIFOLD
|
MF241870 |
— | ||
|
11498V
|
11498V
MF241262 BOLT, ENG RH COVERWasher assembled,8x45 |
MF241262 |
US $4.10 |
||
|
11498V
|
11498V
MF241862
BOLT, INLET MANIFOLD
|
MF241862 |
— | ||
