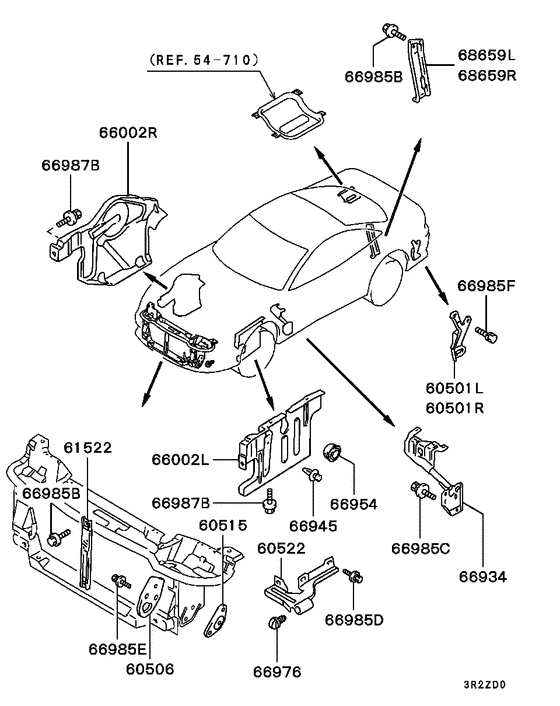

Loose panel (UNDER COVER,HOOK,ETC.) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60501L
|
60501L
MB640923 HOOK, TRACTION, LH |
MB640923 |
US $59.20 |
||
|
60501R
|
60501R
MB640924 HOOK, TRACTION, RH |
MB640924 |
US $81.40 |
||
|
60506
|
60506
MB934004 HOOK, TRACTION, FR |
MB934004 |
US $44.40 |
||
|
60515
|
60515
MR137296 PLATE, TRACTION HOOK |
MR137296 |
US $15.54 |
||
|
60522
|
60522
MB908962 REINFORCEMENT, TRACTION HOOK |
MB908962 |
US $79.18 |
||
|
61522
|
61522
MB640920
SUPPORT, HOOD LATCH
|
MB640920 |
— | ||
|
66002L
|
66002L
MB640781
COVER, ENG ROOM SIDE, LH
|
MB640781 |
— | ||
|
66002R
|
66002R
MB640782
COVER, ENG ROOM SIDE, RH
|
MB640782 |
— | ||
|
66002R
|
66002R
MB935460 COVER, ENG ROOM SIDE, RH |
MB935460 |
US $66.60 |
||
|
66934
|
66934
MB637522 STAY, BODY LOOSE PANEL |
MB637522 |
US $105.82 |
||
|
66945
|
66945
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.48 |
||
|
66954
|
66954
MU670026 PLUG, BODY35 |
MU670026 |
from US $3.22 |
||
|
66976
|
66976
MB935998
PLUG, BODY LOOSE PANEL
|
MB935998 |
— | ||
|
66985B
|
66985B
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
66985C
|
66985C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
66985D
|
66985D
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
66985E
|
66985E
MS240190 BOLT, FR SEATWasher assembled,10x30 |
MS240190 |
US $4.51 |
||
|
66985F
|
66985F
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
66985F
|
66985F
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
||
|
66987B
|
66987B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
66987B
|
66987B
MS240158 BOLT, FUEL TANKWasher assembled,8x20 |
MS240158 |
US $3.69 |
||
|
68659L
|
68659L
MB637437 BRACKET, TAILGATE GAS SPRING, LH |
MB637437 |
US $53.28 |
||
|
68659R
|
68659R
MB637438 BRACKET, TAILGATE GAS SPRING, RH |
MB637438 |
US $53.28 |
||
|
