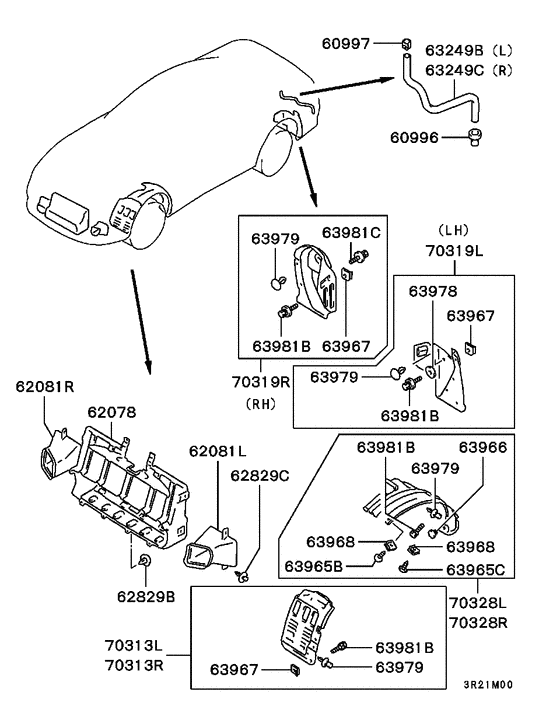

Plugs,covers & shield (SPLASH SHIELD & DUCT) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60996
|
60996
MU810509 GROMMET, BODY17 |
MU810509 |
US $6.84 |
||
|
60997
|
60997
MS660167 CLIP, ENG BREATHERD=13.8 |
MS660167 |
from US $1.37 |
||
|
62078
|
62078
MB889079 DUCT, FR BUMPER AIR GUIDE, CTR |
MB889079 |
US $173.16 |
||
|
62078
|
62078
MB935444 DUCT, FR BUMPER AIR GUIDE, CTR |
MB935444 |
US $196.99 |
||
|
62081L
|
62081L
MB908127
DUCT,FR BUMPER INTER COOLER,LH
|
MB908127 |
— | ||
|
62081L
|
62081L
MR153884
DUCT,FR BUMPER INTER COOLER,LH
|
MR153884 |
— | ||
|
62081R
|
62081R
MB640798
DUCT, FR BUMPER INTER COOLER, RH
|
MB640798 |
— | ||
|
62081R
|
62081R
MB935449
DUCT, FR BUMPER INTER COOLER, RH
|
MB935449 |
— | ||
|
62829B
|
62829B
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.68 |
||
|
62829C
|
62829C
MB406894 CLIP, FR BUMPER8 |
MB406894 |
US $2.74 |
||
|
63249B
|
63249B
MB640930
PIPE, QTR PANEL DRAIN
|
MB640930 |
— | ||
|
63249C
|
63249C
MB640930
PIPE, QTR PANEL DRAIN
|
MB640930 |
— | ||
|
63965B
|
63965B
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
63965C
|
63965C
MS452388 SCREW, SPLASH SHIELDTapping washer assembled,6x25 |
MS452388 |
from US $3.26 |
||
|
63966
|
63966
MB586869 PLUG, FLOORRubber,24 |
MB586869 |
US $5.06 |
||
|
63967
|
63967
MB104156 NUT, FR BUMPERSpring,6 |
MB104156 |
US $2.66 |
||
|
63968
|
63968
MB138567 GROMMET, SPLASH SHIELD6 |
MB138567 |
from US $2.26 |
||
|
63979
|
63979
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.48 |
||
|
63981B
|
63981B
MS100238 BOLT, HOOD LOCKINGFlange,6x14 |
MS100238 |
from US $1.15 |
||
|
63981B
|
63981B
MS240155 BOLT, WINDSHIELDWasher assembled,6x16 |
MS240155 |
from US $0.99 |
||
|
63981C
|
63981C
MU240005 BOLT, SPLASH SHIELD |
MU240005 |
US $2.66 |
||
|
70313L
|
70313L
MB861147
EXTENSION KIT, SPLASH SHIELD, FR LH
|
MB861147 |
— | ||
|
70313L
|
70313L
MR124477
EXTENSION KIT, SPLASH SHIELD, FR LH
|
MR124477 |
— | ||
|
70313R
|
70313R
MB861148
EXTENSION KIT, SPLASH SHIELD, FR RH
|
MB861148 |
— | ||
|
70313R
|
70313R
MR124478
EXTENSION KIT, SPLASH SHIELD, FR RH
|
MR124478 |
— | ||
|
70319L
|
70319L
MB698867
SHIELD KIT, SPLASH, RR LH
|
MB698867 |
— | ||
|
70319L
|
70319L
MR124479
SHIELD KIT, SPLASH, RR LH
|
MR124479 |
— | ||
|
70319R
|
70319R
MB698868
SHIELD KIT, SPLASH, RR RH
|
MB698868 |
— | ||
|
70319R
|
70319R
MR124480
SHIELD KIT, SPLASH, RR RH
|
MR124480 |
— | ||
|
70328L
|
70328L
MB698863
SHIELD KIT, SPLASH, FR LH
|
MB698863 |
— | ||
|
70328R
|
70328R
MB698864
SHIELD KIT, SPLASH, FR RH
|
MB698864 |
— |
