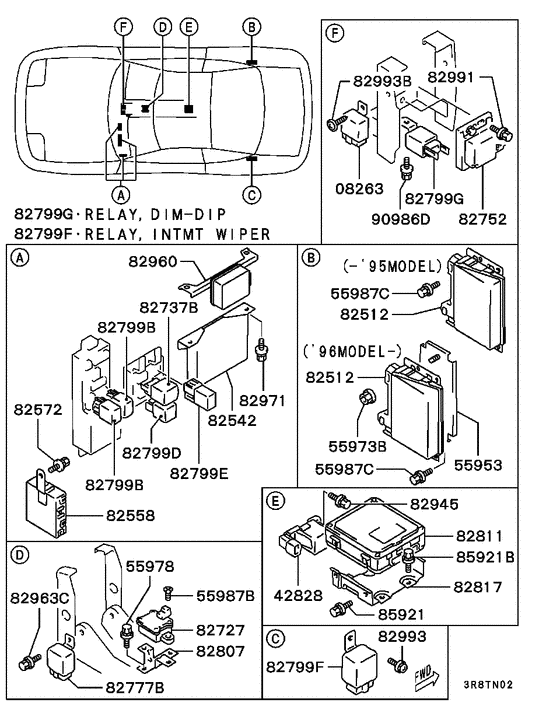

Relay,flasher & sensor (RELAY(AROUND INTERIOR)) Diagram Mitsubishi 3000GT
- Year
- 1994 - 2000
- Sales region
- EUR
- Note
- DOHC(TURBO/4WD/4WS),6FM/T RHD
- drive
- 4WD/4WS/4WD/4WS
- transmission
- 6FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08263
|
08263
MB627895 RELAYG8ms-1a24t-r-n20 |
MB627895 |
US $23.94 |
||
|
42828
|
42828
MB629077 SENSOR, ECS |
MB629077 |
US $327.60 |
||
|
55953
|
55953
MB953297 BRACKET, ABS CONTROL UNIT |
MB953297 |
US $22.20 |
||
|
55973B
|
55973B
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
55978
|
55978
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
55987B
|
55987B
MF201573 SCREW, ABS EQUIPMachine,6x18 |
MF201573 |
US $2.66 |
||
|
55987B
|
55987B
MF350793 SCREW, RR DOOR LOCKINGWasher assembled,6x18 |
MF350793 |
US $2.37 |
||
|
55987C
|
55987C
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
82512
|
82512
MB954172 CONTROL UNIT, ABS120 000 f0151 |
MB954172 |
US $2,044.80 |
||
|
82512
|
82512
MR173764 CONTROL UNIT, ABS120 000 b0091 |
MR173764 |
US $1,656 |
||
|
82512
|
82512
MR249590 CONTROL UNIT, ABS120 000 b0291 |
MR249590 |
US $1,756.80 |
||
|
82542
|
82542
MB629053
CONTROL UNIT,TIME & ALARM
|
MB629053 |
— | ||
|
82542
|
82542
MB876374
CONTROL UNIT,TIME & ALARM
|
MB876374 |
— | ||
|
82542
|
82542
MR405937
CONTROL UNIT,TIME & ALARM
|
MR405937 |
— | ||
|
82558
|
82558
MB649048
FLASHER UNIT, HAZARD & TURN SIGNAL LAMP
|
MB649048 |
— | ||
|
82572
|
82572
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82727
|
82727
MB534699 G-SENSOR |
MB534699 |
US $308.67 |
||
|
82727
|
82727
MB942484
G-SENSOR
|
MB942484 |
— | ||
|
82727
|
82727
MR228716 G-SENSOR |
MR228716 |
US $340.70 |
||
|
82727
|
82727
MR475633 G-SENSOR |
MR475633 |
US $327.60 |
||
|
82737B
|
82737B
MB543647 CONTROL UNIT, DOORG8r-27m |
MB543647 |
US $69.56 |
||
|
82752
|
82752
MB306591 RELAY, HEADLAMP WASHER35600-37480 |
MB306591 |
US $139.86 |
||
|
82752
|
82752
MB617352 RELAY, HEADLAMP WASHER99812-10151 |
MB617352 |
US $121.36 |
||
|
82799B
|
82799B
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82799D
|
82799D
MB629285 RELAY056700-6480 |
MB629285 |
US $39.22 |
||
|
82799E
|
82799E
MB629083
RELAY, ABS
|
MB629083 |
— | ||
| replacements | |||||
|
82799E
|
82799E
8627A011
RELAY (A/T FAIL SAFE CONTROL)
|
8627A011 |
— | ||
|
82799E
|
82799E
8627A030 RELAY |
8627A030 |
from US $5.97 |
||
|
82799F
|
82799F
MB510925 RELAY, INTERMITTENT WIPERG8d-39m |
MB510925 |
US $87.32 |
||
|
82807
|
82807
MB629071 BRACKET, G-SENSOR |
MB629071 |
US $12.14 |
||
|
82807
|
82807
MR173767 BRACKET, G-SENSOR |
MR173767 |
US $11.54 |
||
|
82811
|
82811
MB943282 CONTROL UNIT, SRS DIAGNOSISX6t37081 |
MB943282 |
US $1,872 |
||
|
82811
|
82811
MR172687
CONTROL UNIT, SRS DIAGNOSIS
|
MR172687 |
— | ||
|
82811
|
82811
MR277721 CONTROL UNIT, SRS DIAGNOSISX6t39881 (x6t39871) |
MR277721 |
US $930.38 |
||
|
82817
|
82817
MB629281 BRACKET, AIR BAG CONTROL UNIT |
MB629281 |
US $22.94 |
||
|
82945
|
82945
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82960
|
82960
MR301005
CONTROL UNIT,THEFTPROOF
|
MR301005 |
— | ||
|
82960
|
82960
MR309671
CONTROL UNIT,THEFTPROOF
|
MR309671 |
— | ||
|
82971
|
82971
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82991
|
82991
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82993
|
82993
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
82993B
|
82993B
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
85921
|
85921
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
85921B
|
85921B
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
90986D
|
90986D
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
