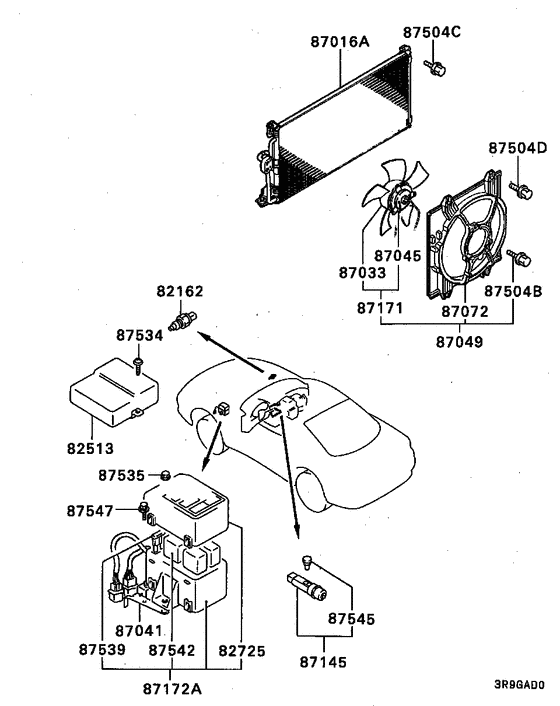

A/c condenser, piping (A/C CONDENSER,FAN,ETC.) Diagram Mitsubishi 3000GT
- Year
- 1991 - 1993
- Sales region
- PUERTO RICO&GUAM
- Note
- ULTIMATE LINE,5FM/T FED
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- ULTIMATE LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82162
|
82162
MB439576 SWITCH, WATER TEMPERATURE |
MB439576 |
from US $70.45 |
||
|
82513
|
82513
MB897122
CONTROL UNIT, A/C
|
MB897122 |
— | ||
|
82725
|
82725
MB630406
COVER,RELAY BOX
|
MB630406 |
— | ||
|
82725
|
82725
MB958800 COVER, RELAY BOX |
MB958800 |
US $35.52 |
||
|
87016A
|
87016A
MB609529
CONDENSER ASSY, A/C REFRIGERANT
|
MB609529 |
— | ||
| replacement | |||||
|
87016A
|
87016A
CAA311B069
CONDENSER ASSY, A/C REFRIGERANT
|
CAA311B069 |
— | ||
|
87016A
|
87016A
MB899229
CONDENSER ASSY, A/C REFRIGERANT
|
MB899229 |
— | ||
|
87033
|
87033
MB897438
FAN, A/C CONDENSER
|
MB897438 |
— | ||
|
87041
|
87041
MB657763
BRACKET, A/C CONTROL RELAY
|
MB657763 |
— | ||
|
87045
|
87045
MB897456
MOTOR, A/C CONDENSER FAN
|
MB897456 |
— | ||
| replacement | |||||
|
87045
|
87045
SSA512D010 A/C Condenser Fan |
SSA512D010 |
US $221.62 |
||
|
87045
|
87045
MR398035
MOTOR, A/C CONDENSER FAN
|
MR398035 |
— | ||
|
87049
|
87049
MB609530
MOTOR & SHROUD,A/C CONDENSER FAN
|
MB609530 |
— | ||
|
87049
|
87049
MR360127
MOTOR & SHROUD,A/C CONDENSER FAN
|
MR360127 |
— | ||
|
87049
|
87049
MR460802
MOTOR & SHROUD,A/C CONDENSER FAN
|
MR460802 |
— | ||
|
87072
|
87072
MB630414
SHROUD, A/C CONDENSER FAN
|
MB630414 |
— | ||
|
87171
|
87171
MB630412
FAN & MOTOR, A/C CONDENSER
|
MB630412 |
— | ||
|
87172A
|
87172A
MB609586
BOX ASSY,A/C RELAY & FUSE
|
MB609586 |
— | ||
|
87172A
|
87172A
MB958752
BOX ASSY, A/C RELAY & FUSE
|
MB958752 |
— | ||
|
87172A
|
87172A
MR360131
BOX ASSY,A/C RELAY & FUSE
|
MR360131 |
— | ||
|
87504B
|
87504B
MB630457 BOLT, A/C CONDENSERWasher assembled,5x12 |
MB630457 |
US $6.22 |
||
|
87504C
|
87504C
MF244855 BOLT, COOLING FANWasher assembled,8x30 |
MF244855 |
US $2.87 |
||
|
87504C
|
87504C
MF245455 BOLT, A/C PIPINGWasher assembled,8x30 |
MF245455 |
US $2.46 |
||
|
87504D
|
87504D
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
87504D
|
87504D
MS240155 BOLT, WINDSHIELDWasher assembled,6x16 |
MS240155 |
from US $0.99 |
||
|
87534
|
87534
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.20 |
||
|
87534
|
87534
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
87535
|
87535
MS440513 NUT, FR SEATWasher assembled,8 |
MS440513 |
US $2.19 |
||
|
87539
|
87539
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
87539
|
87539
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.40 |
||
|
87542
|
87542
MB629083
RELAY, ABS
|
MB629083 |
— | ||
| replacements | |||||
|
87542
|
87542
8627A011
RELAY (A/T FAIL SAFE CONTROL)
|
8627A011 |
— | ||
|
87542
|
87542
8627A030 RELAY |
8627A030 |
from US $5.97 |
||
|
87547
|
87547
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
