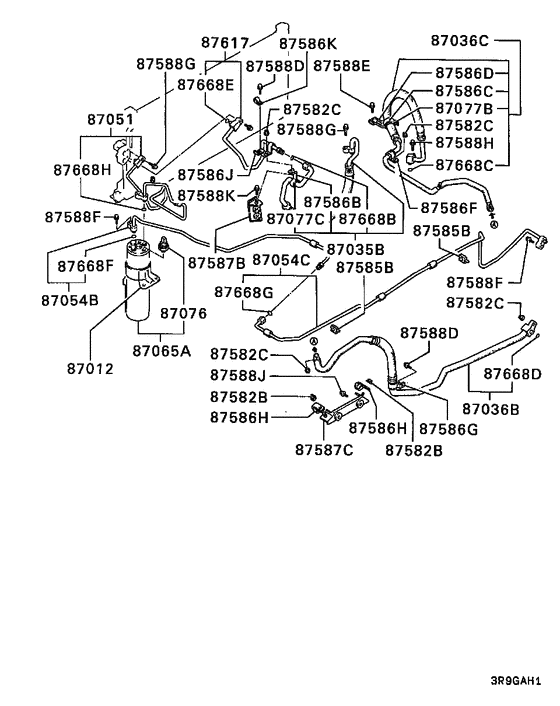

A/c condenser, piping (A/C PLUMBING) Diagram Mitsubishi 3000GT
- Year
- 1991 - 1993
- Sales region
- PUERTO RICO&GUAM
- Note
- ULTIMATE LINE,5FM/T FED
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- ULTIMATE LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87012
|
87012
MB609533
BRACKET, A/C RECEIVER
|
MB609533 |
— | ||
|
87012
|
87012
MB898337
BRACKET, A/C RECEIVER
|
MB898337 |
— | ||
|
87035B
|
87035B
MB609535
HOSE, A/C COMPRESSOR DISCHARGE
|
MB609535 |
— | ||
|
87035B
|
87035B
MR168778
HOSE, A/C COMPRESSOR DISCHARGE
|
MR168778 |
— | ||
|
87036B
|
87036B
MB609618
HOSE,A/C COMPRESSOR SUCTION
|
MB609618 |
— | ||
|
87036B
|
87036B
MB947466
HOSE,A/C COMPRESSOR SUCTION
|
MB947466 |
— | ||
|
87036C
|
87036C
MB609536
HOSE, A/C COMPRESSOR SUCTION
|
MB609536 |
— | ||
|
87036C
|
87036C
MR149281
HOSE, A/C COMPRESSOR SUCTION
|
MR149281 |
— | ||
|
87036C
|
87036C
MR270548
HOSE, A/C COMPRESSOR SUCTION
|
MR270548 |
— | ||
|
87051
|
87051
MB609538
PIPE, A/C CONDENSER OUTLET
|
MB609538 |
— | ||
|
87051
|
87051
MB899234
PIPE, A/C CONDENSER OUTLET
|
MB899234 |
— | ||
|
87054B
|
87054B
MB609543
PIPE,A/C RECEIVER OUTLET
|
MB609543 |
— | ||
|
87054B
|
87054B
MB947469
PIPE,A/C RECEIVER OUTLET
|
MB947469 |
— | ||
|
87054C
|
87054C
MB609544
PIPE,A/C RECEIVER OUTLET
|
MB609544 |
— | ||
|
87054C
|
87054C
MB947470
PIPE,A/C RECEIVER OUTLET
|
MB947470 |
— | ||
|
87065A
|
87065A
MB657712
RECEIVER ASSY, A/C
|
MB657712 |
— | ||
|
87065A
|
87065A
MB813589
RECEIVER ASSY, A/C
|
MB813589 |
— | ||
|
87065A
|
87065A
MB869218
RECEIVER ASSY, A/C
|
MB869218 |
— | ||
|
87065A
|
87065A
MB898319
RECEIVER ASSY, A/C
|
MB898319 |
— | ||
| replacement | |||||
|
87065A
|
87065A
MR398069 RECEIVER ASSY, A/C |
MR398069 |
US $140.90 |
||
|
87076
|
87076
MB276842
SWITCH, A/C REFRIGERANT PIPE PRESSURE
|
MB276842 |
— | ||
|
87076
|
87076
MR250683
SWITCH, A/C REFRIGERANT PRESSURE
|
MR250683 |
— | ||
|
87076
|
87076
MR398974
SWITCH, A/C REFRIGERANT PRESSURE
|
MR398974 |
— | ||
|
87077B
|
87077B
MB609614
INSULATOR,A/C REFRIGERANT HOSE
|
MB609614 |
— | ||
|
87077C
|
87077C
MB609609
INSULATOR,A/C REFRIGERANT HOSE
|
MB609609 |
— | ||
|
87582B
|
87582B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
87582B
|
87582B
MS440512 NUT, AIR SPOILERWasher assembled,6 |
MS440512 |
US $2.46 |
||
|
87582C
|
87582C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
87582C
|
87582C
MS440513 NUT, FR SEATWasher assembled,8 |
MS440513 |
US $2.19 |
||
|
87585B
|
87585B
MU481044 CLIP, WINDSHIELD WASHER8 |
MU481044 |
from US $1.87 |
||
|
87586B
|
87586B
MB609549
CLAMP, A/C PIPING
|
MB609549 |
— | ||
|
87586C
|
87586C
MB609616
CLAMP, A/C PIPING
|
MB609616 |
— | ||
|
87586D
|
87586D
MB609617
CLAMP, A/C PIPING
|
MB609617 |
— | ||
|
87586F
|
87586F
MB609550
CLAMP, A/C PIPING
|
MB609550 |
— | ||
|
87586G
|
87586G
MB609551
CLAMP,A/C PIPING
|
MB609551 |
— | ||
|
87586G
|
87586G
MB813134
CLAMP,A/C PIPING
|
MB813134 |
— | ||
|
87586H
|
87586H
MB657724 CLAMP, A/C PIPING |
MB657724 |
US $3.55 |
||
|
87586J
|
87586J
MB657733 CLAMP, A/C PIPING |
MB657733 |
US $5.18 |
||
|
87586K
|
87586K
MU470068
CLAMP, A/C PIPING
|
MU470068 |
— | ||
|
87587B
|
87587B
MB657732
BRACKET, A/C PIPING
|
MB657732 |
— | ||
|
87587C
|
87587C
MB609547
BRACKET, A/C PIPING
|
MB609547 |
— | ||
|
87588D
|
87588D
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
87588D
|
87588D
MF244224 BOLT, A/C PIPINGWasher assembled,6x16 |
MF244224 |
US $3.28 |
||
|
87588E
|
87588E
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
87588E
|
87588E
MF244249 BOLT, ENG HANGERWasher assembled,8x16 |
MF244249 |
US $2.19 |
||
|
87588F
|
87588F
MF243628 BOLT, CONNRODWasher assembled,6x25 |
MF243628 |
US $0.55 |
||
|
87588F
|
87588F
MF244228 BOLT, A/C PIPINGWasher assembled,6x25 |
MF244228 |
US $1.92 |
||
|
87588F
|
87588F
MF245430 BOLT, EMISSION SOLENOID VALVEWasher assembled,6x30 |
MF245430 |
US $3.55 |
||
|
87588G
|
87588G
MF244855 BOLT, COOLING FANWasher assembled,8x30 |
MF244855 |
US $2.87 |
||
|
87588G
|
87588G
MF245455 BOLT, A/C PIPINGWasher assembled,8x30 |
MF245455 |
US $2.46 |
||
|
87588H
|
87588H
MF245459 BOLT,A/C PIPING |
MF245459 |
US $2.52 |
||
|
87588J
|
87588J
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
87588J
|
87588J
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $0.90 |
||
|
87588K
|
87588K
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.64 |
||
|
87588K
|
87588K
MF248193 BOLT, AIR CLEANERWasher assembled,8x25 |
MF248193 |
US $2.60 |
||
|
87617
|
87617
MB609539
PIPE, A/C COMPRESSOR DISCHARGE
|
MB609539 |
— | ||
|
87617
|
87617
MB899233
PIPE, A/C COMPRESSOR DISCHARGE
|
MB899233 |
— | ||
|
87668B
|
87668B
MB276214 O-RING, A/C PIPING1/2; |
MB276214 |
US $6.51 |
||
|
87668B
|
87668B
MB946605 O-RING, RR A/C1/2 |
MB946605 |
from US $1.46 |
||
|
87668C
|
87668C
MB657788 O-RING, A/C PIPING3/4; |
MB657788 |
US $5.18 |
||
|
87668C
|
87668C
MB946607
O-RING, A/C PIPING
|
MB946607 |
— | ||
|
87668C
|
87668C
MR117263 O-RING, A/C PIPING3/4 |
MR117263 |
from US $1.31 |
||
|
87668D
|
87668D
MB657788 O-RING, A/C PIPING3/4; |
MB657788 |
US $5.18 |
||
|
87668D
|
87668D
MR117263 O-RING, A/C PIPING3/4 |
MR117263 |
from US $1.31 |
||
|
87668E
|
87668E
MB869686
O-RING, A/C PIPING
|
MB869686 |
— | ||
|
87668E
|
87668E
MB946604 O-RING, RR A/C |
MB946604 |
from US $0.82 |
||
|
87668F
|
87668F
MB869686
O-RING, A/C PIPING
|
MB869686 |
— | ||
|
87668F
|
87668F
MB946604 O-RING, RR A/C |
MB946604 |
from US $0.82 |
||
|
87668G
|
87668G
MB869686
O-RING, A/C PIPING
|
MB869686 |
— | ||
|
87668G
|
87668G
MB946604 O-RING, RR A/C |
MB946604 |
from US $0.82 |
||
|
87668H
|
87668H
MB276214 O-RING, A/C PIPING1/2; |
MB276214 |
US $6.51 |
||
|
87668H
|
87668H
MB946605 O-RING, RR A/C1/2 |
MB946605 |
from US $1.46 |
||
