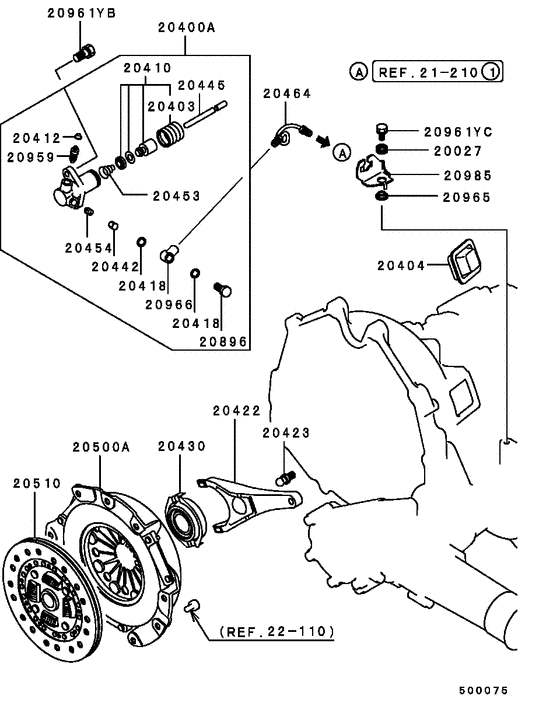

Clutch & clutch release (ALL) Diagram Mitsubishi 3000GT
- Year
- 1991 - 1993
- Sales region
- PUERTO RICO&GUAM
- Note
- ULTIMATE LINE,5FM/T FED
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- ULTIMATE LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20027
|
20027
MD724003 INSULATOR, CLUTCH FLUID TUBE BRACKET |
MD724003 |
US $5.06 |
||
|
20400A
|
20400A
MB670290 Cylinder Assy, Clutch Release |
MB670290 |
US $127.91 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7.25 |
||
|
20404
|
20404
MB670336
BOOT, CLUTCH RELEASE FORK
|
MB670336 |
— | ||
|
20410
|
20410
MD970498 CYLINDER KIT, CLUTCH RELEASE |
MD970498 |
US $22.94 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.83 |
||
|
20422
|
20422
MB837152 FORK, CLUTCH RELEASE |
MB837152 |
US $136.12 |
||
|
20423
|
20423
MB837038
FULCRUM, CLUTCH RELEASE FORK
|
MB837038 |
— | ||
|
20430
|
20430
MB837549
BEARING, CLUTCH RELEASE
|
MB837549 |
— | ||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20442
|
20442
MD621020 PLATE, CLUTCH RELEASE CYLINDER VALVE |
MD621020 |
US $6.22 |
||
|
20445
|
20445
MD620228 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD620228 |
US $12.28 |
||
|
20453
|
20453
MB896898 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MB896898 |
US $2.81 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20454
|
20454
MD621022 SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE |
MD621022 |
from US $1.46 |
||
|
20464
|
20464
MD734398 TUBE,CLUTCH RELEASE CYLINDER |
MD734398 |
US $8.76 |
||
|
20500A
|
20500A
MD742801 COVER ASSY, CLUTCH |
MD742801 |
US $594.88 |
||
|
20510
|
20510
MD741324
DISC, CLUTCH
|
MD741324 |
— | ||
| replacement | |||||
|
20510
|
20510
MR111650 DISC, CLUTCH225 |
MR111650 |
from US $316.37 |
||
|
20510
|
20510
MR111650 DISC, CLUTCH225 |
MR111650 |
from US $316.37 |
||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
20961YC
|
20961YC
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
20965
|
20965
MD724004 WASHER, M/T CLUTCH CONTROL EQUIP8.4 |
MD724004 |
US $3.56 |
||
|
20966
|
20966
MD603694 UNION, M/T CLUTCH CONTROL EQUIP |
MD603694 |
US $10.66 |
||
|
20966
|
20966
MD621013
UNION, M/T CLUTCH CONTROL EQUIP
|
MD621013 |
— | ||
| replacement | |||||
|
20966
|
20966
2324A057 UNION, M/T CLUTCH CONTROL EQUIP |
2324A057 |
US $7.25 |
||
|
20985
|
20985
MB670281 BRACKET,M/T CLUTCH CONTROL EQUIP |
MB670281 |
US $10.51 |
||
|
