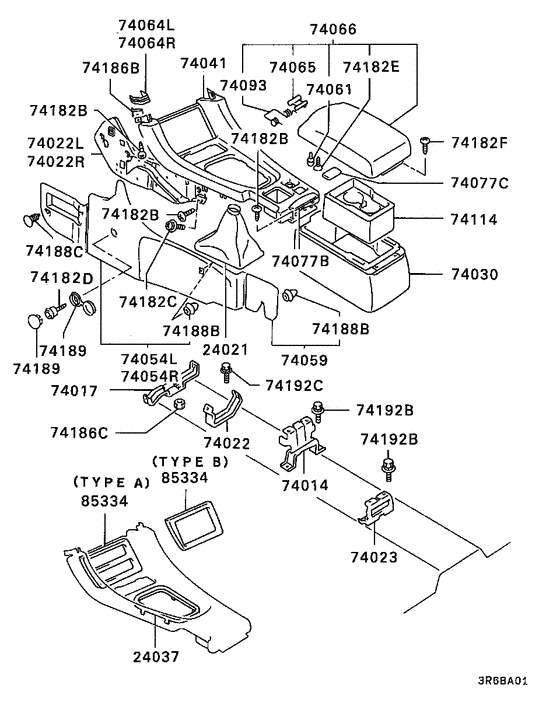

Console Diagram Mitsubishi 3000GT
- Year
- 1991 - 1993
- Sales region
- PUERTO RICO&GUAM
- Note
- ULTIMATE LINE,5FM/T FED
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- ULTIMATE LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24021
|
24021
MB766496
COVER,GEARSHIFT LEVER
|
MB766496 |
— | ||
|
24021
|
24021
MB958413
COVER,GEARSHIFT LEVER
|
MB958413 |
— | ||
|
24021
|
24021
MR751542
COVER,GEARSHIFT LEVER
|
MR751542 |
— | ||
|
74014
|
74014
MB604663 BRACKET, FLOOR CONSOLE BACKBONE |
MB604663 |
US $19.24 |
||
|
74017
|
74017
MB604647
BRACKET,FLOOR CONSOLE COVER
|
MB604647 |
— | ||
|
74022
|
74022
MB604634 BRACKET, FLOOR CONSOLE, FR |
MB604634 |
US $11.69 |
||
|
74022L
|
74022L
MB604630
BRACKET,FLOOR CONSOLE,FR LH
|
MB604630 |
— | ||
|
74022R
|
74022R
MB604632
BRACKET,FLOOR CONSOLE,FR RH
|
MB604632 |
— | ||
|
74023
|
74023
MB604664 BRACKET, FLOOR CONSOLE, RR |
MB604664 |
US $10.06 |
||
|
74030
|
74030
MB766512
CONSOLE, FLOOR, RR
|
MB766512 |
— | ||
|
74030
|
74030
MR751555 CONSOLE, FLOOR, RR |
MR751555 |
US $102.86 |
||
|
74030
|
74030
MR751556
CONSOLE,FLOOR,RR
|
MR751556 |
— | ||
|
74041
|
74041
MB766494
CONSOLE,FLOOR,FR
|
MB766494 |
— | ||
|
74041
|
74041
MR751540
CONSOLE,FLOOR,FR
|
MR751540 |
— | ||
|
74054L
|
74054L
MB766498
COVER,FLOOR CONSOLE SIDE,LH
|
MB766498 |
— | ||
|
74054L
|
74054L
MB766499
COVER,FLOOR CONSOLE SIDE,LH
|
MB766499 |
— | ||
|
74054L
|
74054L
MB849840
COVER,FLOOR CONSOLE SIDE,LH
|
MB849840 |
— | ||
|
74054L
|
74054L
MB849843
COVER,FLOOR CONSOLE SIDE,LH
|
MB849843 |
— | ||
|
74054L
|
74054L
MB849844
COVER,FLOOR CONSOLE SIDE,LH
|
MB849844 |
— | ||
|
74054L
|
74054L
MR751544
COVER,FLOOR CONSOLE SIDE,LH
|
MR751544 |
— | ||
|
74054L
|
74054L
MR751545
COVER,FLOOR CONSOLE SIDE,LH
|
MR751545 |
— | ||
|
74054R
|
74054R
MB766501
COVER,FLOOR CONSOLE SIDE,RH
|
MB766501 |
— | ||
|
74054R
|
74054R
MB766502
COVER,FLOOR CONSOLE SIDE,RH
|
MB766502 |
— | ||
|
74054R
|
74054R
MB849846
COVER,FLOOR CONSOLE SIDE,RH
|
MB849846 |
— | ||
|
74054R
|
74054R
MB849849
COVER,FLOOR CONSOLE SIDE,RH
|
MB849849 |
— | ||
|
74054R
|
74054R
MB849850
COVER,FLOOR CONSOLE SIDE,RH
|
MB849850 |
— | ||
|
74054R
|
74054R
MR751547
COVER,FLOOR CONSOLE SIDE,RH
|
MR751547 |
— | ||
|
74054R
|
74054R
MR751548
COVER,FLOOR CONSOLE SIDE,RH
|
MR751548 |
— | ||
|
74059
|
74059
MB766504
COVER,FLOOR CONSOLE,RR
|
MB766504 |
— | ||
|
74059
|
74059
MB766505
COVER,FLOOR CONSOLE,RR
|
MB766505 |
— | ||
|
74059
|
74059
MB849852
COVER,FLOOR CONSOLE,RR
|
MB849852 |
— | ||
|
74059
|
74059
MB849855
COVER,FLOOR CONSOLE,RR
|
MB849855 |
— | ||
|
74059
|
74059
MB849856
COVER,FLOOR CONSOLE,RR
|
MB849856 |
— | ||
|
74059
|
74059
MR751550
COVER,FLOOR CONSOLE,RR
|
MR751550 |
— | ||
|
74059
|
74059
MR751551
COVER,FLOOR CONSOLE,RR
|
MR751551 |
— | ||
|
74061
|
74061
MB604673 CUSHION, FLOOR CONSOLE |
MB604673 |
US $4.24 |
||
|
74064L
|
74064L
MB766507
GARNISH,FLOOR CONSOLE
|
MB766507 |
— | ||
|
74064L
|
74064L
MB970417
GARNISH,FLOOR CONSOLE,LH
|
MB970417 |
— | ||
|
74064R
|
74064R
MB766509
GARNISH,FLOOR CONSOLE
|
MB766509 |
— | ||
|
74064R
|
74064R
MB970419
GARNISH,FLOOR CONSOLE,RH
|
MB970419 |
— | ||
|
74065
|
74065
MB603300 LEVER, FLOOR CONSOLE LID LOCK |
MB603300 |
US $9.71 |
||
|
74066
|
74066
MB766513
LID, FLOOR CONSOLE
|
MB766513 |
— | ||
|
74066
|
74066
MR751557 LID, FLOOR CONSOLE |
MR751557 |
US $213.12 |
||
|
74077B
|
74077B
MB766511
PLUG, FLOOR CONSOLE
|
MB766511 |
— | ||
|
74077B
|
74077B
MR751553 PLUG, FLOOR CONSOLE |
MR751553 |
US $7.93 |
||
|
74077B
|
74077B
MR751554
PLUG,FLOOR CONSOLE
|
MR751554 |
— | ||
|
74077C
|
74077C
MB766467 PLUG, FLOOR CONSOLE |
MB766467 |
US $2.81 |
||
|
74077C
|
74077C
MR751528 PLUG, FLOOR CONSOLE |
MR751528 |
US $2.81 |
||
|
74077C
|
74077C
MR751529
PLUG,FLOOR CONSOLE
|
MR751529 |
— | ||
|
74093
|
74093
MB604489
SPRING, FLOOR CONSOLE LID LOCK LEVER
|
MB604489 |
— | ||
|
74114
|
74114
MB604667
HOLDER, FLOOR CONSOLE BOX CUP
|
MB604667 |
— | ||
|
74182B
|
74182B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
74182C
|
74182C
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
74182D
|
74182D
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
74182D
|
74182D
MR147741
SCREW, FLOOR CONSOLE
|
MR147741 |
— | ||
|
74182E
|
74182E
MF453662 SCREW, FLOOR CONSOLETapping,3x10 |
MF453662 |
US $2.87 |
||
|
74182F
|
74182F
MF453091 SCREW, FUEL FILLER LID LOCKING |
MF453091 |
from US $1.74 |
||
|
74186B
|
74186B
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
74186C
|
74186C
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
74188B
|
74188B
MB692905 CLIP, FLOOR CONSOLE |
MB692905 |
US $4.10 |
||
|
74188C
|
74188C
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
74188C
|
74188C
MB766465 CLIP, RR SEAT |
MB766465 |
US $2.05 |
||
|
74188C
|
74188C
MR227886 CLIP, HEATER DUCT |
MR227886 |
US $3.11 |
||
|
74189
|
74189
MB832367
CAP, RR PILLAR
|
MB832367 |
— | ||
|
74189
|
74189
MB877471
CAP,FLOOR CONSOLE
|
MB877471 |
— | ||
|
74189
|
74189
MB877472
CAP,FLOOR CONSOLE
|
MB877472 |
— | ||
|
74189
|
74189
MR148061
CAP, FLOOR CONSOLE
|
MR148061 |
— | ||
|
74189
|
74189
MR148062
CAP,FLOOR CONSOLE
|
MR148062 |
— | ||
|
74189
|
74189
MR148455
CAP,FLOOR CONSOLE
|
MR148455 |
— | ||
|
74189
|
74189
MR751704
CAP, FLOOR CONSOLE
|
MR751704 |
— | ||
|
74189
|
74189
MR751705
CAP,FLOOR CONSOLE
|
MR751705 |
— | ||
|
74192B
|
74192B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
74192C
|
74192C
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
85334
|
85334
MB604650
PANEL,RADIO
|
MB604650 |
— | ||
|
85334
|
85334
MB604652
PANEL,RADIO
|
MB604652 |
— |
