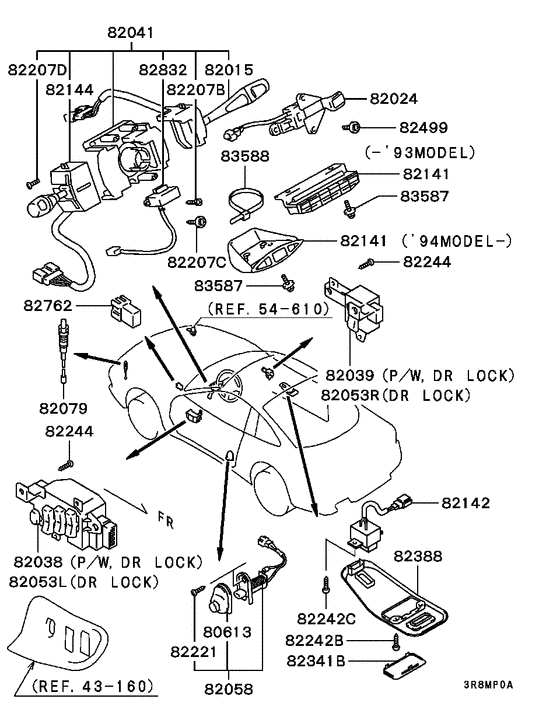

Switch & cigar lighter (SWITCH(COLUMN,P/W,DOOR LAMP)) Diagram Mitsubishi 3000GT
- Year
- 1991 - 1993
- Sales region
- PUERTO RICO&GUAM
- Note
- ULTIMATE LINE,5FM/T FED
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- ULTIMATE LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80613
|
80613
MB070211 COVER, DOOR LAMP SWITCH |
MB070211 |
US $4.38 |
||
|
80613
|
80613
MB628452 CAP, DOOR LAMP SWITCH |
MB628452 |
from US $3.16 |
||
|
82015
|
82015
MB852131
SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER
|
MB852131 |
— | ||
|
82015
|
82015
MR243536
SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER
|
MR243536 |
— | ||
|
82024
|
82024
MB629946 SWITCH, CRUISE CONTROL |
MB629946 |
US $105.82 |
||
|
82024
|
82024
MB903174
SWITCH, CRUISE CONTROL
|
MB903174 |
— | ||
|
82024
|
82024
MB954871 SWITCH, CRUISE CONTROL |
MB954871 |
US $109.52 |
||
|
82038
|
82038
MB775760
SWITCH,FR DOOR POWER WINDOW DRIVER SIDE
|
MB775760 |
— | ||
|
82038
|
82038
MR765623
SWITCH,FR DOOR POWER WINDOW DRIVER SIDE
|
MR765623 |
— | ||
|
82039
|
82039
MB775762
SWITCH,FR DOOR POWER WINDOW ASSISTANT SIDE
|
MB775762 |
— | ||
|
82039
|
82039
MR765624
SWITCH,FR DOOR POWER WINDOW ASSISTANT SIDE
|
MR765624 |
— | ||
|
82041
|
82041
MB629615
SWITCH,STEERING COLUMN
|
MB629615 |
— | ||
|
82041
|
82041
MB629617
SWITCH,STEERING COLUMN
|
MB629617 |
— | ||
|
82041
|
82041
MR228469
SWITCH,STEERING COLUMN
|
MR228469 |
— | ||
|
82053L
|
82053L
MB632215
SWITCH,DOOR LOCK,LH
|
MB632215 |
— | ||
|
82053L
|
82053L
MR138647
SWITCH,DOOR LOCK,LH
|
MR138647 |
— | ||
|
82053R
|
82053R
MB632216
SWITCH,DOOR LOCK,RH
|
MB632216 |
— | ||
|
82053R
|
82053R
MR138647
SWITCH,DOOR LOCK,LH
|
MR138647 |
— | ||
|
82058
|
82058
MB598418 SWITCH KIT, DOOR LAMP18cm |
MB598418 |
US $14.65 |
||
|
82058
|
82058
MB698713 SWITCH KIT, DOOR LAMP1-connector(2p) |
MB698713 |
from US $12.15 |
||
|
82079
|
82079
MB649174
SWITCH, ENG ROOM LAMP
|
MB649174 |
— | ||
|
82141
|
82141
MB903667 SWITCH, STEERING WHEEL REMOTE CONTROL |
MB903667 |
US $378.56 |
||
|
82141
|
82141
MB954870 SWITCH, STEERING WHEEL REMOTE CONTROL |
MB954870 |
US $390.21 |
||
|
82141
|
82141
MR309474
SWITCH,STEERING WHEEL REMOTE CONTROL
|
MR309474 |
— | ||
|
82142
|
82142
MB894676 SWITCH, SUNROOF |
MB894676 |
US $79.92 |
||
|
82144
|
82144
MB852132
SWITCH,TURN SIGNAL LAMP & LIGHTING
|
MB852132 |
— | ||
|
82144
|
82144
MR243533
SWITCH,TURN SIGNAL LAMP & LIGHTING
|
MR243533 |
— | ||
|
82207B
|
82207B
MS450923 SCREW, STEERING WHEELTapping,3x8 |
MS450923 |
US $2.07 |
||
|
82207C
|
82207C
MS350047 SCREW, STEERING COLUMN COVERWasher assembled,5x25 |
MS350047 |
US $2.07 |
||
|
82207D
|
82207D
MB697239 SCREW, STEERING COLUMN SWITCH |
MB697239 |
US $2.22 |
||
|
82221
|
82221
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
82242B
|
82242B
MS450938 SCREW, GRILLE GUARD |
MS450938 |
US $2.05 |
||
|
82242C
|
82242C
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.44 |
||
|
82242C
|
82242C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
82244
|
82244
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
82341B
|
82341B
MR733813 COVER, SUNROOF SWITCH BEZEL |
MR733813 |
US $7.55 |
||
|
82388
|
82388
MR733812 PANEL, SUNROOF SWITCH |
MR733812 |
US $17.76 |
||
|
82499
|
82499
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
82499
|
82499
MS350133 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x12 |
MS350133 |
US $2.52 |
||
|
82762
|
82762
MB629083
RELAY, ABS
|
MB629083 |
— | ||
| replacements | |||||
|
82762
|
82762
8627A011
RELAY (A/T FAIL SAFE CONTROL)
|
8627A011 |
— | ||
|
82762
|
82762
8627A030 RELAY |
8627A030 |
from US $5.97 |
||
|
82832
|
82832
MB629802
SENSOR, STEERING ANGULAR VELOCITY
|
MB629802 |
— | ||
|
83587
|
83587
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
83588
|
83588
MB196675 BAND, GEARSHIFT LINKL=150 |
MB196675 |
US $2.37 |
||
|
