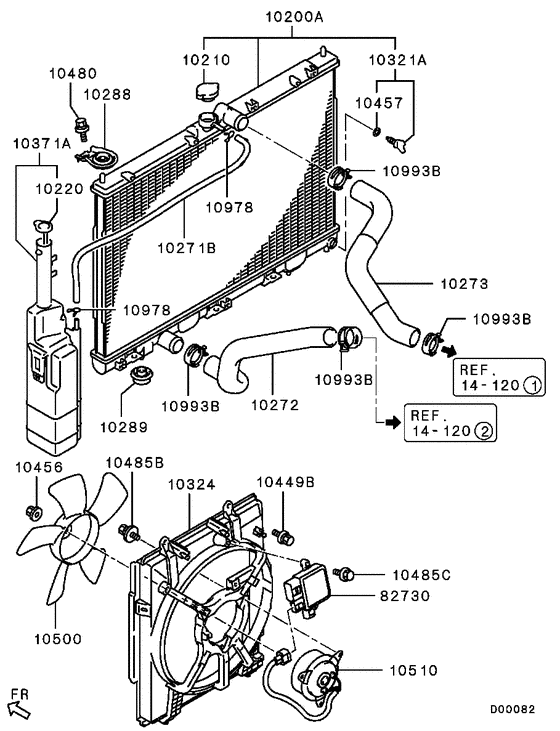

Radiator,hose & condenser tank (W/TURBO) Diagram Mitsubishi AIRTREK/OUTLANDER
- Year
- 2004 - 2009
- Sales region
- EUR
- Note
- TURBO(MPI/4WD/EURO4),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- EURO4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
1350A228
RADIATOR ASSY
|
1350A228 |
— | ||
|
10200A
|
10200A
MN156535
RADIATOR ASSY
|
MN156535 |
— | ||
|
10200A
|
10200A
MR993742
RADIATOR ASSY
|
MR993742 |
— | ||
|
10210
|
10210
MR481252
CAP, RADIATOR
|
MR481252 |
— | ||
| replacement | |||||
|
10210
|
10210
1350A730 CAP, RADIATOR |
1350A730 |
from US $18.68 |
||
|
10220
|
10220
1375A014
CAP,RADIATOR CONDENSER TANK
|
1375A014 |
— | ||
|
10220
|
10220
MR968148 CAP, RADIATOR CONDENSER TANK |
MR968148 |
from US $7.13 |
||
|
10271B
|
10271B
1310A102
HOSE,RADIATOR CONDENSER TANK
|
1310A102 |
— | ||
|
10271B
|
10271B
MR968149 HOSE, RADIATOR CONDENSER TANK |
MR968149 |
US $6.73 |
||
|
10272
|
10272
1370A005
HOSE,RADIATOR,LWR
|
1370A005 |
— | ||
|
10272
|
10272
MN156812
HOSE,RADIATOR,LWR
|
MN156812 |
— | ||
|
10273
|
10273
1370A004
HOSE,RADIATOR,UPR
|
1370A004 |
— | ||
|
10273
|
10273
MR993743
HOSE,RADIATOR,UPR
|
MR993743 |
— | ||
|
10288
|
10288
MR529317 INSULATOR, RADIATOR SUPPORT, UPR |
MR529317 |
from US $9.90 |
||
|
10289
|
10289
MB538926 INSULATOR, RADIATOR SUPPORT, LWR |
MB538926 |
US $7.34 |
||
|
10289
|
10289
MN135618 INSULATOR, RADIATOR SUPPORT, LWR |
MN135618 |
from US $5.09 |
||
|
10321A
|
10321A
MR179933 PLUG ASSY, RADIATOR |
MR179933 |
from US $7.89 |
||
|
10324
|
10324
MN153366 SHROUD, COOLING FAN |
MN153366 |
US $95.04 |
||
|
10324
|
10324
MR312897 SHROUD, COOLING FAN |
MR312897 |
from US $181.44 |
||
|
10371A
|
10371A
1375A012
TANK ASSY,RADIATOR CONDENSER
|
1375A012 |
— | ||
|
10371A
|
10371A
MR968146 TANK ASSY, RADIATOR CONDENSER |
MR968146 |
from US $33.66 |
||
|
10449B
|
10449B
MB605073 BOLT, RADIATORWasher assembled |
MB605073 |
US $1.32 |
||
|
10449B
|
10449B
MN180658 BOLT, RADIATOR |
MN180658 |
from US $1.44 |
||
|
10456
|
10456
MB605081 NUT, RADIATORFlange |
MB605081 |
US $2.38 |
||
|
10457
|
10457
MR212315 O-RING, RADIATOR |
MR212315 |
from US $2.30 |
||
|
10480
|
10480
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.10 |
||
|
10485B
|
10485B
MB890474 SCREW, RADIATOR |
MB890474 |
US $3.04 |
||
|
10485C
|
10485C
MR314800 SCREW, RADIATOR |
MR314800 |
US $2.88 |
||
|
10500
|
10500
MR464708 FAN, COOLING |
MR464708 |
from US $38.28 |
||
|
10510
|
10510
MN180035 MOTOR, COOLING FAN |
MN180035 |
US $342.72 |
||
|
10510
|
10510
MR314719 MOTOR, COOLING FAN |
MR314719 |
US $311.04 |
||
|
10978
|
10978
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.35 |
||
|
10993B
|
10993B
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $3.08 |
||
|
82730
|
82730
1355A124
CONTROL UNIT, COOLING FAN MOTOR DRIVE
|
1355A124 |
— | ||
|
82730
|
82730
MR497751
CONTROL UNIT, COOLING FAN MOTOR DRIVE
|
MR497751 |
— | ||
| replacements | |||||
|
82730
|
82730
1355A124
CONTROL UNIT, COOLING FAN MOTOR DRIVE
|
1355A124 |
— | ||
|
82730
|
82730
1355A408 CONTROL UNIT, COOLING FAN MOTOR DRIVE |
1355A408 |
from US $260.60 |
||
|
82730
|
82730
1355A053
CONTROL UNIT, COOLING FAN MOTOR DRIVE
|
1355A053 |
— | ||
|
