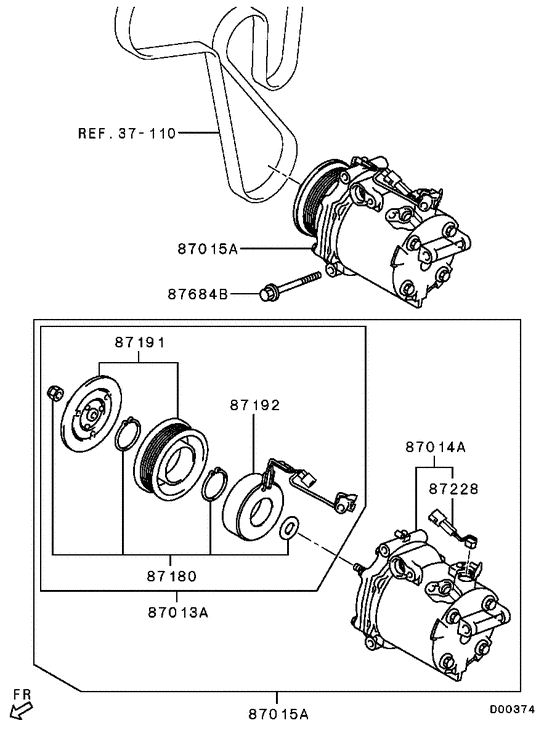

A/c condenser, piping (COMPRESSOR) Diagram Mitsubishi AIRTREK/OUTLANDER
- Year
- 2007 - 2009
- Sales region
- EUR/MMC-PROD.
- Note
- H-LINE(4WD/5SEATER/EURO4/DPF),6FM/T RHD
- drive
- 4WD
- transmission
- 6FM/T
- grade
- H-LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87013A
|
87013A
7813A130 CLUTCH ASSY, A/C COMPRESSOR |
7813A130 |
US $319.72 |
||
|
87014A
|
87014A
7813A128
COMPRESSOR ASSY, A/C
|
7813A128 |
— | ||
|
87014A
|
87014A
7813A129 COMPRESSOR ASSY, A/C |
7813A129 |
US $1,510.10 |
||
|
87015A
|
87015A
7813A068
COMPRESSOR & CLUTCH ASSY, A/C
|
7813A068 |
— | ||
|
87015A
|
87015A
7813A069
COMPRESSOR & CLUTCH ASSY,A/C
|
7813A069 |
— | ||
|
87180
|
87180
MR500330
CLUTCH KIT, A/C COMPRESSOR SERVICE
|
MR500330 |
— | ||
|
87191
|
87191
7813A126
ROTOR & ARMATURE KIT, A/C COMPRESSOR
|
7813A126 |
— | ||
|
87192
|
87192
7813A098
COIL, A/C COMPRESSOR
|
7813A098 |
— | ||
|
87228
|
87228
7813A097
SWITCH, A/C COMPRESSOR REFRIGERANT TEMPERATURE
|
7813A097 |
— | ||
|
87684B
|
87684B
MF140243 BOLT, ROCKER COVERFlange,8x85 |
MF140243 |
from US $3.01 |
||
|
37 110
|
Power steering oil pump
37 110
|
||||
|
37 110
|
Power steering oil pump
37 110
|
||||
