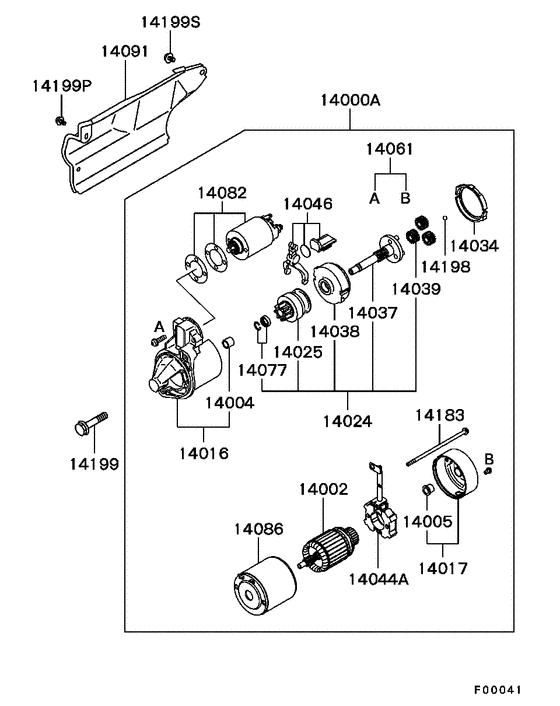

Starter (0207.3-) Diagram Mitsubishi ASPIRE
- Year
- 1998 - 1999
- Sales region
- Japan
- Note
- 24VIENTO,S5FA/T
- drive
- 2WD
- transmission
- S5FA/T
- grade
- 24VIENTO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14000A
|
14000A
MD356178
STARTER ASSY
|
MD356178 |
— | ||
|
14000A
|
14000A
MD362910 STARTER ASSY1.4kw |
MD362910 |
US $778.75 |
||
|
14002
|
14002
MD619550
ARMATURE, STARTER
|
MD619550 |
— | ||
|
14004
|
14004
MD607892 BEARING, STARTER ARMATURE, FR |
MD607892 |
US $2.59 |
||
|
14005
|
14005
MD618334 BEARING, STARTER ARMATURE, RR |
MD618334 |
US $4 |
||
|
14016
|
14016
MD619717
BRACKET, STARTER, FR
|
MD619717 |
— | ||
|
14016
|
14016
MD619756
BRACKET, STARTER, FR
|
MD619756 |
— | ||
|
14017
|
14017
MD619702
BRACKET, STARTER, RR
|
MD619702 |
— | ||
|
14024
|
14024
MD619551
CLUTCH KIT, STARTER PINION & REDUCTION
|
MD619551 |
— | ||
|
14025
|
14025
MD611211 CLUTCH, STARTER OVERRUNNING |
MD611211 |
US $81.47 |
||
|
14034
|
14034
MD611213
GASKET, STARTER INR
|
MD611213 |
— | ||
|
14037
|
14037
MD619094
GEAR, STARTER REDUCTION
|
MD619094 |
— | ||
|
14038
|
14038
MD619552
GEAR, STARTER REDUCTION INTERNAL
|
MD619552 |
— | ||
|
14039
|
14039
MD611210
GEAR, STARTER REDUCTION PINION
|
MD611210 |
— | ||
|
14044A
|
14044A
MD619739
HOLDER ASSY, STARTER BRUSH
|
MD619739 |
— | ||
| replacement | |||||
|
14044A
|
14044A
M321X08076
Holder assy,starter brush
|
M321X08076 |
— | ||
|
14044A
|
14044A
MD619900 HOLDER ASSY, STARTER BRUSH |
MD619900 |
US $41.93 |
||
| replacement | |||||
|
14044A
|
14044A
M321X10276
Holder assy,starter brush
|
M321X10276 |
— | ||
|
14046
|
14046
MD611223
LEVER KIT, STARTER PINION SHIFT
|
MD611223 |
— | ||
|
14061
|
14061
MD607887
SCREW SET, STARTER INR
|
MD607887 |
— | ||
|
14077
|
14077
MD611212
STOPPER KIT, STARTER PINION
|
MD611212 |
— | ||
|
14082
|
14082
MD619203
SWITCH KIT, STARTER MAGNETIC
|
MD619203 |
— | ||
|
14086
|
14086
MD619553
YOKE, STARTER
|
MD619553 |
— | ||
|
14091
|
14091
MD360927 COVER, STARTER |
MD360927 |
US $31.08 |
||
|
14091
|
14091
MD372998 COVER, STARTER |
MD372998 |
US $31.82 |
||
|
14183
|
14183
MD619558
BOLT, STARTER INR
|
MD619558 |
— | ||
|
14183
|
14183
MD619712
BOLT, STARTER INR
|
MD619712 |
— | ||
|
14198
|
14198
MD611214
BALL, STARTER INR
|
MD611214 |
— | ||
|
14199
|
14199
MF140268 BOLT, ENG SUPPORT RODFlange,10x50 |
MF140268 |
from US $2.42 |
||
|
14199P
|
14199P
MS101201 BOLT, A/T VALVE BODY INRFlange,5x10 |
MS101201 |
US $2.74 |
||
|
14199S
|
14199S
MF247222 BOLT, FUEL TANK PROTECTORWasher assembled,6x12 |
MF247222 |
US $1.78 |
||
