Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
03024	03024 MD096940 FLANGE, CRANKSHAFT SPROCKET	MD096940	from US $9.15
03038	03038 MD190863 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD190863	from US $58.03
03064	03064 MD190865 BLADE, CRANKSHAFT ANGLE SENSING	MD190865	from US $7.02
03100	03100 MD327664 CAMSHAFT	MD327664	—
03100	03100 MD371360 CAMSHAFT	MD371360	—
03110	03110 MD314456 BELT,VALVE TIMING	MD314456	US $48.91
03122	03122 MD328475 CYLINDER, CAMSHAFT POSITION SENSING	MD328475	—
	replacement
03122	03122 MD377076 CYLINDER, CAMSHAFT POSITION SENSING	MD377076	—
03122	03122 MD377076 CYLINDER, CAMSHAFT POSITION SENSING	MD377076	—
03166	03166 MD328201 SPRING,TIMING BELT TENSIONER	MD328201	US $3.63
03171	03171 MD318695 SPROCKET,CAMSHAFT	MD318695	—
03173	03173 MD320174 TENSIONER, TIMING BELT	MD320174	from US $60.59
03195	03195 MD158443 PIN, CAMSHAFT Dowel,6x14	MD158443	from US $3.57
03198	03198 M813299 BOLT, FUEL INJECTOR 8x45	M813299	US $2.66
03198	03198 MF241262 BOLT, ENG RH COVER Washer assembled,8x45	MF241262	US $4.10
03258T	03258T MD184291 SPACER, TIMING BELT TRAIN 4	MD184291	US $11.99
	replacement
03258T	03258T MD309036 SPACER, TIMING BELT TRAIN 4	MD309036	from US $7.98
03277	03277 MD162682 BOLT, VALVE GEAR TRAIN Flange,8x35	MD162682	from US $1.56
03282	03282 MF472503 PIN, FLOOR CONSOLE Spring,2x8	MF472503	from US $0.47
03285P	03285P MF140285 BOLT, ENG RR PLATE Flange,12x30	MF140285	from US $1.01
03285S	03285S M973282 BOLT, TIMING BELT TRAIN Flange,8x50	M973282	US $4
03285S	03285S MD321586 BOLT, TIMING BELT TRAIN Flange,8x50	MD321586	US $3.55
03301	03301 MD339767 ADJUSTER, ROCKER ARM LASH	MD339767	US $31.82
03301	03301 MD377561 ADJUSTER, ROCKER ARM LASH	MD377561	US $25.90
03324	03324 MD170377 ROCKER ARM, EXHAUST VALVE	MD170377	—
	replacement
03324	03324 1025A312 ROCKER ARM, EXHAUST VALVE	1025A312	US $51.98
03324	03324 MD319270 ROCKER ARM, EXHAUST VALVE	MD319270	—
03343P	03343P MD160730 ROCKER ARM, INLET VALVE	MD160730	—
	replacement
03343P	03343P 1025A338 ROCKER ARM, INLET VALVE	1025A338	from US $52.14
03343P	03343P MD319268 ROCKER ARM, INLET VALVE	MD319268	—
03343Q	03343Q MD160731 ROCKER ARM, INLET VALVE	MD160731	—
	replacement
03343Q	03343Q 1025A339 ROCKER ARM, INLET VALVE	1025A339	US $76.61
03343Q	03343Q MD319269 ROCKER ARM, INLET VALVE	MD319269	US $43.09
03348	03348 MD167224 SHAFT, INLET VALVE ROCKER ARM	MD167224	US $75.92
03348	03348 MD346958 SHAFT, INLET VALVE ROCKER ARM	MD346958	US $73.19
03349	03349 MD167225 SHAFT, EXHAUST VALVE ROCKER ARM	MD167225	US $76.61
03349	03349 MD346959 SHAFT, EXHAUST VALVE ROCKER ARM	MD346959	US $56.09
03356	03356 MD166768 SPRING, ROCKER SHAFT	MD166768	from US $4.39
03358	03358 MD169459 CAP, ROCKER SHAFT	MD169459	from US $1.93
03405	03405 MD159209 RETAINER, VALVE SPRING	MD159209	from US $4.35
03410	03410 MD162422 VALVE, INLET	MD162422	from US $22.41
03412	03412 MD151527 SEAT, VALVE SPRING	MD151527	from US $1.79
03413	03413 MD351199 SPRING, EXHAUST VALVE	MD351199	US $5.33
03414	03414 MD351199 SPRING, EXHAUST VALVE	MD351199	US $5.33
03420	03420 MD162423 Valve, Exhaust	MD162423	US $35.52
03450	03450 MD151369 LOCK, VALVE SPRING RETAINER	MD151369	from US $0.82
03480	03480 MD184303 SEAL, VALVE STEM Rubber	MD184303	from US $4.95
03490	03490 MD184303 SEAL, VALVE STEM Rubber	MD184303	from US $4.95

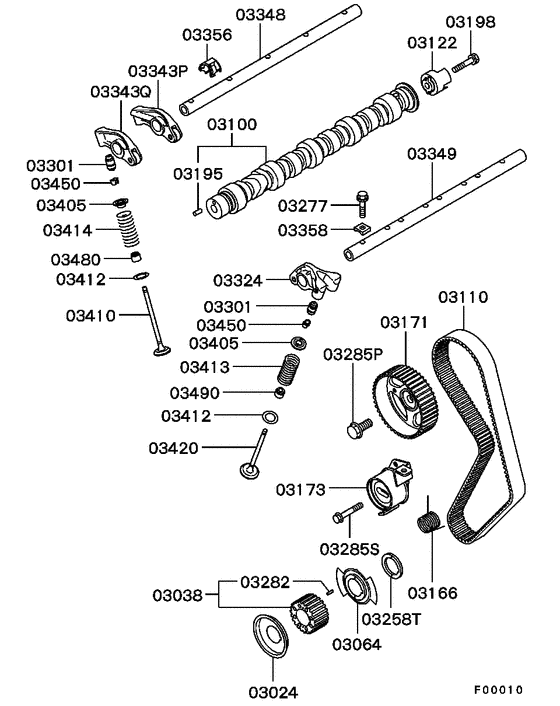

Camshaft & valve (0007.1-) Diagram Mitsubishi CARISMA EUR/NEDCAR 1896561-166613

Camshaft & valve (0007.1-) Diagram Mitsubishi CARISMA EUR/NEDCAR 1896561-166613
