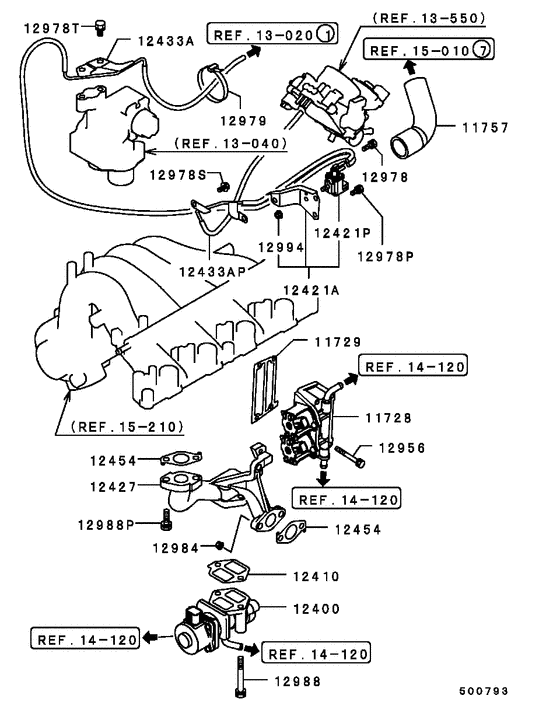

Emission control (DOHC) Diagram Mitsubishi CARISMA
- Year
- 1997 - 2001
- Sales region
- NEDCAR
- Note
- LS(GDI),4FA/T
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11728
|
11728
MD349808 VALVE, AIR BY-PASS |
MD349808 |
US $302.85 |
||
|
11729
|
11729
MD343937 GASKET, AIR BY-PASS VALVE |
MD343937 |
US $3.85 |
||
|
11757
|
11757
MD343938 HOSE, AIR BY-PASS VALVE |
MD343938 |
US $21.46 |
||
|
12400
|
12400
MD349471 VALVE, EGR |
MD349471 |
US $470.29 |
||
|
12410
|
12410
MD183535 GASKET, EGR VALVE |
MD183535 |
US $2.46 |
||
|
12410
|
12410
MD349064 GASKET, EGR VALVE |
MD349064 |
from US $2.75 |
||
|
12421A
|
12421A
MR355658 VALVE ASSY, EMISSION SOLENOID |
MR355658 |
US $87.32 |
||
|
12421P
|
12421P
MR127519 VALVE, EMISSION SOLENOID |
MR127519 |
US $54.72 |
||
|
12427
|
12427
MD351309 SUPPORT, EGR VALVE |
MD351309 |
US $202.76 |
||
|
12433A
|
12433A
MR312909 HOSE & PIPE ASSY, EMISSION CONTROL |
MR312909 |
US $54.76 |
||
|
12433A
|
12433A
MR373867 HOSE & PIPE ASSY, EMISSION CONTROL |
MR373867 |
US $58.46 |
||
|
12433AP
|
12433AP
MR340564 HOSE & PIPE ASSY, EMISSION CONTROL |
MR340564 |
US $19.98 |
||
|
12454
|
12454
MR161680 GASKET, EGR PIPE |
MR161680 |
from US $9.47 |
||
|
12956
|
12956
MF241237 BOLT, ENG OIL PUMPWasher assembled,6x50 |
MF241237 |
US $2.87 |
||
|
12956
|
12956
MF241238 BOLT, COOLING FANWasher assembled,6x55 |
MF241238 |
US $2.52 |
||
|
12978
|
12978
M945358 BOLT, BATTERY WIRING6x12 |
M945358 |
US $1.92 |
||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978
|
12978
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
12978P
|
12978P
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
12978S
|
12978S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
12978S
|
12978S
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
12978T
|
12978T
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
12978T
|
12978T
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
12978T
|
12978T
MF240650 BOLT, P/S OIL PUMPWasher assembled,8x14 |
MF240650 |
US $2.22 |
||
|
12978T
|
12978T
MF241250 BOLT, ELECTRIC FUEL PUMPWasher assembled,8x14 |
MF241250 |
US $2.46 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12984
|
12984
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
12988
|
12988
MF241266 BOLT, THROTTLE BODYWasher assembled,8x65 |
MF241266 |
US $2.46 |
||
|
12988P
|
12988P
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
