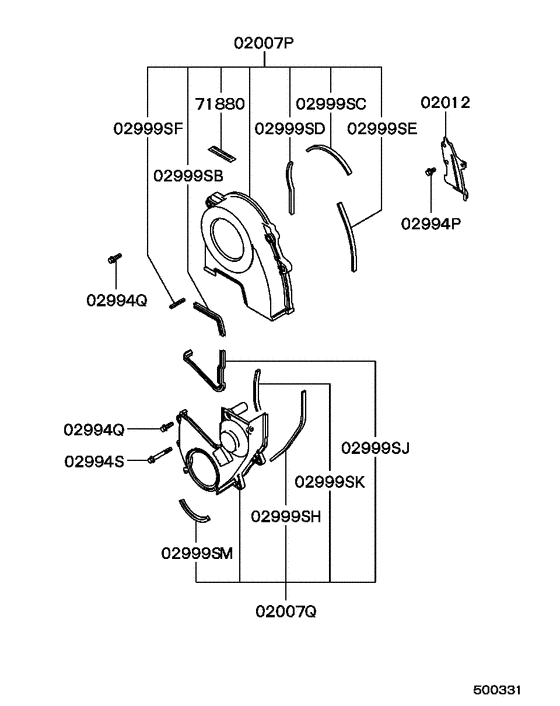

Cover,rear plate & oil pan (SOHC (TIMING BELT COVER)) Diagram Mitsubishi CARISMA
- Year
- 1996 - 1997
- Sales region
- NEDCAR
- Note
- LS,4FA/T
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02007P
|
02007P
MD334541 COVER, TIMING BELT |
MD334541 |
US $79.92 |
||
|
02007P
|
02007P
MD342616 COVER, TIMING BELT |
MD342616 |
US $86.18 |
||
|
02007Q
|
02007Q
MD333742 COVER, TIMING BELT |
MD333742 |
US $82.88 |
||
|
02007Q
|
02007Q
MD342611 COVER, TIMING BELT |
MD342611 |
US $76.61 |
||
|
02012
|
02012
MD309906 COVER, TIMING BELT UNDER |
MD309906 |
US $19.98 |
||
|
02994P
|
02994P
M965175 BOLT, TIMING BELT COVERFlange,6x12 |
M965175 |
US $2.07 |
||
|
02994P
|
02994P
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
02994Q
|
02994Q
M946934 BOLT, TIMING BELT COVERFlange,6x20 |
M946934 |
US $2.22 |
||
|
02994Q
|
02994Q
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
02994S
|
02994S
M965177 BOLT, TIMING BELT COVERFlange,6x50 |
M965177 |
US $3.40 |
||
|
02994S
|
02994S
MF140208 BOLT, CYLINDER BLOCKFlange,6x22 |
MF140208 |
from US $0.80 |
||
|
02994S
|
02994S
MF140217 BOLT, CYLINDER HEADFlange,6x50 |
MF140217 |
from US $1.38 |
||
|
02999SB
|
02999SB
MD301530 GASKET, TIMING BELT COVER |
MD301530 |
US $2.37 |
||
|
02999SB
|
02999SB
MD310719 GASKET, TIMING BELT COVER |
MD310719 |
US $2.22 |
||
|
02999SC
|
02999SC
MD198057 GASKET, TIMING BELT COVER |
MD198057 |
US $3.26 |
||
|
02999SC
|
02999SC
MD310582
GASKET, TIMING BELT COVER
|
MD310582 |
— | ||
|
02999SD
|
02999SD
MD301532 GASKET, TIMING BELT COVER |
MD301532 |
US $2.37 |
||
|
02999SD
|
02999SD
MD307409 GASKET, TIMING BELT COVER |
MD307409 |
US $11.49 |
||
|
02999SE
|
02999SE
MD191941 GASKET, TIMING BELT COVER |
MD191941 |
US $7.11 |
||
|
02999SE
|
02999SE
MD301534 GASKET, TIMING BELT COVER |
MD301534 |
US $2.52 |
||
|
02999SF
|
02999SF
MD198060 GASKET, TIMING BELT COVER |
MD198060 |
US $1.63 |
||
|
02999SF
|
02999SF
MD342844 GASKET, TIMING BELT COVER |
MD342844 |
US $1.04 |
||
|
02999SH
|
02999SH
MD309908 GASKET, TIMING BELT COVER |
MD309908 |
US $4.29 |
||
|
02999SH
|
02999SH
MD310718 GASKET, TIMING BELT COVER |
MD310718 |
US $4.29 |
||
|
02999SJ
|
02999SJ
MD309912 GASKET, TIMING BELT COVER |
MD309912 |
US $3.26 |
||
|
02999SK
|
02999SK
MD198057 GASKET, TIMING BELT COVER |
MD198057 |
US $3.26 |
||
|
02999SM
|
02999SM
MD309913 GASKET, TIMING BELT COVER |
MD309913 |
US $3.40 |
||
|
71880
|
71880
MD194555
LABEL, VALVE TIMING MAINTENANCE
|
MD194555 |
— | ||
| replacement | |||||
|
71880
|
71880
MD310246 LABEL, VALVE TIMING MAINTENANCE |
MD310246 |
US $5.34 |
||
|
71880
|
71880
MD310246 LABEL, VALVE TIMING MAINTENANCE |
MD310246 |
US $5.34 |
||
