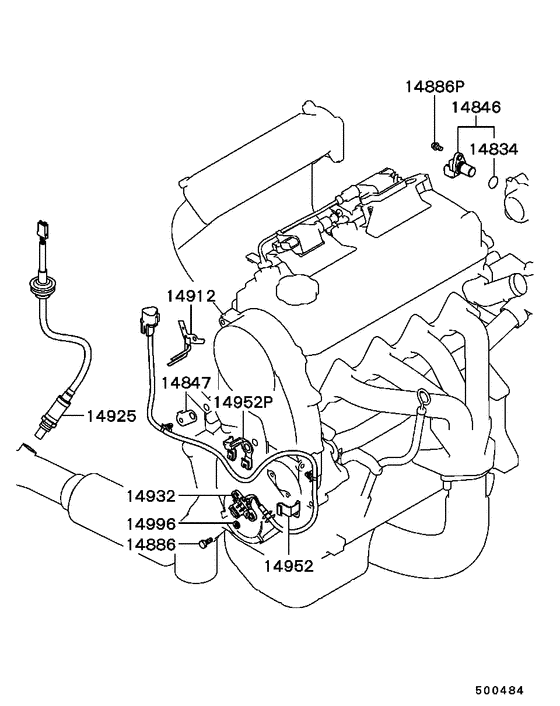

Electrical control (SOHC (CRANK ANGLE SENSOR ETC.)) Diagram Mitsubishi CARISMA
- Year
- 1996 - 1997
- Sales region
- NEDCAR
- Note
- LS,4FA/T
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14834
|
14834
MD622021 O-RING, A/T CASE |
MD622021 |
from US $1.97 |
||
|
14846
|
14846
MD327107
SENSOR, CAMSHAFT POSITION
|
MD327107 |
— | ||
| replacement | |||||
|
14846
|
14846
23731W000P SENSOR, CAMSHAFT POSITION |
23731W000P |
from US $83.91 |
||
|
14847
|
14847
MD327123 STAY, CRANK ANGLE SENSOR |
MD327123 |
US $2.07 |
||
|
14886
|
14886
MD182842
BOLT, CRANK ANGLE SENSOR
|
MD182842 |
— | ||
| replacement | |||||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14886
|
14886
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14886P
|
14886P
M946544 BOLT, ENG OIL COOLER LINEFlange,6x16 |
M946544 |
US $2.37 |
||
|
14886P
|
14886P
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
14912
|
14912
MD338195 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD338195 |
US $4.59 |
||
|
14912
|
14912
MD350751 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD350751 |
US $6.22 |
||
|
14925
|
14925
MD197852 SENSOR, ENG CONTROL OXYGEN |
MD197852 |
US $601.33 |
||
|
14925
|
14925
MD351752 SENSOR, ENG CONTROL OXYGEN |
MD351752 |
US $563.47 |
||
|
14932
|
14932
MD327122
SENSOR, ENG CRANK ANGLE
|
MD327122 |
— | ||
| replacements | |||||
|
14932
|
14932
MR560276 SENSOR, ENG CRANK ANGLE |
MR560276 |
US $144.30 |
||
|
14932
|
14932
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14932
|
14932
MD342994
SENSOR, ENG CRANK ANGLE
|
MD342994 |
— | ||
|
14932
|
14932
MR560229 SENSOR, ENG CRANK ANGLE |
MR560229 |
from US $107.80 |
||
|
14952
|
14952
MD327102 CLIP, CRANK ANGLE SENSOR |
MD327102 |
US $4.14 |
||
|
14952P
|
14952P
MD341135 CLIP, CRANK ANGLE SENSOR |
MD341135 |
US $4.14 |
||
|
14952P
|
14952P
MD352477
CLIP, CRANK ANGLE SENSOR
|
MD352477 |
— | ||
|
14996
|
14996
M906987 WASHER, CRANK ANGLE SENSOR |
M906987 |
US $2.22 |
||
|
14996
|
14996
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
