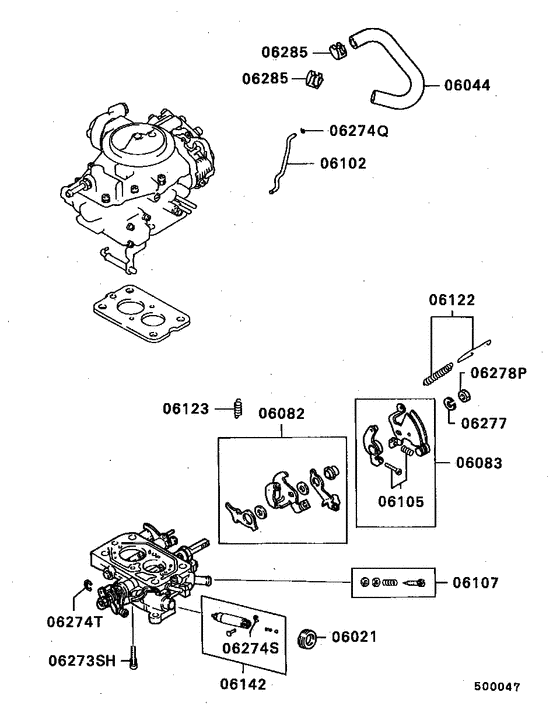

Carburetor (-8405.3 (INNER PARTS LOWER)) Diagram Mitsubishi CHARIOT
- Year
- 1983 - 1984
- Sales region
- Japan
- Note
- ME,SUPER SHIFT
- grade
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06021
|
06021
MD606523
CAP, CARB SUB EGR VALVE
|
MD606523 |
— | ||
|
06044
|
06044
MD608480 HOSE, CARB AUTO CHOKE WATER |
MD608480 |
US $42.92 |
||
|
06082
|
06082
MD612007 LEVER KIT, CARB THROTTLE CONTROL LINK |
MD612007 |
US $84.36 |
||
|
06082
|
06082
MD612044 LEVER KIT, CARB THROTTLE CONTROL LINK |
MD612044 |
US $85.84 |
||
|
06083
|
06083
MD608477 LEVER KIT, CARB THROTTLE |
MD608477 |
US $47.36 |
||
|
06102
|
06102
MD606646 ROD, CARB CHOKE LEVER |
MD606646 |
US $13.32 |
||
|
06102
|
06102
MD606854 ROD, CARB CHOKE LEVER |
MD606854 |
US $18.50 |
||
|
06105
|
06105
MD606517 ADJUSTING SCREW KIT, FAST IDLE |
MD606517 |
US $6.81 |
||
|
06107
|
06107
MD612069 SCREW, CARB INR |
MD612069 |
US $29.60 |
||
|
06107
|
06107
MD612334 SCREW, CARB INR |
MD612334 |
US $29.60 |
||
|
06122
|
06122
MD606647 SPRING KIT, CARB THROTTLE RETURN |
MD606647 |
US $11.10 |
||
|
06123
|
06123
MD606990 SPRING, CARB SECONDARY |
MD606990 |
US $5.92 |
||
|
06142
|
06142
MD606529 VALVE KIT, CARB SUB EGR |
MD606529 |
US $199.80 |
||
|
06142
|
06142
MD606535 VALVE KIT, CARB SUB EGR |
MD606535 |
US $168.72 |
||
|
06273SH
|
06273SH
MF350053 SCREW, CARB INR |
MF350053 |
US $2.07 |
||
|
06274Q
|
06274Q
MD600213 SNAP RING, CARB INR |
MD600213 |
US $4.44 |
||
|
06274S
|
06274S
MD606522 SNAP RING, CARB INR |
MD606522 |
US $4.44 |
||
|
06274T
|
06274T
MD600030 SNAP RING, CARB INR |
MD600030 |
US $3.85 |
||
|
06277
|
06277
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06278P
|
06278P
MD600059 NUT, CARB INR |
MD600059 |
US $3.26 |
||
|
06285
|
06285
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
