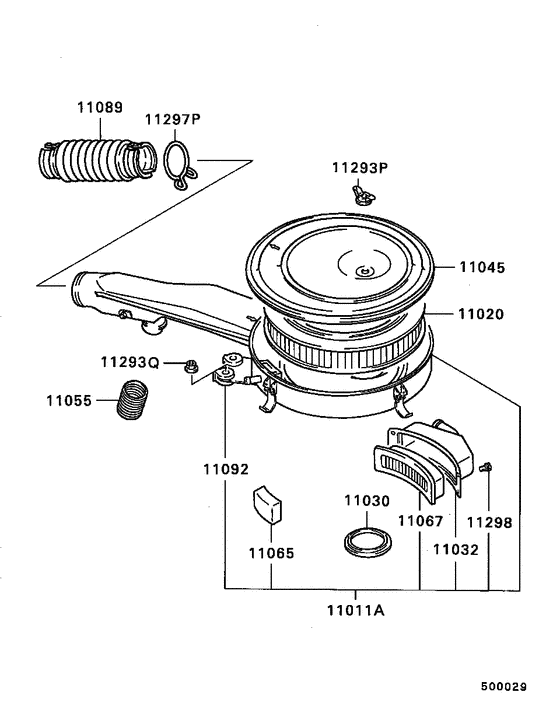

Air cleaner (-8405.3) Diagram Mitsubishi CHARIOT
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- MF,5FM/T(8406-8507)
- transmission
- 5FM/T
- grade
- MF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD603753 BODY ASSY, AIR CLEANER |
MD603753 |
US $304.30 |
||
|
11011A
|
11011A
MD604453 BODY ASSY, AIR CLEANER |
MD604453 |
US $391.66 |
||
|
11020
|
11020
MD603800 ELEMENT, AIR CLEANER |
MD603800 |
US $42.92 |
||
|
11020
|
11020
MD604952 ELEMENT, AIR CLEANER |
MD604952 |
US $53.28 |
||
|
11030
|
11030
MD025181 GASKET, AIR CLEANER TO CARB |
MD025181 |
US $9.44 |
||
|
11030
|
11030
MD025253
GASKET, AIR CLEANER TO CARB
|
MD025253 |
— | ||
|
11032
|
11032
MD603741 CASE, AIR CLEANER SECONDARY AIR FILTER |
MD603741 |
US $45.14 |
||
|
11045
|
11045
MD603742 COVER, AIR CLEANER |
MD603742 |
US $49.58 |
||
|
11045
|
11045
MD604951 COVER, AIR CLEANER |
MD604951 |
US $29.60 |
||
|
11055
|
11055
MD005134
HEAT DUCT, AIR CLEANER
|
MD005134 |
— | ||
|
11065
|
11065
MD603131 FILTER, AIR CLEANER CRANKCASE VENTILATION |
MD603131 |
US $3.11 |
||
|
11067
|
11067
MD603360
FILTER, AIR CLEANER SECONDARY
|
MD603360 |
— | ||
|
11089
|
11089
MD072288 DUCT, AIR CLEANER INTAKE |
MD072288 |
US $23.68 |
||
|
11092
|
11092
MD603744
INSULATOR, AIR CLEANER SUPPORT
|
MD603744 |
— | ||
|
11092
|
11092
MD604456 INSULATOR, AIR CLEANER SUPPORT |
MD604456 |
US $2.52 |
||
|
11293P
|
11293P
MD031789
NUT, AIR CLEANER
|
MD031789 |
— | ||
| replacement | |||||
|
11293P
|
11293P
MD154913 NUT, AIR CLEANERWing,8 |
MD154913 |
from US $5.40 |
||
|
11293Q
|
11293Q
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
11297P
|
11297P
MD040913 CLAMP, AIR CLEANER56 |
MD040913 |
US $6.70 |
||
|
11298
|
11298
MF243601 BOLT, CRUISE CONTROL EQUIPWasher assembled,5x10 |
MF243601 |
US $1.92 |
||
