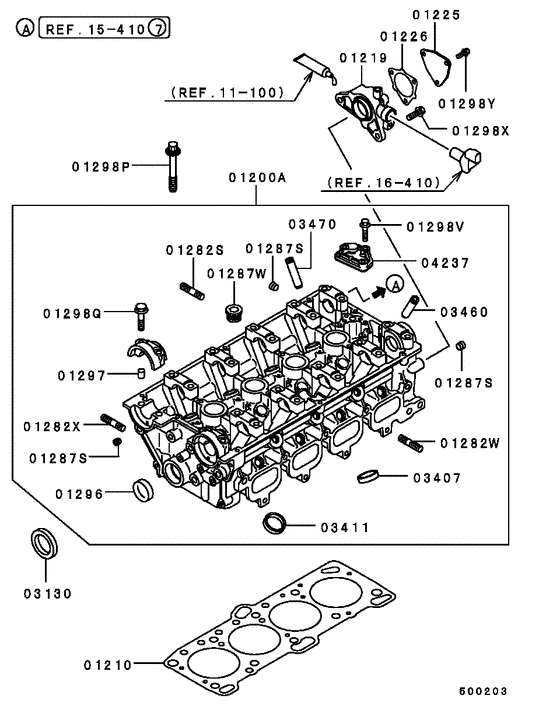

Cylinder head (9605.1- DOHC) Diagram Mitsubishi CHARIOT
- Year
- 1995 - 1997
- Sales region
- Japan
- Note
- RESORT-RUNNER GT(4WD),4FA/T
- drive
- 4WD/4WD
- transmission
- 4FA/T
- grade
- RESORT-RUNNER G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01200A
|
01200A
MD132552 HEAD ASSY, ENG CYLINDER |
MD132552 |
US $2,188.80 |
||
|
01200A
|
01200A
MD188068 HEAD ASSY, ENG CYLINDER |
MD188068 |
US $2,664 |
||
|
01200A
|
01200A
MD305663
HEAD ASSY, ENG CYLINDER
|
MD305663 |
— | ||
|
01200A
|
01200A
MD327728 HEAD ASSY, ENG CYLINDER |
MD327728 |
US $2,347.20 |
||
|
01200A
|
01200A
MD334948 HEAD ASSY, ENG CYLINDER |
MD334948 |
US $2,275.20 |
||
|
01210
|
01210
MD040533 GASKET, CYLINDER HEAD |
MD040533 |
US $44.40 |
||
|
01210
|
01210
MD183808 GASKET, CYLINDER HEAD |
MD183808 |
from US $89.82 |
||
|
01210
|
01210
MD186334 GASKET, CYLINDER HEAD |
MD186334 |
US $118.40 |
||
|
01210
|
01210
MD199174 GASKET, CYLINDER HEAD |
MD199174 |
US $105.82 |
||
|
01219
|
01219
MD329501 SUPPORT, CAMSHAFT POSITION SENSOR |
MD329501 |
US $73.26 |
||
|
01219
|
01219
MD344722 SUPPORT, CAMSHAFT POSITION SENSOR |
MD344722 |
US $80.03 |
||
|
01225
|
01225
MD329502 COVER, CAMSHAFT POSITION SENSOR SUPPORT |
MD329502 |
US $8.76 |
||
|
01226
|
01226
MD329503 GASKET, CAMSHAFT POSITION SENSOR SUPPORT COVER |
MD329503 |
from US $3.14 |
||
|
01282S
|
01282S
MD005317 STUD, CYLINDER HEAD8x28 |
MD005317 |
from US $2.11 |
||
|
01282S
|
01282S
MD146938 STUD, CYLINDER HEAD10x28 |
MD146938 |
from US $2.46 |
||
|
01282W
|
01282W
MS401452 STUD, CYLINDER HEAD10x30 |
MS401452 |
from US $2.52 |
||
|
01282X
|
01282X
MD146938 STUD, CYLINDER HEAD10x28 |
MD146938 |
from US $2.46 |
||
|
01287S
|
01287S
MS661140 PLUG, CYLINDER HEADTaper,1/8 |
MS661140 |
US $3.15 |
||
|
01287S
|
01287S
MS661162 PLUG, INLET MANIFOLDTaper,3/8 |
MS661162 |
from US $3.43 |
||
|
01287W
|
01287W
MD122446 PLUG, CYLINDER HEADScrew,22 |
MD122446 |
US $9.92 |
||
|
01296
|
01296
MD000427
CAP, CYLINDER HEAD
|
MD000427 |
— | ||
| replacement | |||||
|
01296
|
01296
MF665542 CAP, CYLINDER BLOCKSealing,40 |
MF665542 |
from US $3.01 |
||
|
01296
|
01296
MF665541 CAP, CYLINDER BLOCK (HEAD)Sealing,35 |
MF665541 |
from US $1.31 |
||
|
01297
|
01297
MD009347 BUSHING, CYLINDER HEAD10x8 |
MD009347 |
US $1.78 |
||
|
01297
|
01297
MD132806 BUSHING, CYLINDER HEAD10x12 |
MD132806 |
US $2.46 |
||
|
01298P
|
01298P
MD040514 BOLT, CYLINDER HEAD12x105 |
MD040514 |
from US $5.01 |
||
|
01298P
|
01298P
MD191470 BOLT, CYLINDER HEADWasher assembled,11x97 |
MD191470 |
from US $4.29 |
||
|
01298Q
|
01298Q
MD009350 BOLT, CYLINDER HEADFlange,8x65 |
MD009350 |
US $3.55 |
||
|
01298Q
|
01298Q
MS101353 BOLT, CYLINDER HEADFlange,8x38 |
MS101353 |
from US $1.89 |
||
|
01298V
|
01298V
MF140209 BOLT, ROCKER COVERFlange,6x25 |
MF140209 |
from US $0.84 |
||
|
01298X
|
01298X
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
01298X
|
01298X
MF140026 BOLT, OIL FILTERFlange,8x22 |
MF140026 |
from US $0.84 |
||
|
01298Y
|
01298Y
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
03130
|
03130
MD153103
OIL SEAL, CAMSHAFT
|
MD153103 |
— | ||
| replacement | |||||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
03407
|
03407
MD024441 SEAT, EXHAUST VALVEO/size 0.30 |
MD024441 |
US $25.90 |
||
|
03407
|
03407
MD024442 SEAT, EXHAUST VALVEO/size 0.60 |
MD024442 |
US $25.90 |
||
|
03407
|
03407
MD169655 SEAT, EXHAUST VALVEO/size 0.30 |
MD169655 |
from US $31.45 |
||
|
03407
|
03407
MD169656
SEAT, EXHAUST VALVE
|
MD169656 |
— | ||
|
03407
|
03407
MD188579 SEAT, EXHAUST VALVEO/size 0.30 |
MD188579 |
from US $23.50 |
||
|
03407
|
03407
MD188580 SEAT, EXHAUST VALVEO/size 0.60 |
MD188580 |
US $31.08 |
||
|
03411
|
03411
MD024414 SEAT, INLET VALVEO/size 0.30 |
MD024414 |
US $25.90 |
||
|
03411
|
03411
MD024415 SEAT, INLET VALVEO/size 0.60 |
MD024415 |
US $25.90 |
||
|
03411
|
03411
MD169831 SEAT, INLET VALVEO/size 0.30 |
MD169831 |
US $43.78 |
||
|
03411
|
03411
MD169832
SEAT, INLET VALVE
|
MD169832 |
— | ||
|
03411
|
03411
MD191384 SEAT, INLET VALVEO/size 0.30 |
MD191384 |
from US $27.28 |
||
|
03411
|
03411
MD191385 SEAT, INLET VALVEO/size 0.60 |
MD191385 |
US $31.08 |
||
|
03460
|
03460
MD020551 GUIDE, INLET VALVEO/size 0.05 |
MD020551 |
from US $5.88 |
||
|
03460
|
03460
MD020552 GUIDE, INLET VALVEO/size 0.25 |
MD020552 |
US $6.36 |
||
|
03460
|
03460
MD020553 GUIDE, INLET VALVEO/size 0.50 |
MD020553 |
US $6.36 |
||
|
03460
|
03460
MD126605 GUIDE, INLET VALVEO/size 0.05 |
MD126605 |
US $22.94 |
||
|
03460
|
03460
MD126606 GUIDE, INLET VALVEO/size 0.50 |
MD126606 |
US $22.94 |
||
|
03460
|
03460
MD128844 GUIDE, INLET VALVEO/size 0.25 |
MD128844 |
US $22.94 |
||
|
03460
|
03460
MD172527 GUIDE, INLET VALVEO/size 0.05 |
MD172527 |
US $42.92 |
||
|
03460
|
03460
MD172528 GUIDE, INLET VALVEO/size 0.25 |
MD172528 |
US $42.92 |
||
|
03460
|
03460
MD172529 GUIDE, INLET VALVEO/size 0.50 |
MD172529 |
US $36.26 |
||
|
03460
|
03460
MD300702 GUIDE, INLET VALVEO/size 0.05 |
MD300702 |
from US $19.87 |
||
|
03460
|
03460
MD300703 GUIDE, INLET VALVEO/size 0.25 |
MD300703 |
US $30.34 |
||
|
03460
|
03460
MD300704 GUIDE, INLET VALVEO/size 0.50 |
MD300704 |
US $30.34 |
||
|
03470
|
03470
MD020561 GUIDE, EXHAUST VALVEO/size 0.05 |
MD020561 |
from US $7.80 |
||
|
03470
|
03470
MD020562 GUIDE, EXHAUST VALVEO/size 0.25 |
MD020562 |
US $8.44 |
||
|
03470
|
03470
MD020563 GUIDE, EXHAUST VALVEO/size 0.50 |
MD020563 |
US $8.44 |
||
|
03470
|
03470
MD126608
GUIDE, EXHAUST VALVE
|
MD126608 |
— | ||
| replacement | |||||
|
03470
|
03470
MD372795 GUIDE, EXHAUST VALVEO/size 0.05 |
MD372795 |
from US $32.15 |
||
|
03470
|
03470
MD126609 GUIDE, EXHAUST VALVEO/size 0.50 |
MD126609 |
US $22.94 |
||
|
03470
|
03470
MD128845 GUIDE, EXHAUST VALVEO/size 0.25 |
MD128845 |
US $22.94 |
||
|
03470
|
03470
MD172530 GUIDE, EXHAUST VALVEO/size 0.05 |
MD172530 |
from US $32.14 |
||
|
03470
|
03470
MD172531 GUIDE, EXHAUST VALVEO/size 0.25 |
MD172531 |
US $32.56 |
||
|
03470
|
03470
MD172532 GUIDE, EXHAUST VALVEO/size 0.50 |
MD172532 |
US $32.56 |
||
|
04237
|
04237
MD167599 BODY, LASH ADJUSTER OIL DELIVERY |
MD167599 |
US $26.64 |
||
|
