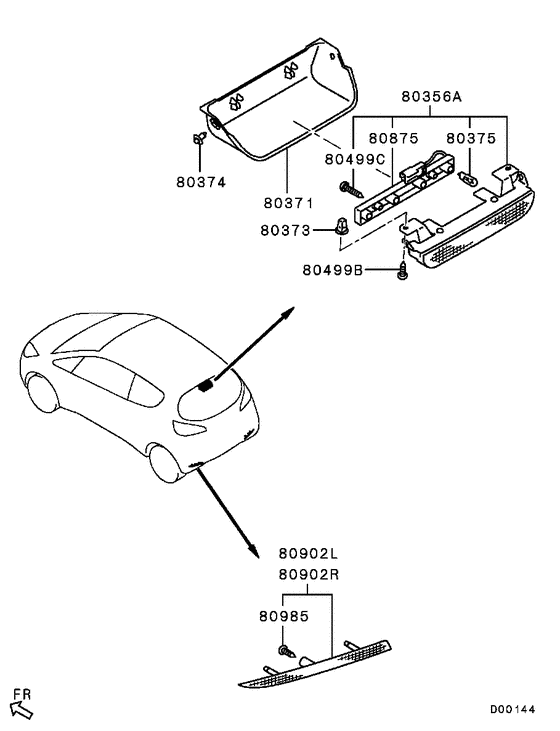

Rear exterior lamp (HIGH MOUNTED STOP LAMP,REFLECTOR -0809.3) Diagram Mitsubishi COLT
- Year
- 2005 - 2007
- Sales region
- EUR/NEDCAR
- Note
- L(MPI),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- L
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80356A
|
80356A
MR957377
LAMP ASSY,HIGH MOUNTED STOP
|
MR957377 |
— | ||
|
80371
|
80371
MR957380
COVER,HIGH MOUNTED STOP LAMP
|
MR957380 |
— | ||
|
80373
|
80373
MU480032 GROMMET, SIDE AIR DAM5 |
MU480032 |
from US $0.96 |
||
|
80374
|
80374
7259A004
CLIP,STOP LAMP
|
7259A004 |
— | ||
|
80375
|
80375
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80499B
|
80499B
MU010328
SCREW,TAILGATE TRIM
|
MU010328 |
— | ||
|
80499C
|
80499C
8334A016
SCREW,STOP LAMP
|
8334A016 |
— | ||
|
80875
|
80875
8334A022
SOCKET,STOP LAMP
|
8334A022 |
— | ||
|
80902L
|
80902L
MN186277
REFLECTOR KIT,RR LAMP,LH
|
MN186277 |
— | ||
|
80902R
|
80902R
MN186278
REFLECTOR KIT,RR LAMP,RH
|
MN186278 |
— | ||
|
80985
|
80985
MU010329
SCREW,CARGO FLOOR
|
MU010329 |
— |
