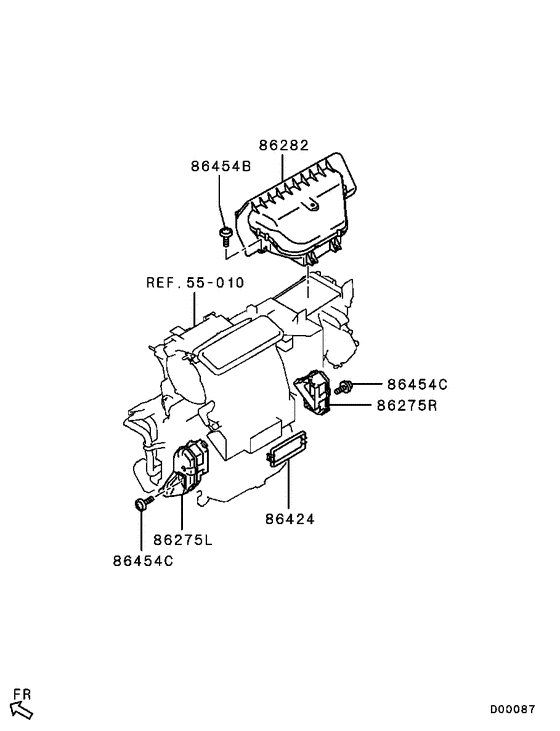

Ventilation & duct (FRONT) Diagram Mitsubishi COLT
- Year
- 2006 - 2008
- Sales region
- EUR/PF
- Note
- M(MPI),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86275L
|
86275L
MN901978
DUCT,FOOT HEATER,LH
|
MN901978 |
— | ||
|
86275R
|
86275R
MN901979
DUCT,FOOT HEATER,RH
|
MN901979 |
— | ||
|
86282
|
86282
MR568914
DUCT,HEATER AIR INTAKE
|
MR568914 |
— | ||
|
86424
|
86424
MR568968
PLUG,RR HEATER
|
MR568968 |
— | ||
|
86454B
|
86454B
MU010576
SCREW,HEATER
|
MU010576 |
— | ||
|
86454C
|
86454C
MU010576
SCREW,HEATER
|
MU010576 |
— | ||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
