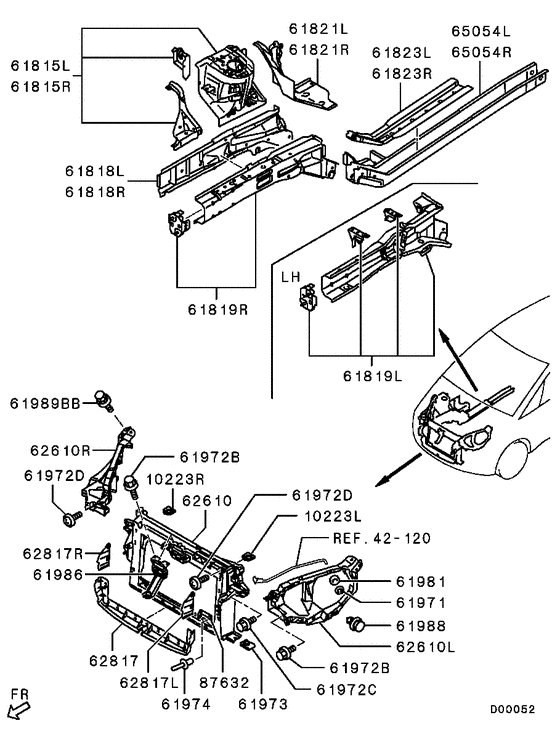

Front end panel Diagram Mitsubishi COLT
- Year
- 2006 - 2008
- Sales region
- EUR/PF
- Note
- H(MPI-TURBO),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- H
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10223L
|
10223L
MN105686
BRACKET,RADIATOR,LWR LH
|
MN105686 |
— | ||
|
10223R
|
10223R
MN105686
BRACKET,RADIATOR,LWR LH
|
MN105686 |
— | ||
|
61815L
|
61815L
MN161421
WHEELHOUSE,FR INR LH
|
MN161421 |
— | ||
| replacement | |||||
|
61815L
|
61815L
5220D649
WHEELHOUSE,FR INR LH
|
5220D649 |
— | ||
|
61815R
|
61815R
MN161422
WHEELHOUSE,FR INR RH
|
MN161422 |
— | ||
| replacement | |||||
|
61815R
|
61815R
5220D650
WHEELHOUSE,FR INR RH
|
5220D650 |
— | ||
|
61818L
|
61818L
MN161431
SIDEMEMBER,FR OTR LH
|
MN161431 |
— | ||
| replacement | |||||
|
61818L
|
61818L
5220D357
SIDEMEMBER,FR OTR LH
|
5220D357 |
— | ||
|
61818R
|
61818R
MN161432
SIDEMEMBER,FR OTR RH
|
MN161432 |
— | ||
|
61819L
|
61819L
MN161435
SIDEMEMBER,FR INR LH
|
MN161435 |
— | ||
| replacement | |||||
|
61819L
|
61819L
5220D659
SIDEMEMBER,FR INR LH
|
5220D659 |
— | ||
|
61819R
|
61819R
MN301555
SIDEMEMBER,FR INR RH
|
MN301555 |
— | ||
|
61821L
|
61821L
MN300526
EXTENSION,FR SIDEMEMBER,LH
|
MN300526 |
— | ||
|
61821R
|
61821R
MN300527
EXTENSION,FR SIDEMEMBER,RH
|
MN300527 |
— | ||
|
61823L
|
61823L
MN161449
REINFORCEMENT,FR SIDEMEMBER,RR LH
|
MN161449 |
— | ||
|
61823R
|
61823R
MN161450
REINFORCEMENT,FR SIDEMEMBER,RR RH
|
MN161450 |
— | ||
|
61971
|
61971
MN105733
SNAP RING,FR END STRUCTURE
|
MN105733 |
— | ||
|
61972B
|
61972B
MU010680
SCREW,FR END STRUCTURE
|
MU010680 |
— | ||
|
61972C
|
61972C
MU010006 SCREW,RR BUMPER |
MU010006 |
US $0.25 |
||
|
61972D
|
61972D
MU010575
SCREW,STEERING COLUMN COVER
|
MU010575 |
— | ||
|
61973
|
61973
MU010706
NUT,FR END STRUCTURE
|
MU010706 |
— | ||
|
61974
|
61974
5256A083
RIVET,FR END STRUCTURE
|
5256A083 |
— | ||
|
61981
|
61981
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
61986
|
61986
5256A432
STAY,FR END STRUCTURE
|
5256A432 |
— | ||
|
61988
|
61988
5910A008
CLIP,FR END STRUCTURE
|
5910A008 |
— | ||
|
61989BB
|
61989BB
MU010646
BOLT,FR END STRUCTURE
|
MU010646 |
— | ||
|
62610
|
62610
MN105057
SUPPORT,HEADLAMP
|
MN105057 |
— | ||
| replacement | |||||
|
62610
|
62610
5256A541
SUPPORT,HEADLAMP
|
5256A541 |
— | ||
|
62610L
|
62610L
MN105059
SUPPORT,HEADLAMP,LH
|
MN105059 |
— | ||
|
62610R
|
62610R
MN105060
SUPPORT,HEADLAMP,RH
|
MN105060 |
— | ||
|
62817
|
62817
MN152085
PANEL,AIR GUIDE
|
MN152085 |
— | ||
|
62817L
|
62817L
MN152084
PANEL,AIR GUIDE,LH
|
MN152084 |
— | ||
|
62817R
|
62817R
MN152084
PANEL,AIR GUIDE,LH
|
MN152084 |
— | ||
|
65054L
|
65054L
MN161439
SIDEMEMBER,FR FLOOR,LH
|
MN161439 |
— | ||
|
65054R
|
65054R
MN161440
SIDEMEMBER,FR FLOOR,RH
|
MN161440 |
— | ||
|
87632
|
87632
5256A043
BRACKET,A/C AIR OUTLET TEMPERATURE SENSOR
|
5256A043 |
— | ||
