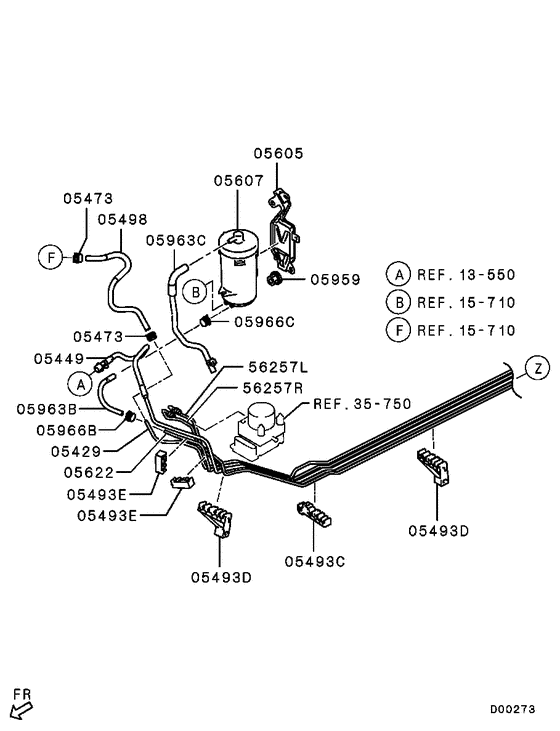

Fuel line & vapor gas control (FRONT) Diagram Mitsubishi COLT
- Year
- 2006 - 2008
- Sales region
- EUR/PF
- Note
- H(MPI-TURBO),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- H
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05429
|
05429
MN155846
PIPE,FUEL RETURN
|
MN155846 |
— | ||
|
05449
|
05449
MN176305
PIPE,FUEL LINE
|
MN176305 |
— | ||
|
05473
|
05473
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05493C
|
05493C
MN155848
CLIP,FUEL LINE
|
MN155848 |
— | ||
|
05493D
|
05493D
MN155849
CLIP,FUEL LINE
|
MN155849 |
— | ||
|
05493E
|
05493E
MN155847
CLIP,FUEL LINE
|
MN155847 |
— | ||
|
05498
|
05498
1741A300
HOSE,FUEL RETURN LINE
|
1741A300 |
— | ||
|
05605
|
05605
1780A050
BRACKET,FUEL VAPOR CANISTER
|
1780A050 |
— | ||
|
05605
|
05605
MR993307
BRACKET,FUEL VAPOR CANISTER
|
MR993307 |
— | ||
|
05607
|
05607
MN183154
CANISTER,FUEL VAPOR
|
MN183154 |
— | ||
|
05622
|
05622
MR993361
PIPE,FUEL VAPOR
|
MR993361 |
— | ||
|
05959
|
05959
MU010357
NUT,TAILGATE HINGE
|
MU010357 |
— | ||
|
05963B
|
05963B
1742A111
HOSE,FUEL VAPOR CONTROL LINE
|
1742A111 |
— | ||
|
05966B
|
05966B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966C
|
05966C
MS660162 CLIP, FUEL TANKD=11 |
MS660162 |
US $2.81 |
||
|
56257L
|
56257L
MN102801
TUBE,BRAKE MAIN
|
MN102801 |
— | ||
|
56257R
|
56257R
4650A252
TUBE,BRAKE MAIN,LH
|
4650A252 |
— | ||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
35 750
|
Modulator
35 750
|
||||
