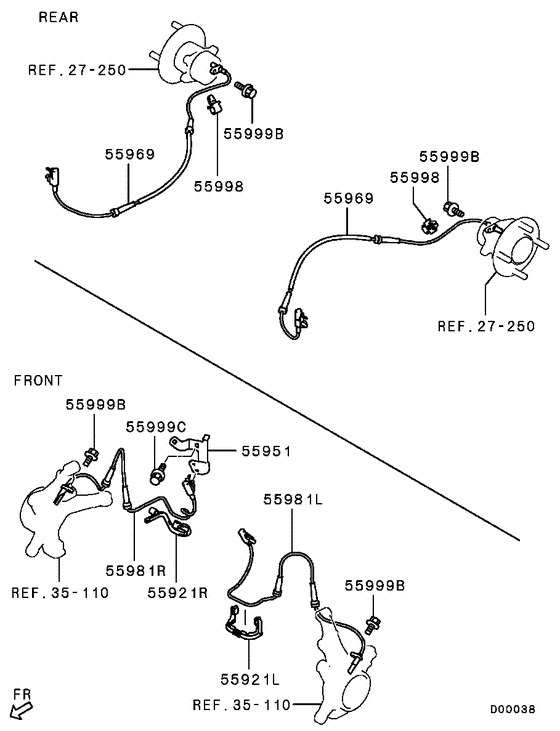

Anti-skid brake sensor (ALL) Diagram Mitsubishi COLT
- Year
- 2005 - 2008
- Sales region
- EUR/NEDCAR
- Note
- L/M(TURBO),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- L/M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55921L
|
55921L
MN116463
PROTECTOR,ABS SENSOR HEAT,LH
|
MN116463 |
— | ||
|
55921R
|
55921R
MN116325
PROTECTOR,ABS SENSOR HEAT,RH
|
MN116325 |
— | ||
|
55951
|
55951
MN116326
BRACKET,ABS SENSOR
|
MN116326 |
— | ||
|
55969
|
55969
MR955037
SENSOR,RR ABS
|
MR955037 |
— | ||
|
55981L
|
55981L
MN102857
SENSOR,FR ABS
|
MN102857 |
— | ||
|
55981R
|
55981R
MN116462
SENSOR,FR ABS,RH
|
MN116462 |
— | ||
|
55998
|
55998
MU481053 CLIP, CHOKE CABLE5 |
MU481053 |
US $3.01 |
||
|
55999B
|
55999B
MU010115 BOLT, COOLING WATER LINEM6x12 |
MU010115 |
US $1.04 |
||
|
55999C
|
55999C
MU010116 BOLT, GLOW CONTROL EQUIPM6x16 |
MU010116 |
US $1.04 |
||
|
27 250
|
Rear axle hub & drum
27 250
|
||||
|
35 110
|
Front wheel brake
35 110
|
||||
|
35 110
|
Front wheel brake
35 110
|
||||
