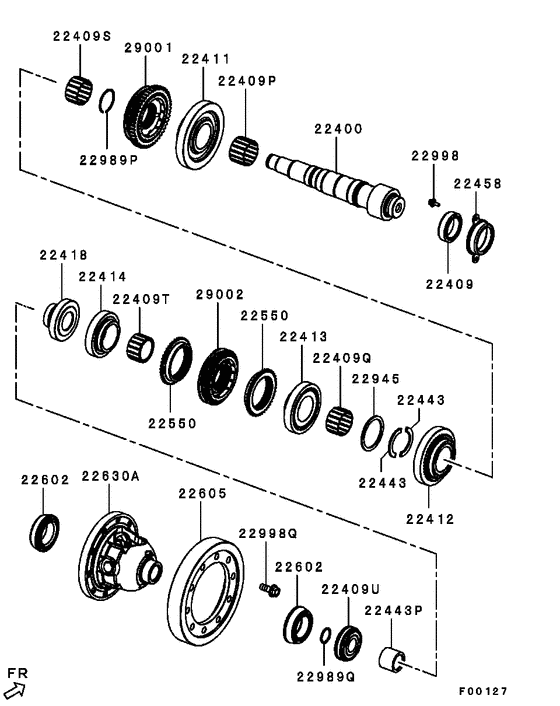

M/t gear (ALL (OUTPUT SHAFT & DIFF CASE)) Diagram Mitsubishi COLT
- Year
- 2005 - 2008
- Sales region
- EUR/NEDCAR
- Note
- L/M(TURBO),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- L/M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22400
|
22400
2960A284 SHAFT, M/T OUTPUT |
2960A284 |
US $282.68 |
||
|
22409
|
22409
2960A271 BEARING, M/T OUTPUT SHAFT |
2960A271 |
US $27.36 |
||
|
22409P
|
22409P
2960A286 BEARING, M/T OUTPUT SHAFT |
2960A286 |
US $34.04 |
||
|
22409Q
|
22409Q
2960A290 BEARING, M/T OUTPUT SHAFT |
2960A290 |
US $34.04 |
||
|
22409S
|
22409S
2960A290 BEARING, M/T OUTPUT SHAFT |
2960A290 |
US $34.04 |
||
|
22409T
|
22409T
2960A298 BEARING, M/T OUTPUT SHAFT |
2960A298 |
US $34.04 |
||
|
22409U
|
22409U
2960A274 BEARING, M/T CASE |
2960A274 |
from US $33.15 |
||
|
22411
|
22411
2960A318 GEAR, M/T OUTPUT SHAFT 1ST SPEED |
2960A318 |
US $130.24 |
||
|
22412
|
22412
2960A289 GEAR, M/T OUTPUT SHAFT 2ND SPEED |
2960A289 |
US $156.88 |
||
|
22413
|
22413
2960A319 GEAR, M/T OUTPUT SHAFT 3RD SPEED |
2960A319 |
US $136.16 |
||
|
22414
|
22414
2960A320 GEAR, M/T OUTPUT SHAFT 4TH SPEED |
2960A320 |
US $136.16 |
||
|
22418
|
22418
2960A321 GEAR, M/T OUTPUT SHAFT 5TH SPEED |
2960A321 |
US $93.98 |
||
|
22443
|
22443
2960A291 SPACER, M/T OUTPUT SHAFT |
2960A291 |
US $4.92 |
||
|
22443P
|
22443P
2960A282 SPACER, M/T INPUT SHAFT |
2960A282 |
US $5.48 |
||
|
22458
|
22458
2960A270 RING, M/T OUTPUT SHAFT BEARING, OTR |
2960A270 |
US $32.15 |
||
|
22550
|
22550
2960A296 RING, M/T 3RD & 4TH SYNCH |
2960A296 |
US $56.09 |
||
|
22602
|
22602
2960A413 BEARING, M/T DIFF CASE |
2960A413 |
from US $98.22 |
||
|
22605
|
22605
2960A305 GEAR, M/T DIFF DRIVE |
2960A305 |
US $143.56 |
||
|
22630A
|
22630A
2960A303 DIFFERENTIAL & GEAR ASSY, M/T |
2960A303 |
US $607.15 |
||
|
22945
|
22945
2960A292 RING, M/T POWER TRAIN |
2960A292 |
US $5.18 |
||
|
22989P
|
22989P
2960A361 SNAP RING, M/T POWER TRAIN |
2960A361 |
US $5.92 |
||
|
22989P
|
22989P
2960A362 SNAP RING, M/T POWER TRAIN |
2960A362 |
US $5.92 |
||
|
22989P
|
22989P
2960A363 SNAP RING, M/T POWER TRAIN |
2960A363 |
US $5.92 |
||
|
22989P
|
22989P
2960A364 SNAP RING, M/T POWER TRAIN |
2960A364 |
US $5.92 |
||
|
22989P
|
22989P
2960A365 SNAP RING, M/T POWER TRAIN |
2960A365 |
US $5.92 |
||
|
22989P
|
22989P
2960A366 SNAP RING, M/T POWER TRAIN |
2960A366 |
US $5.92 |
||
|
22989P
|
22989P
2960A367 SNAP RING, M/T POWER TRAIN |
2960A367 |
US $5.92 |
||
|
22989P
|
22989P
2960A368 SNAP RING, M/T POWER TRAIN |
2960A368 |
US $5.92 |
||
|
22989Q
|
22989Q
2960A341 SNAP RING, M/T POWER TRAIN |
2960A341 |
from US $4.64 |
||
|
22989Q
|
22989Q
2960A342 SNAP RING, M/T POWER TRAIN |
2960A342 |
US $7.39 |
||
|
22989Q
|
22989Q
2960A343 SNAP RING, M/T POWER TRAIN |
2960A343 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A344 SNAP RING, M/T POWER TRAIN |
2960A344 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A345 SNAP RING, M/T POWER TRAIN |
2960A345 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A346 SNAP RING, M/T POWER TRAIN |
2960A346 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A347 SNAP RING, M/T POWER TRAIN |
2960A347 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A348 SNAP RING, M/T POWER TRAIN |
2960A348 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A350 SNAP RING, M/T POWER TRAIN |
2960A350 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A351 SNAP RING, M/T POWER TRAIN |
2960A351 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A352 SNAP RING, M/T POWER TRAIN |
2960A352 |
US $4.44 |
||
|
22989Q
|
22989Q
2960A353 SNAP RING, M/T POWER TRAIN |
2960A353 |
US $4.44 |
||
|
22998
|
22998
2960A180 BOLT, M/T POWER TRAIN |
2960A180 |
US $8.62 |
||
|
22998Q
|
22998Q
2960A304 BOLT, M/T POWER TRAIN |
2960A304 |
US $2.07 |
||
|
29001
|
29001
2960A287 SYNCHRONIZER UNIT, M/T 1ST & 3RD GEAR |
2960A287 |
US $138.38 |
||
|
29002
|
29002
2960A295 SYNCHRONIZER UNIT, M/T 2ND & 4TH GEAR |
2960A295 |
US $304.20 |
