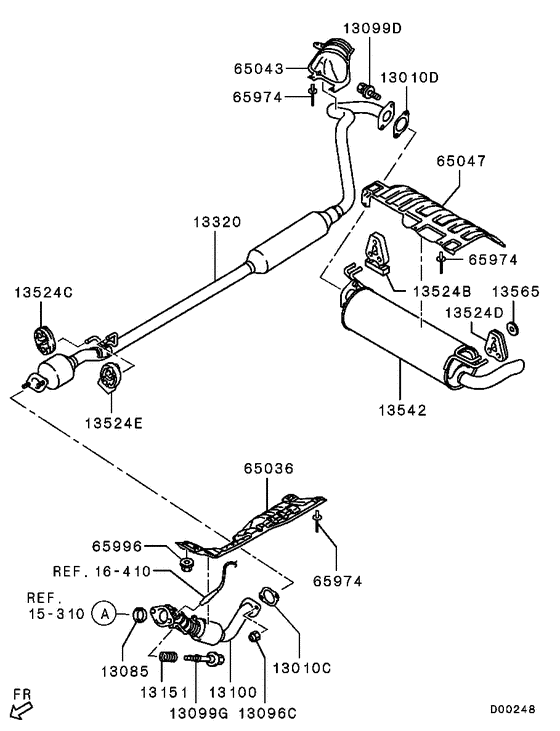

Exhaust pipe & muffler (ALL) Diagram Mitsubishi COLT PLUS
- Year
- 2005
- Sales region
- Japan
- Note
- 1.3 BLOOM-ED(MPI/4WD),CLM CVT
- drive
- 4WD/4WD
- transmission
- CVT
- grade
- 1.3 BLOOM-ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010C
|
13010C
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.64 |
||
|
13010D
|
13010D
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.64 |
||
|
13085
|
13085
MR571843 SEAL RING, EXHAUST PIPE |
MR571843 |
US $18.50 |
||
| replacement | |||||
|
13085
|
13085
MR571853 SEAL RING, EXHAUST PIPE |
MR571853 |
US $15.73 |
||
|
13096C
|
13096C
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13099D
|
13099D
MF241313 BOLT, T/F CASEWasher assembled,12x40 |
MF241313 |
from US $2.03 |
||
|
13099G
|
13099G
MR431025 BOLT, EXHAUST PIPEFlange |
MR431025 |
from US $2.54 |
||
|
13100
|
13100
MN178155 PIPE, EXHAUST, FR |
MN178155 |
US $971.15 |
||
|
13151
|
13151
MR431024 SPRING, EXHAUST FR PIPE CUSHION |
MR431024 |
from US $5.21 |
||
|
13320
|
13320
1570A488 PIPE, EXHAUST, CTR |
1570A488 |
US $990.08 |
||
|
13320
|
13320
MN178280 PIPE, EXHAUST, CTR |
MN178280 |
US $1,198.29 |
||
|
13524B
|
13524B
1577A024 HANGER, EXHAUST MUFFLER |
1577A024 |
US $24.42 |
||
|
13524C
|
13524C
MB906127 HANGER, EXHAUST MUFFLER |
MB906127 |
US $10.66 |
||
|
13524D
|
13524D
MN135157 HANGER, EXHAUST MUFFLER |
MN135157 |
from US $8.70 |
||
|
13524E
|
13524E
1577A023 HANGER, EXHAUST MUFFLER |
1577A023 |
US $19.98 |
||
|
13542
|
13542
MN178360 MUFFLER, EXHAUST MAIN |
MN178360 |
US $308.67 |
||
|
13565
|
13565
1577A055 STOPPER, EXHAUST MUFFLER HANGER BRACKET |
1577A055 |
US $1.92 |
||
|
65036
|
65036
MN170397 PROTECTOR, UNDER FR FLOOR HEAT |
MN170397 |
US $39.96 |
||
|
65043
|
65043
MN105840 PROTECTOR, UNDER FLOOR HEAT, CTR |
MN105840 |
US $22.20 |
||
|
65047
|
65047
MR964631 PROTECTOR, UNDER RR FLOOR HEAT |
MR964631 |
US $42.92 |
||
|
65974
|
65974
MU000202 RIVET, FLOOR HEAT PROTECTORRivet,40mm |
MU000202 |
from US $1.37 |
||
|
65996
|
65996
MU441003 NUT, FR BUMPERWasher assembled,6 |
MU441003 |
US $1.50 |
||
|
