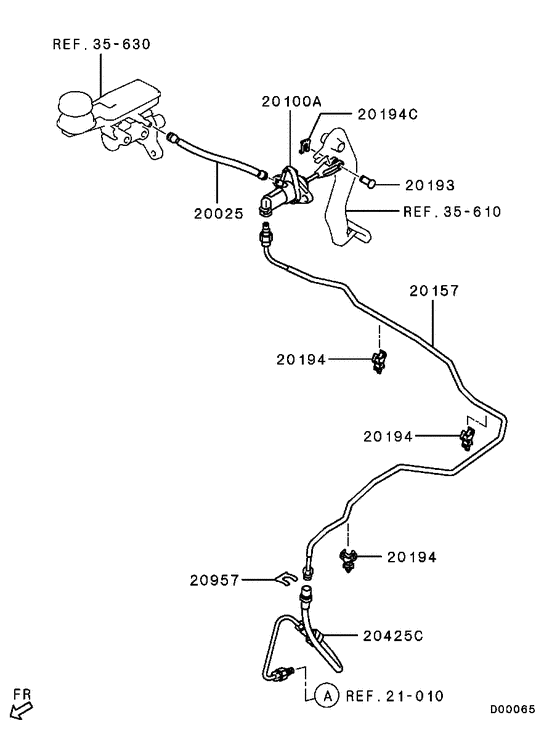

Clutch control Diagram Mitsubishi COLT PLUS
- Year
- 2006 - 2009
- Sales region
- Japan
- Note
- 1.5C(MPI/2WD),5FM/T
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- 1.5C
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20025
|
20025
4650A312 HOSE, CLUTCH FLUID RESERVOIR |
4650A312 |
US $2.96 |
||
|
20100A
|
20100A
MR594214 CYLINDER ASSY, CLUTCH MASTER |
MR594214 |
US $133.94 |
||
|
20157
|
20157
2348A090 TUBE, CLUTCH M/CYL |
2348A090 |
US $29.60 |
||
|
20193
|
20193
MR955890 PIN, CLUTCH M/CYL |
MR955890 |
US $4.24 |
||
|
20194
|
20194
MR568306 CLIP, A/C PIPING |
MR568306 |
US $3.42 |
||
|
20194C
|
20194C
MR955891 CLIP, CLUTCH M/CYL |
MR955891 |
US $4.92 |
||
|
20425C
|
20425C
2348A091 HOSE, CLUTCH RELEASE CYLINDER |
2348A091 |
US $97.68 |
||
|
20425C
|
20425C
2348A190 HOSE, CLUTCH RELEASE CYLINDER |
2348A190 |
US $80.66 |
||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
35 610
|
Brake & clutch pedal
35 610
|
||||
|
35 630
|
Brake master cylinder
35 630
|
||||
|
35 630
|
Brake master cylinder
35 630
|
||||
