	Description	OEM Part #	Price
87035	87035 MR568854 HOSE, A/C COMPRESSOR DISCHARGE	MR568854	—
87036	87036 MR568855 HOSE, A/C COMPRESSOR SUCTION	MR568855	—
87040	87040 MR568871 COVER, A/C EVAPORATOR	MR568871	—
87051	87051 MN164468 PIPE, A/C CONDENSER OUTLET	MN164468	—
87051	87051 MR568850 PIPE, A/C CONDENSER OUTLET	MR568850	—
87054	87054 MR568851 PIPE, A/C RECEIVER OUTLET	MR568851	—
87076	87076 MR306624 SWITCH, A/C REFRIGERANT PRESSURE	MR306624	—
87582	87582 MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
87585B	87585B MF477026 CLIP, FUEL LINE D=15	MF477026	US $2.52
87585B	87585B MS470918 CLIP, A/C PIPING	MS470918	US $3.11
87585C	87585C MR398939 CLIP, A/C PIPING	MR398939	from US $2.34
87586B	87586B MN108918 CLAMP, A/C PIPING	MN108918	—
87586C	87586C MR315925 CLAMP, A/C PIPING	MR315925	—
87588B	87588B MF243628 BOLT, CONNROD Washer assembled,6x25	MF243628	US $0.55
87588C	87588C MF243655 BOLT, ROCKER COVER Washer assembled,8x30	MF243655	from US $1.46
87588D	87588D MF243624 BOLT Washer assembled,6x16	MF243624	from US $0.96
87588D	87588D MS241186 BOLT, A/C PIPING	MS241186	US $1.48
87668B	87668B MB946605 O-RING, RR A/C 1/2	MB946605	from US $1.56
87668C	87668C MR568455 O-RING, A/C PIPING 1/2	MR568455	US $1.11
87668D	87668D MR117055 O-RING, A/C PIPING	MR117055	US $2.63
	replacement
87668D	87668D 9491420030 O-RING, A/C PIPING	9491420030	US $3.28
87668E	87668E MR146634 O-RING, A/C PIPING 5/8	MR146634	from US $0.92
87668F	87668F MR513495 O-RING, A/C PIPING	MR513495	US $1.62
87668G	87668G MR116978 O-RING, A/C PIPING 3/8	MR116978	US $0.84
55 010	Heater unit & piping 55 010
55 010	Heater unit & piping 55 010
55 010	Heater unit & piping 55 010

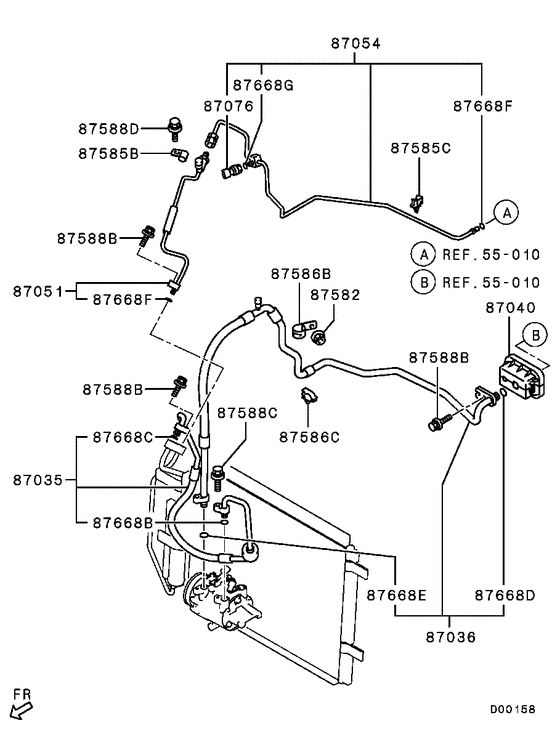

A/c condenser, piping (PIPING) Diagram Mitsubishi COLT PLUS Japan 7934879-629141

A/c condenser, piping (PIPING) Diagram Mitsubishi COLT PLUS Japan 7934879-629141
