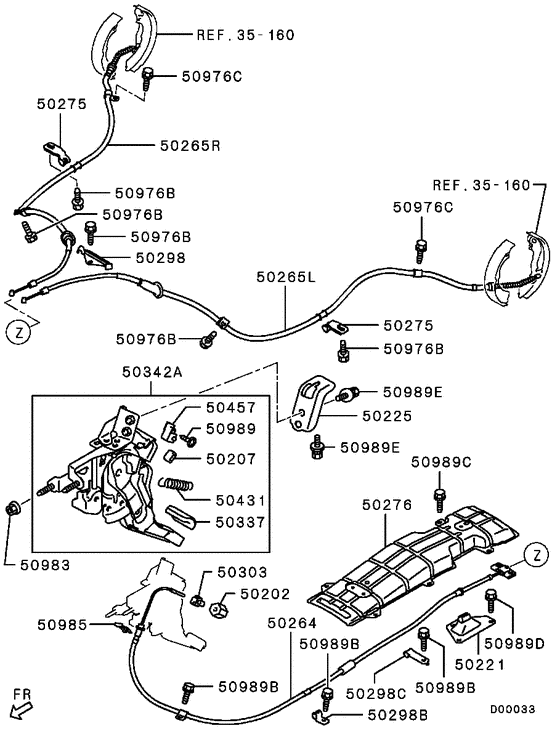

Parking brake control (ALL) Diagram Mitsubishi COLT PLUS
- Year
- 2002 - 2004
- Sales region
- Japan
- Note
- 1.5(MPI/2WD),CLM CVT
- drive
- 2WD/2WD
- transmission
- CVT
- grade
- 1.5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50202
|
50202
MB857445 ADJUSTER, PARKING BRAKE CABLE |
MB857445 |
US $1.48 |
||
|
50207
|
50207
MN102890 STOPPER, PARKING BRAKE PEDAL |
MN102890 |
US $1.78 |
||
|
50221
|
50221
MR569912 BRACKET, PARKING BRAKE CABLE |
MR569912 |
US $15.54 |
||
|
50225
|
50225
MR569914 BRACKET, PARKING BRAKE LEVER |
MR569914 |
US $13.32 |
||
|
50264
|
50264
4820A037 CABLE, PARKING BRAKE, FR |
4820A037 |
US $72.52 |
||
|
50264
|
50264
4820A125 CABLE, PARKING BRAKE, FR |
4820A125 |
US $47.36 |
||
|
50264
|
50264
MR569910 CABLE, PARKING BRAKE, FR |
MR569910 |
US $72.52 |
||
|
50265L
|
50265L
4820A117 CABLE, PARKING BRAKE, RR LH |
4820A117 |
US $59.94 |
||
|
50265L
|
50265L
MN116897 CABLE, PARKING BRAKE, RR LH |
MN116897 |
US $70.30 |
||
|
50265L
|
50265L
MR569919 CABLE, PARKING BRAKE, RR LH |
MR569919 |
US $97.68 |
||
|
50265R
|
50265R
4820A118 CABLE, PARKING BRAKE, RR RH |
4820A118 |
US $59.94 |
||
|
50265R
|
50265R
MN116898 CABLE, PARKING BRAKE, RR RH |
MN116898 |
US $70.30 |
||
|
50265R
|
50265R
MR569920 CABLE, PARKING BRAKE, RR RH |
MR569920 |
US $97.68 |
||
|
50275
|
50275
MR569921 CLIP, PARKING BRAKE CABLE |
MR569921 |
US $7.10 |
||
|
50276
|
50276
MN116896 COVER, PARKING BRAKE CABLE |
MN116896 |
US $27.38 |
||
|
50276
|
50276
MR569913 COVER, PARKING BRAKE CABLE |
MR569913 |
US $58.46 |
||
|
50298
|
50298
MR569922 CLAMP, PARKING BRAKE CABLE |
MR569922 |
US $5.18 |
||
|
50298B
|
50298B
MN102039 CLAMP, PARKING BRAKE CABLE |
MN102039 |
US $6.07 |
||
|
50298B
|
50298B
MN116522 CLAMP, PARKING BRAKE CABLE |
MN116522 |
US $6.22 |
||
|
50298C
|
50298C
MN102040 CLAMP, PARKING BRAKE CABLE |
MN102040 |
US $6.36 |
||
|
50303
|
50303
MB857444 HOLDER, PARKING BRAKE CABLE ADJUSTER |
MB857444 |
US $3.11 |
||
|
50337
|
50337
MR955633 PAD, PARKING BRAKE PEDAL |
MR955633 |
US $7.10 |
||
|
50342A
|
50342A
MR569909 PEDAL ASSY, PARKING BRAKE |
MR569909 |
US $164.28 |
||
|
50431
|
50431
MR493040 SPRING, PARKING BRAKE PEDAL RETURN |
MR493040 |
US $3.11 |
||
|
50457
|
50457
MN102888 SWITCH, PARKING BRAKE |
MN102888 |
US $7.70 |
||
|
50976B
|
50976B
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
50976C
|
50976C
MS240086 BOLT, ENG FR MOUNTINGWasher assembled,8x25 |
MS240086 |
US $3.28 |
||
|
50983
|
50983
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
50985
|
50985
MR493020 CLIP, PARKING BRAKE LEVER |
MR493020 |
US $1.63 |
||
|
50989
|
50989
MN102889 BOLT, PARKING BRAKE LEVERW/washer |
MN102889 |
US $1.78 |
||
|
50989B
|
50989B
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
50989C
|
50989C
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
50989D
|
50989D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
50989E
|
50989E
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
35 160
|
Rear wheel brake
35 160
|
||||
