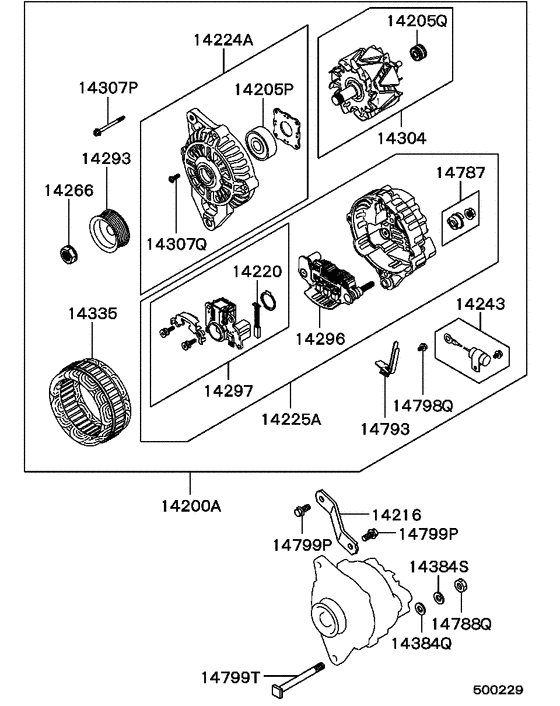

Alternator & vacuum pump (9609.3-) Diagram Mitsubishi DEBONAIR
- Year
- 1992 - 1999
- Sales region
- Japan
- Note
- EXECUTIVE-2(LPG),4FA/T
- transmission
- 4FA/T
- grade
- EXECUTIVE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14200A
|
14200A
MD196858 ALTERNATOR ASSY120a |
MD196858 |
US $1,249.25 |
||
|
14200A
|
14200A
MD198648 ALTERNATOR ASSY110a |
MD198648 |
US $1,249.25 |
||
|
14200A
|
14200A
MD344487 ALTERNATOR ASSY120a |
MD344487 |
US $1,338.06 |
||
|
14200A
|
14200A
MD354792 ALTERNATOR ASSY120a |
MD354792 |
US $1,338.06 |
||
|
14205P
|
14205P
MD618630
BEARING, ALTERNATOR ROTOR
|
MD618630 |
— | ||
| replacements | |||||
|
14205P
|
14205P
1800A028 BEARING, ALTERNATOR ROTOR |
1800A028 |
US $15.83 |
||
|
14205P
|
14205P
S930P80570 BEARING, ALTERNATOR ROTOR |
S930P80570 |
US $21.89 |
||
|
14205Q
|
14205Q
MD611928 BEARING, ALTERNATOR ROTOR |
MD611928 |
US $11.91 |
||
| replacement | |||||
|
14205Q
|
14205Q
S930P63670
Подшипник генератора
|
S930P63670 |
— | ||
|
14216
|
14216
MD120483 BRACE, ALTERNATOR ADJUSTING |
MD120483 |
US $11.10 |
||
|
14220
|
14220
MD618689 BRUSH, ALTERNATOR |
MD618689 |
US $11.70 |
||
| replacement | |||||
|
14220
|
14220
A647X50870
Brush,alternator
|
A647X50870 |
— | ||
|
14224A
|
14224A
MD618802 BRACKET ASSY, ALTERNATOR, FR |
MD618802 |
US $142.82 |
||
|
14225A
|
14225A
MD619570
BRACKET ASSY, ALTERNATOR, RR
|
MD619570 |
— | ||
|
14243
|
14243
MD619485
CONDENSER, ALTERNATOR
|
MD619485 |
— | ||
|
14266
|
14266
MD618927
NUT KIT, ALTERNATOR PULLEY
|
MD618927 |
— | ||
|
14293
|
14293
MD618817
PULLEY, ALTERNATOR
|
MD618817 |
— | ||
| replacement | |||||
|
14293
|
14293
A630C83470 Шкив генератора |
A630C83470 |
US $36.94 |
||
|
14296
|
14296
MD619280
RECTIFIER, ALTERNATOR
|
MD619280 |
— | ||
|
14297
|
14297
MD619538
REGULATOR, ALTERNATOR
|
MD619538 |
— | ||
|
14297
|
14297
MD619822
REGULATOR, ALTERNATOR
|
MD619822 |
— | ||
|
14304
|
14304
MD618822
ROTOR KIT, ALTERNATOR
|
MD618822 |
— | ||
|
14307P
|
14307P
MD611556 SCREW SET, ALTERNATOR INR |
MD611556 |
US $4.50 |
||
|
14307Q
|
14307Q
MD611558 SCREW SET, ALTERNATOR INR |
MD611558 |
US $3.84 |
||
|
14335
|
14335
MD618819
STATOR, ALTERNATOR
|
MD618819 |
— | ||
|
14384Q
|
14384Q
MS450036 WASHER, EXHAUST MANIFOLDPlain,10 |
MS450036 |
US $4.24 |
||
|
14384S
|
14384S
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
14787
|
14787
MD618749
NUT, ALTERNATOR INR
|
MD618749 |
— | ||
|
14788Q
|
14788Q
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
14788Q
|
14788Q
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
14793
|
14793
MD112301 CLIP, ALTERNATOR INR |
MD112301 |
US $19.24 |
||
|
14798Q
|
14798Q
MD611346 BOLT, ALTERNATOR INR |
MD611346 |
US $1.48 |
||
|
14799P
|
14799P
MF140224 BOLT, ENG MOUNTINGFlange,8x18 |
MF140224 |
from US $0.92 |
||
|
14799T
|
14799T
MD191583 BOLT, ALTERNATOR10x100 |
MD191583 |
US $4.59 |
||
|
14799T
|
14799T
MD196853 BOLT, ALTERNATOR10x100 |
MD196853 |
US $6.36 |
||
