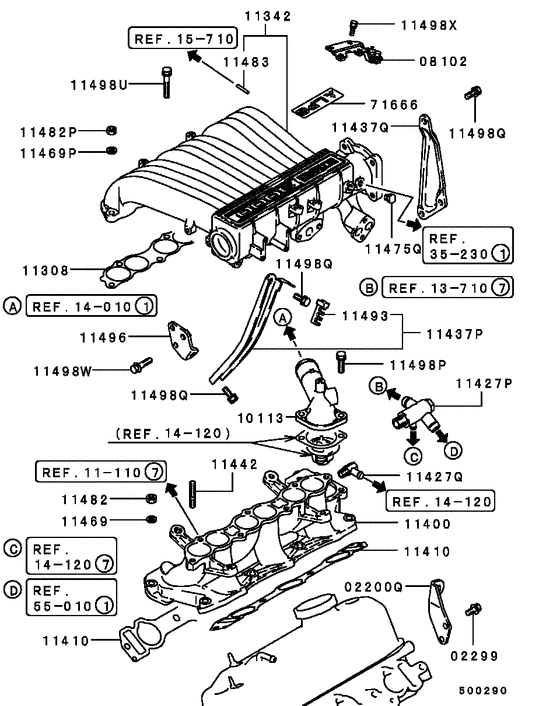

Inlet manifold (LPG) Diagram Mitsubishi DEBONAIR
- Year
- 1992 - 1999
- Sales region
- Japan
- Note
- EXECUTIVE-2(LPG),4FA/T
- transmission
- 4FA/T
- grade
- EXECUTIVE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MD107317 ENGINE HANGER |
MD107317 |
US $20.72 |
||
|
02299
|
02299
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
08102
|
08102
MD175399 BRACKET, ACCEL CABLE |
MD175399 |
US $10.66 |
||
|
10113
|
10113
MD160133
FITTING, COOLING WATER OUTLET HOSE
|
MD160133 |
— | ||
|
11308
|
11308
MD149539 GASKET, ENG AIR INTAKE SURGE TANK |
MD149539 |
from US $10.71 |
||
|
11342
|
11342
MD159795 TANK, ENG AIR INTAKE SURGE |
MD159795 |
US $1,348.26 |
||
|
11342
|
11342
MD303723 TANK, ENG AIR INTAKE SURGE |
MD303723 |
US $1,468.80 |
||
|
11400
|
11400
MD175393 MANIFOLD, INLET |
MD175393 |
US $710.53 |
||
|
11410
|
11410
MD154025
GASKET, INLET MANIFOLD
|
MD154025 |
— | ||
| replacement | |||||
|
11410
|
11410
MD168419 GASKET, INLET MANIFOLD |
MD168419 |
from US $23.46 |
||
|
11427P
|
11427P
MD128432 JOINT, INLET MANIFOLD |
MD128432 |
US $40.70 |
||
|
11427Q
|
11427Q
MD081379 JOINT, INLET MANIFOLD10 |
MD081379 |
US $13.32 |
||
|
11437P
|
11437P
MD157029 STAY, INLET MANIFOLD |
MD157029 |
US $36.26 |
||
|
11437Q
|
11437Q
MD149841 STAY, INLET MANIFOLD |
MD149841 |
US $41.44 |
||
|
11442
|
11442
MS401328 STUD, INLET MANIFOLD8x28 |
MS401328 |
US $3.85 |
||
|
11442
|
11442
MS401927 STUD, INLET MANIFOLD8x25 |
MS401927 |
US $2.52 |
||
|
11469
|
11469
MF450435 WASHER, INLET MANIFOLDSpring,8 |
MF450435 |
US $1.48 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11469P
|
11469P
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11475Q
|
11475Q
MD014929 PLUG, CYLINDER HEADTaper,1/8 |
MD014929 |
US $3.28 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11482P
|
11482P
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11493
|
11493
MD017652 CLAMP, ROCKER COVER |
MD017652 |
US $2.05 |
||
|
11496
|
11496
MD149842 BRACKET, INLET MANIFOLD |
MD149842 |
US $28.86 |
||
|
11498P
|
11498P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
11498P
|
11498P
MF241855 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241855 |
US $3.01 |
||
|
11498Q
|
11498Q
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498Q
|
11498Q
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498U
|
11498U
MF241262 BOLT, ENG RH COVERWasher assembled,8x45 |
MF241262 |
US $4.10 |
||
|
11498U
|
11498U
MF241862
BOLT, INLET MANIFOLD
|
MF241862 |
— | ||
|
11498W
|
11498W
MF140229 BOLT, CYLINDER BLOCKFlange,8x30 |
MF140229 |
from US $1.11 |
||
|
11498X
|
11498X
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
71666
|
71666
MD175411 LABEL, SURGE TANK MARK |
MD175411 |
US $9.18 |
||
|
