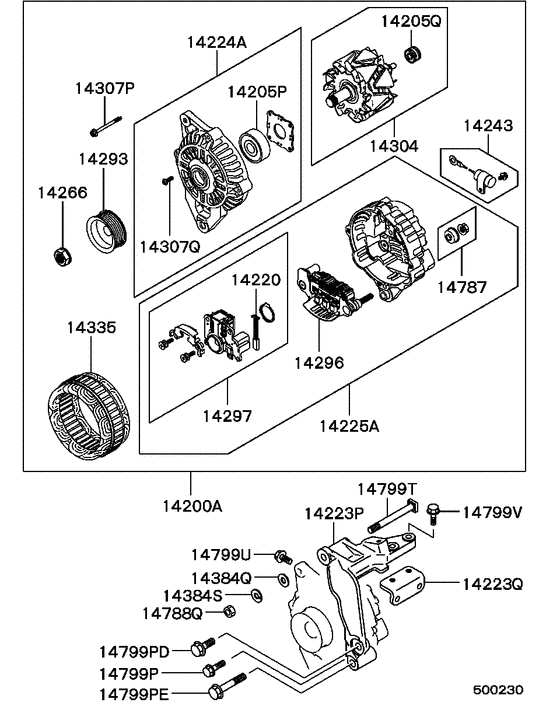

Alternator & vacuum pump (9609.3-) Diagram Mitsubishi DEBONAIR
- Year
- 1995 - 1999
- Sales region
- Japan
- Note
- CONTEGA(DOHC),4FA/T
- transmission
- 4FA/T
- grade
- CONTEGA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14200A
|
14200A
MD196857
ALTERNATOR ASSY
|
MD196857 |
— | ||
|
14200A
|
14200A
MD344486 ALTERNATOR ASSY120a |
MD344486 |
US $1,338.06 |
||
|
14200A
|
14200A
MD354791 ALTERNATOR ASSY120a |
MD354791 |
US $1,338.06 |
||
|
14205P
|
14205P
MD618630
BEARING, ALTERNATOR ROTOR
|
MD618630 |
— | ||
| replacements | |||||
|
14205P
|
14205P
1800A028 BEARING, ALTERNATOR ROTOR |
1800A028 |
US $15.83 |
||
|
14205P
|
14205P
S930P80570 BEARING, ALTERNATOR ROTOR |
S930P80570 |
US $21.89 |
||
|
14205Q
|
14205Q
MD611928 BEARING, ALTERNATOR ROTOR |
MD611928 |
US $11.91 |
||
| replacement | |||||
|
14205Q
|
14205Q
S930P63670
Подшипник генератора
|
S930P63670 |
— | ||
|
14220
|
14220
MD618689 BRUSH, ALTERNATOR |
MD618689 |
US $11.70 |
||
| replacement | |||||
|
14220
|
14220
A647X50870
Brush,alternator
|
A647X50870 |
— | ||
|
14223P
|
14223P
MD191579
BRACKET, ALTERNATOR MOUNTING
|
MD191579 |
— | ||
|
14223Q
|
14223Q
MD158584 BRACKET, ALTERNATOR MOUNTING |
MD158584 |
US $48.84 |
||
|
14224A
|
14224A
MD618802 BRACKET ASSY, ALTERNATOR, FR |
MD618802 |
US $142.82 |
||
|
14225A
|
14225A
MD618805
BRACKET ASSY, ALTERNATOR, RR
|
MD618805 |
— | ||
|
14243
|
14243
MD619484
CONDENSER, ALTERNATOR
|
MD619484 |
— | ||
|
14266
|
14266
MD618587
NUT KIT, ALTERNATOR PULLEY
|
MD618587 |
— | ||
|
14266
|
14266
MD618927
NUT KIT, ALTERNATOR PULLEY
|
MD618927 |
— | ||
|
14293
|
14293
MD618829
PULLEY, ALTERNATOR
|
MD618829 |
— | ||
| replacement | |||||
|
14293
|
14293
1800A171
PULLEY, ALTERNATOR
|
1800A171 |
— | ||
|
14296
|
14296
MD618806
RECTIFIER, ALTERNATOR
|
MD618806 |
— | ||
|
14296
|
14296
MD619280
RECTIFIER, ALTERNATOR
|
MD619280 |
— | ||
|
14297
|
14297
MD618696
REGULATOR, ALTERNATOR
|
MD618696 |
— | ||
|
14297
|
14297
MD619538
REGULATOR, ALTERNATOR
|
MD619538 |
— | ||
|
14297
|
14297
MD619822
REGULATOR, ALTERNATOR
|
MD619822 |
— | ||
|
14304
|
14304
MD618822
ROTOR KIT, ALTERNATOR
|
MD618822 |
— | ||
|
14307P
|
14307P
MD611556 SCREW SET, ALTERNATOR INR |
MD611556 |
US $4.50 |
||
|
14307Q
|
14307Q
MD611558 SCREW SET, ALTERNATOR INR |
MD611558 |
US $3.84 |
||
|
14335
|
14335
MD618819
STATOR, ALTERNATOR
|
MD618819 |
— | ||
|
14384Q
|
14384Q
MS450036 WASHER, EXHAUST MANIFOLDPlain,10 |
MS450036 |
US $4.24 |
||
|
14384S
|
14384S
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
14787
|
14787
MD618807
NUT, ALTERNATOR INR
|
MD618807 |
— | ||
|
14788Q
|
14788Q
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
14799P
|
14799P
MF140759 BOLT, ALTERNATORFlange,8x30 |
MF140759 |
US $3.01 |
||
|
14799PD
|
14799PD
MD161896
BOLT, ALTERNATOR
|
MD161896 |
— | ||
|
14799PE
|
14799PE
MF140800
BOLT, ALTERNATOR
|
MF140800 |
— | ||
|
14799T
|
14799T
MD196853 BOLT, ALTERNATOR10x100 |
MD196853 |
US $6.36 |
||
|
14799U
|
14799U
MF140755 BOLT, T/CFlange,8x20 |
MF140755 |
US $2.46 |
||
|
14799V
|
14799V
MF140757
BOLT, ALTERNATOR
|
MF140757 |
— | ||
