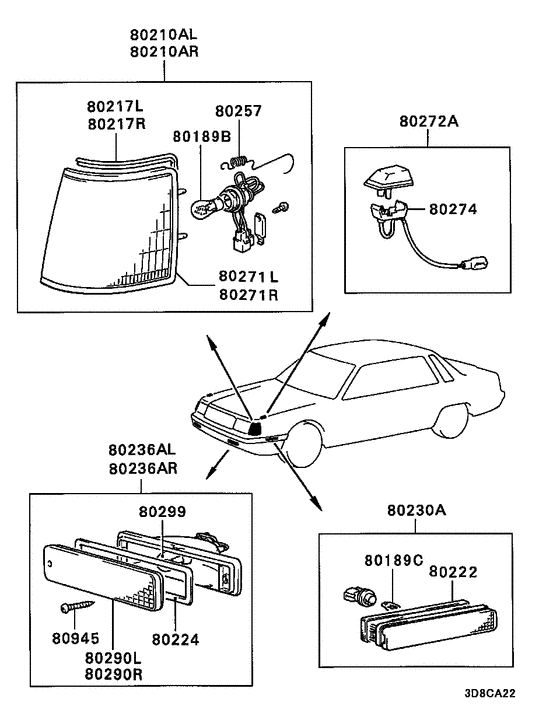

Front exterior lamp Diagram Mitsubishi DEBONAIR V
- Year
- 1987 - 1992
- Sales region
- Japan
- Note
- LG(HIRE),4CA/T
- transmission
- 4CA/T
- grade
- LG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80189B
|
80189B
MS820086 BULB, FR LAMP12v-5w |
MS820086 |
US $4 |
||
|
80189B
|
80189B
MU820002 BULB, FR LAMP12v-21/5w |
MU820002 |
US $5.33 |
||
|
80189C
|
80189C
MS820087
BULB, HEADLAMP
|
MS820087 |
— | ||
| replacement | |||||
|
80189C
|
80189C
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80210AL
|
80210AL
MB398951 LAMP ASSY, COMBINATION, FR LH12v-5w |
MB398951 |
US $261.96 |
||
|
80210AL
|
80210AL
MB398953 LAMP ASSY, COMBINATION, FR LH12v-21/5w |
MB398953 |
US $263.44 |
||
|
80210AR
|
80210AR
MB398952 LAMP ASSY, COMBINATION, FR RH12v-5w |
MB398952 |
US $261.96 |
||
|
80210AR
|
80210AR
MB398954 LAMP ASSY, COMBINATION, FR RH12v-21/5w |
MB398954 |
US $263.44 |
||
|
80217L
|
80217L
MB488057 GASKET, FR COMBINATION LAMP, LH |
MB488057 |
US $18.50 |
||
|
80217R
|
80217R
MB488058 GASKET, FR COMBINATION LAMP, RH |
MB488058 |
US $18.50 |
||
|
80222
|
80222
MB541179 GASKET, FR SIDE TURN SIGNAL LAMP |
MB541179 |
US $5.92 |
||
|
80224
|
80224
MB488041 GASKET, FR TURN SIGNAL LAMP |
MB488041 |
US $5.03 |
||
|
80230A
|
80230A
MB398931 LAMP ASSY, SIDE TURN SIGNAL, FR12v-5w |
MB398931 |
US $113.22 |
||
|
80236AL
|
80236AL
MB398921 LAMP ASSY, TURN SIGNAL, FR LH12v-21w |
MB398921 |
US $113.22 |
||
|
80236AL
|
80236AL
MB572307 LAMP ASSY, TURN SIGNAL, FR LH12v-21w |
MB572307 |
US $113.22 |
||
|
80236AR
|
80236AR
MB398922 LAMP ASSY, TURN SIGNAL, FR RH12v-21w |
MB398922 |
US $113.22 |
||
|
80236AR
|
80236AR
MB572308 LAMP ASSY, TURN SIGNAL, FR RH12v-21w |
MB572308 |
US $113.22 |
||
|
80257
|
80257
MB488060 SPRING, FR COMBINATION LAMP |
MB488060 |
US $8.44 |
||
|
80271L
|
80271L
MB488065 LAMP UNIT, COMBINATION, FR LH |
MB488065 |
US $205.72 |
||
|
80271L
|
80271L
MB488067 LAMP UNIT, COMBINATION, FR LH |
MB488067 |
US $210.16 |
||
|
80271R
|
80271R
MB488066 LAMP UNIT, COMBINATION, FR RH |
MB488066 |
US $205.72 |
||
|
80271R
|
80271R
MB488068 LAMP UNIT, COMBINATION, FR RH |
MB488068 |
US $210.16 |
||
|
80272A
|
80272A
MB414739 LAMP ASSY, FENDER MARKER |
MB414739 |
US $79.18 |
||
|
80274
|
80274
MB488032 CABLE, FENDER MARKER LAMP |
MB488032 |
US $31.08 |
||
|
80290L
|
80290L
MB488037 LENS, FR TURN SIGNAL LAMP, LH |
MB488037 |
US $11.40 |
||
|
80290R
|
80290R
MB488038 LENS, FR TURN SIGNAL LAMP, RH |
MB488038 |
US $11.40 |
||
|
80299
|
80299
MS820044
BULB, RR END PANEL GARNISH
|
MS820044 |
— | ||
| replacement | |||||
|
80299
|
80299
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80945
|
80945
MB286372 SCREW, LICENSE PLATE LAMPTapping,4x30 |
MB286372 |
US $4.14 |
||
