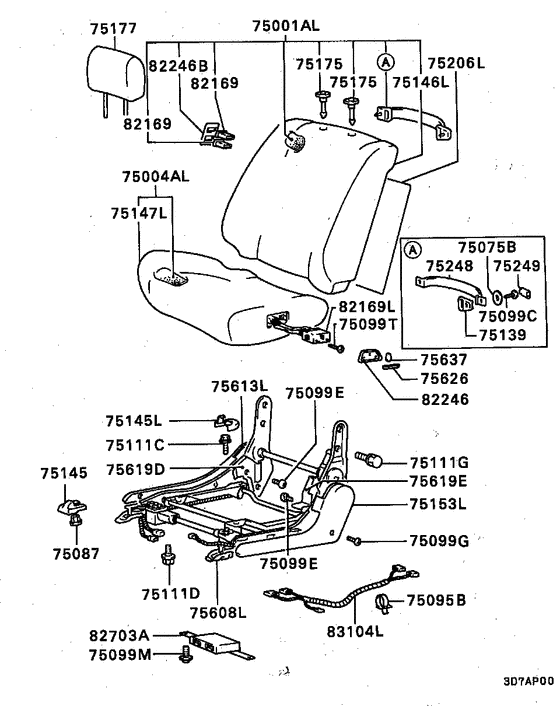

Front seat (LH..4WAY POWER SEAT) Diagram Mitsubishi DEBONAIR V
- Year
- 1987 - 1992
- Sales region
- Japan
- Note
- LG(HIRE),4CA/T
- transmission
- 4CA/T
- grade
- LG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB729045 BACK ASSY, FR SEAT, LH |
MB729045 |
US $1,399.22 |
||
|
75001AL
|
75001AL
MB754234 BACK ASSY, FR SEAT, LH |
MB754234 |
US $1,399.22 |
||
|
75004AL
|
75004AL
MB727194 CUSHION ASSY, FR SEAT, LH |
MB727194 |
US $969.70 |
||
|
75004AL
|
75004AL
MB754214 CUSHION ASSY, FR SEAT, LH |
MB754214 |
US $969.70 |
||
|
75075B
|
75075B
MS450033 WASHER, FUEL LINEPlain,5 |
MS450033 |
US $1.63 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75099C
|
75099C
MF205028 SCREW, ASSIST GRIPMachine cone point,5x20 |
MF205028 |
US $2.07 |
||
|
75099E
|
75099E
MF453019 SCREW, STEERING COLUMN COVERTapping,4x16 |
MF453019 |
from US $1.74 |
||
|
75099G
|
75099G
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099M
|
75099M
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
75099T
|
75099T
MF455375 SCREW, STEERING COLUMN COVERTapping,4x8 |
MF455375 |
US $2.60 |
||
|
75111C
|
75111C
MB342638 BOLT, FR SEATWasher assembled,10x22 |
MB342638 |
US $3.85 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75111G
|
75111G
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $1.15 |
||
|
75139
|
75139
MB475748 BASE, FR DOOR ASSIST GRIP |
MB475748 |
US $7.99 |
||
|
75145
|
75145
MB703183 COVER, FR SEAT ANCHOR |
MB703183 |
US $5.48 |
||
|
75145L
|
75145L
MB725358 COVER, FR SEAT ANCHOR, RR LH |
MB725358 |
US $8.73 |
||
|
75146L
|
75146L
MB727238 COVER, FR SEAT BACK, LH |
MB727238 |
US $723.63 |
||
|
75146L
|
75146L
MB754250 COVER, FR SEAT BACK, LH |
MB754250 |
US $723.63 |
||
|
75147L
|
75147L
MB727200 COVER, FR SEAT CUSHION, LH |
MB727200 |
US $499.41 |
||
|
75147L
|
75147L
MB754219 COVER, FR SEAT CUSHION, LH |
MB754219 |
US $499.41 |
||
|
75153L
|
75153L
MB713361 COVER, FR SEAT SIDE SHIELD, LH |
MB713361 |
US $25.16 |
||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75177
|
75177
MB490260 HEADREST, FR SEAT |
MB490260 |
US $254.56 |
||
|
75248
|
75248
MB703131 GRIP, FR SEAT BACK |
MB703131 |
US $88.80 |
||
|
75249
|
75249
MB477196 CAP, FR DOOR ASSIST GRIP |
MB477196 |
US $5.03 |
